Pure L[H] and C[F] can be converted into |Z|[] by the following expression:
|Z|[] = 2 × × Frequency[Hz] × L[H]
|Z|[] = 1 / (2 × × Frequency[Hz] × C[F])
Approximate value can be read from the following graph.

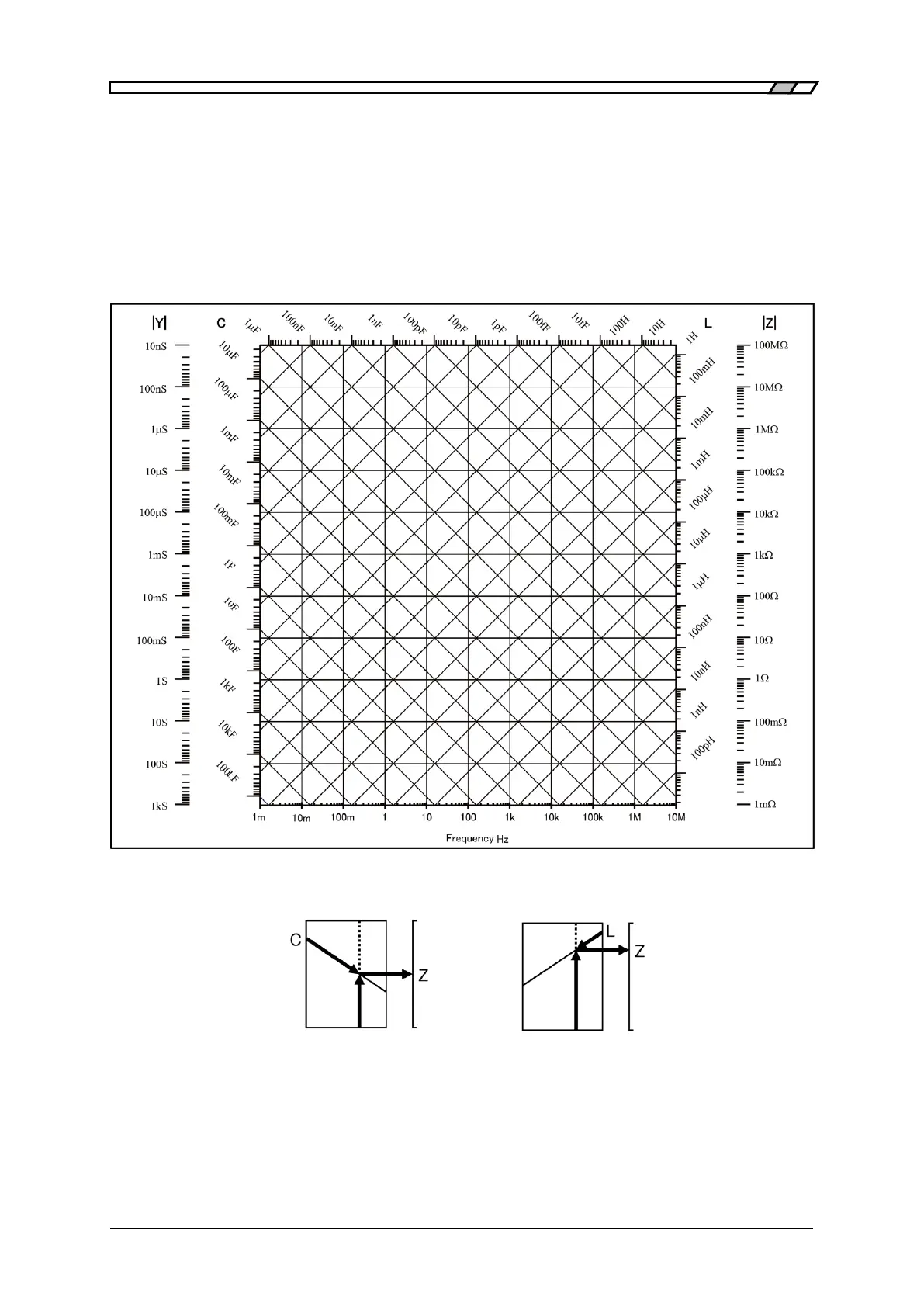

Figure 7-2 LC - Z conversion graph
Frequency
Frequency
