2.2 Installation
2-8 ZM2376

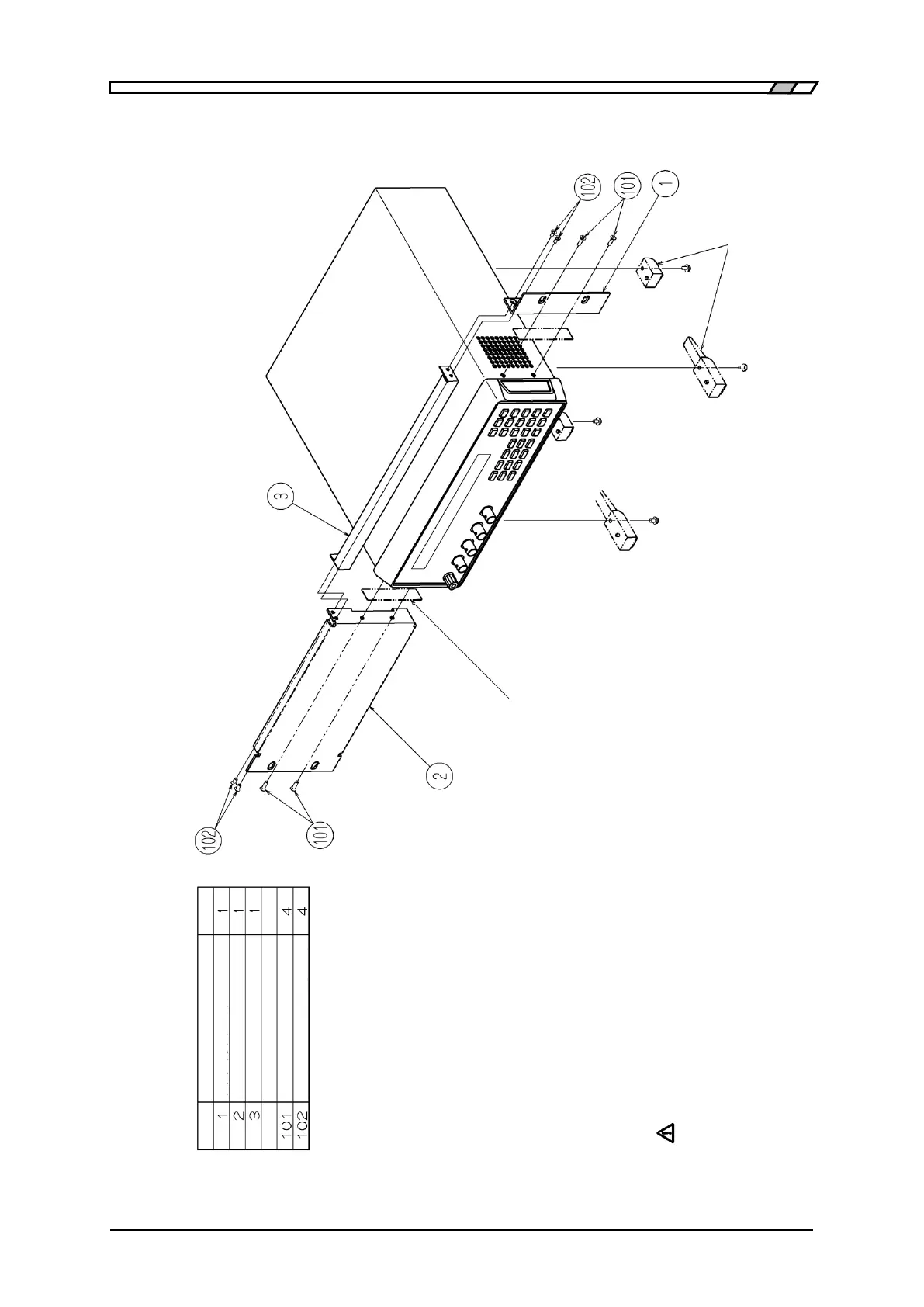

Figure 2-1 Rack-mount assembly (mm-rack)
Remove four feet.
Remove label on the side face of body.
Part No.
Part name
Q’ty.
Rack
-mount R
Rack
-mount
L
Panel spacer
Countersunk screw
M3 × 10
Countersunk screw
M3 × 06
Caution When mounting on the rack, install angles or shelf on the rack to support the body. Do not hold the device by the rack
-mount metal fittings only.
Do not use the remo
ved feet, screws, and label.
