2.2 Installation
2-9 ZM2376

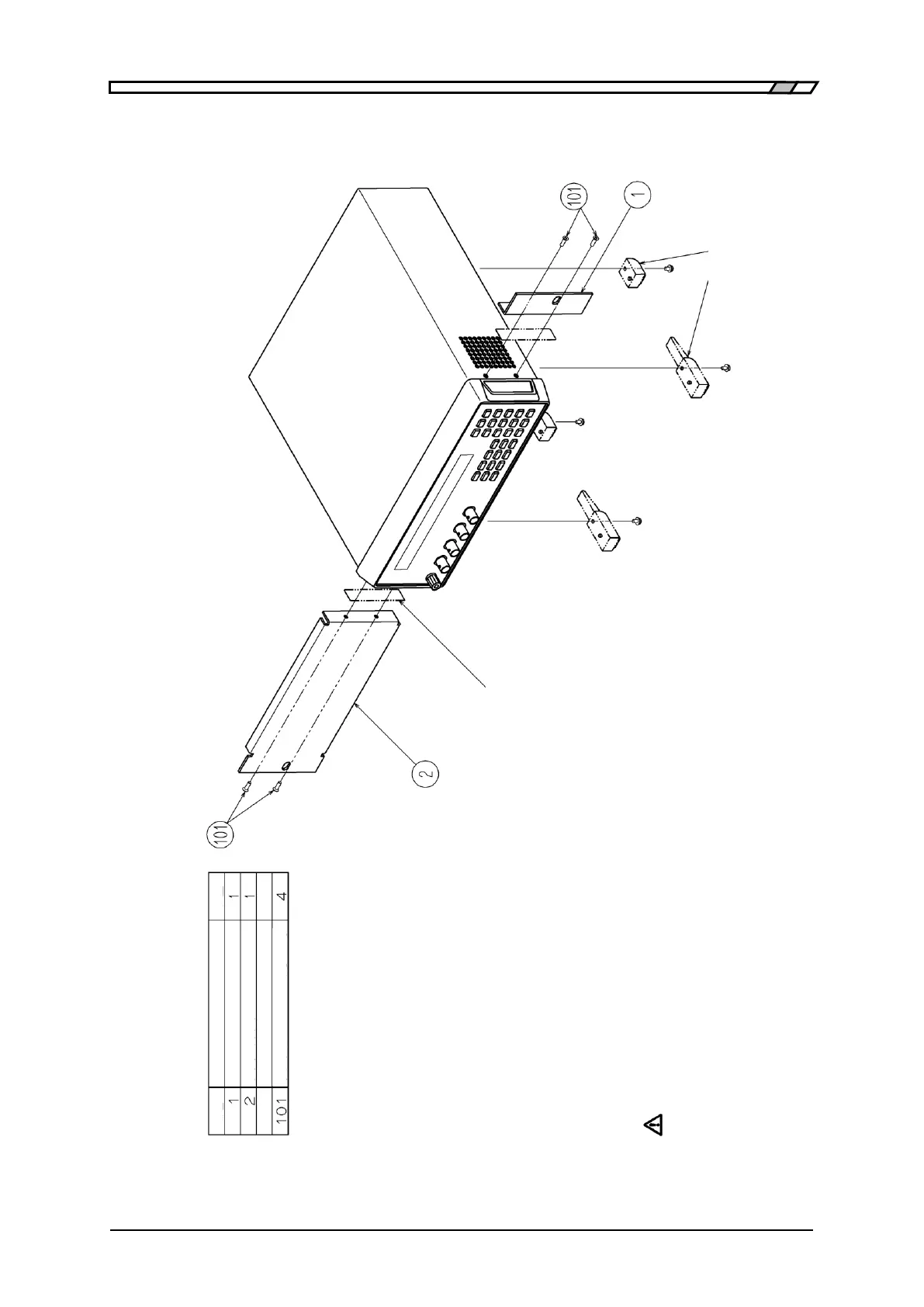

Figure 2-2 Rack-mount assembly (inch-rack)
Remove four feet.
Remove label on the side face of body.
Caution When mounting on the rack, install angles or shelf on the rack to support the body. Do not hold the device by the rack
-mount metal fittings only.
Do not use the removed feet, screws, and label.
Rack
-mount R
Rack
-mount
L
Part No.
Part name
Q’ty.
Countersunk screw
M3 × 10
