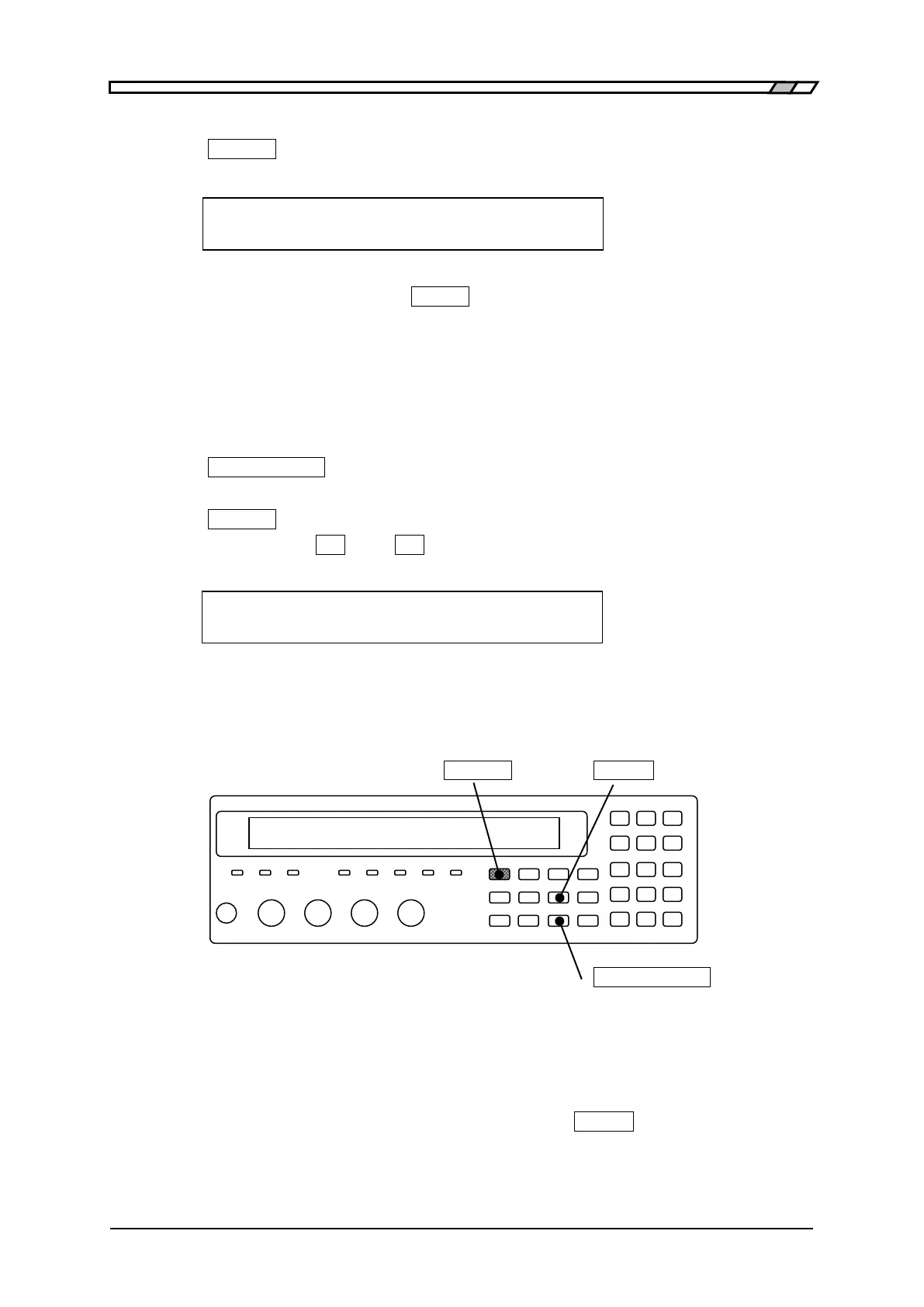

3.5 Basic Operations
3-26 ZM2376
Trigger source
Press the _SHIFT_
+ [TRIG MODE] keys to display the trigger setting menu (see below), and set
the trigger source with a numeric key.
TRIG SRC:Ext Delay=99.0000s SRC Sync=ON Current setting
0)Int 1)Man 2)Ext 3)Bus 4)Delay 5)S.Sync Options
Int Internal. Automatic repetitive measurement (default value)
Man Manual. Press the
_TRIG_
key on the front panel to trigger the measurement.
Ext External. The trigger signal of handler interface is used to trigger the
measurement.
Bus Remote control
Measurement range
The default setting is automatic selection.
Press the _AUTO/HOLD_
key to switch between Automatic selection (Auto) and Manual
selection (Hold).
Press the _SHIFT_
+ [RANGE] keys to display the measurement range setting menu (see below),
and press a numeric key (_0_
key or _1_
key) to change the measurement range manually. The
range is held (manual selection).
RANGE : Manual 1kΩ Rd : 25Ω-1 Current setting
0)DOWN 1)UP 100mΩ to 1MΩ 2)Rd-min Options
When a measurement range value is large, it is approximate the lower limit of measurement range,
or when a value is small, it is approximate the upper limit of measurement range.
For details “Table 3-2 Measurement range list’’
_SHIFT_ _TRIG_ | [TRIG MODE]
_AUTO/HOLD_ | [RANGE]
Connection of DUT and measurement
Connection of DUT
Connect the LCR meter to the DUT by referring to “3.4 Connection of DUT”.
Manual trigger
When you set the trigger source to Manual (Man) and press the _TRIG_
key, the trigger signal is
applied and the measurement is executed once.
