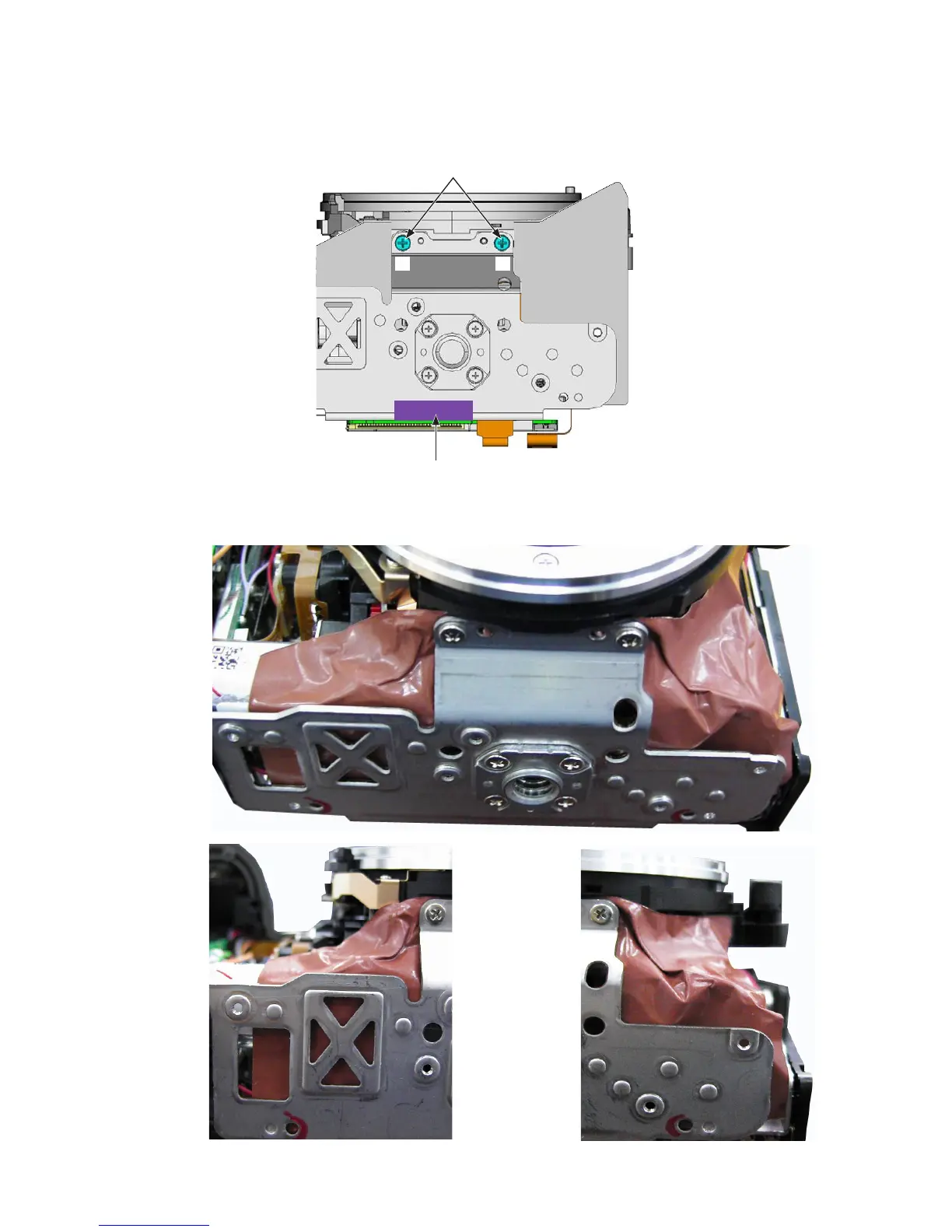

Mount the bottom plate unit on the front body, and tighten the two screws (#647) in the numeric order
from
①
to
②
.
Attach the heat-radiating sheet of the image sensor unit (#B3051) to the bottom plate unit.
•
•
Attach the shield sheet (#65) to the front body unit as below.•
