Chapter 17 Differences in Operation Depending on DS Camera Head Models
247
Other
Information

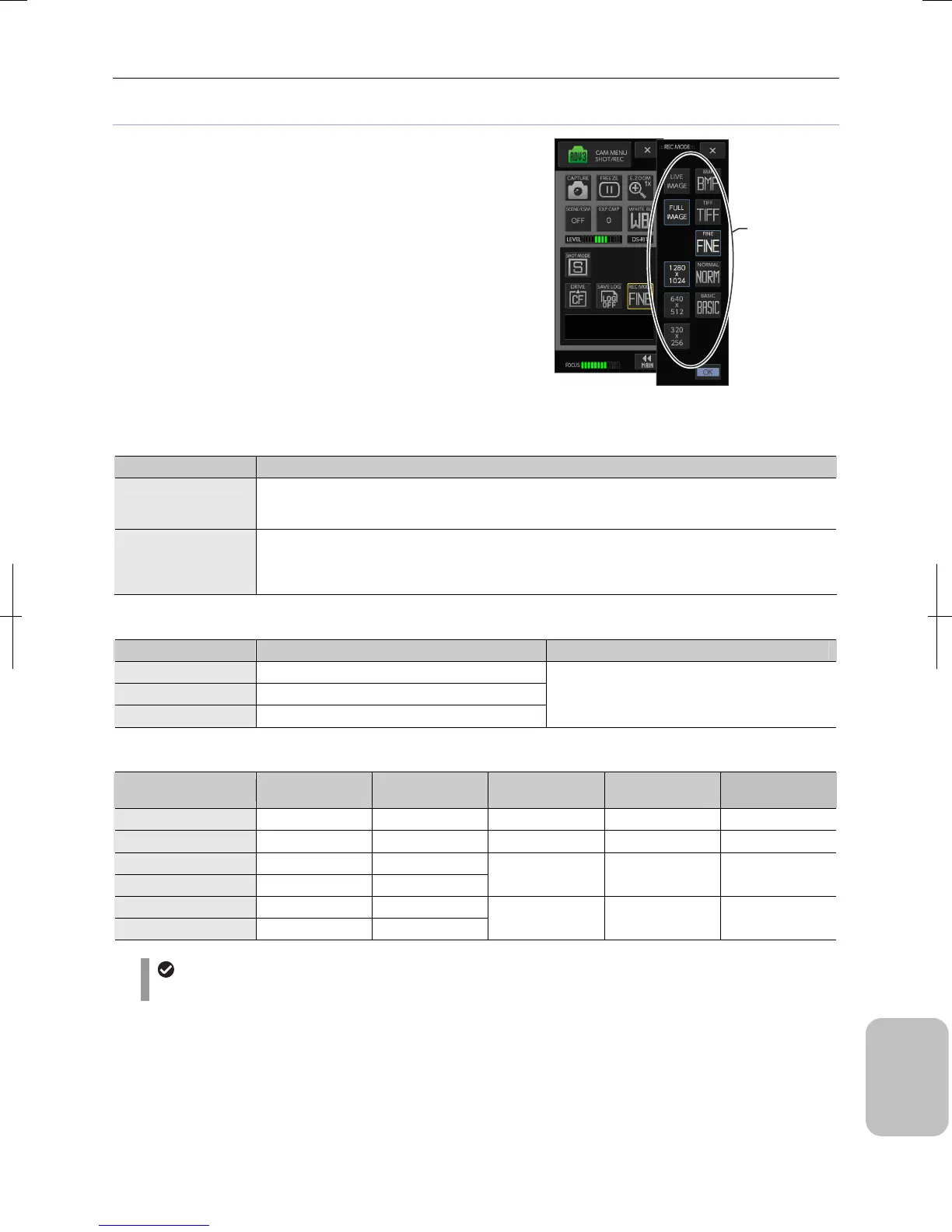

Setting recording mode when DS-Ri1 is used
Image source, image size, and file type to be stored when an
image is captured are set with the [REC MODE] submenu of the
[CAM MENU: SHOT/REC] screen.
• Image source:
Select live image or full image as an image to be captured.
• Image size:
Selectable sizes are displayed in the buttons according to
image mode and image source.
• File type:
Select the type of image to be stored. The capacity of image
file to be stored varies depending on image size and file type
settings.
Note: For details of setting items, see the table below.
Setting Recording Mode (DS-Ri1)
Selection of Image Source (Live Image and Full Image)
Choice Setting
Live Image
An image is recorded based on the live image on the monitor when the image is captured. Image
resolution varies depending on the image size setting, but the image on the monitor is recorded as it is
in principle.
Full Image
An image is recorded based on the image pickup device output when the image is captured. When
[ROI] image mode is selected, image size on the monitor is small. However, if the recording mode is set
to [FULL], a high-definition image can be recorded based on the output of all pixels of the image pickup
device when the image is captured.
Image Size Setting
Image Mode Image Size (Live Image) Image Size (Full Image)
FULL 1280 x 1024, 640 x 512, 320 x 256
ROI-L 1280 x 720
ROI-S 640 x 480, 320 x 240
1280 x 1024, 640 x 512, 320 x 256
File Size of Each File Type
Image Size BMP Format TIFF Format
JPEG Format
FINE
JPEG Format
NORMAL
JPEG Format
BASIC
1280 x 1024 3.8 MB 3.8 MB 1.2 MB 560 kB 375 kB
1280 x 720 2.7 MB 2.7 MB 860 kB 400 kB 265 kB
640 x 512 960 kB 960 kB
640 x 480 900 kB 900 kB
290 kB 130 kB 90 kB
320 x 256 240 kB 240 kB
320 x 240 230 kB 230 kB
75 kB 35 kB 25 kB
JPEG image file size
JPEG image file size varies greatly depending on objects. Use the file size values in this table as guideline.
Select image
source (live or
full), image size,
and file type
To Next Page
