EDS - ECO DOSAGE SOLUTION
WASHING WATER PUMP DISASSEMBLY/ASSEMBLY
Disassembly
Remove the batteries and the battery case (see the procedure in the Electrical System chapter).

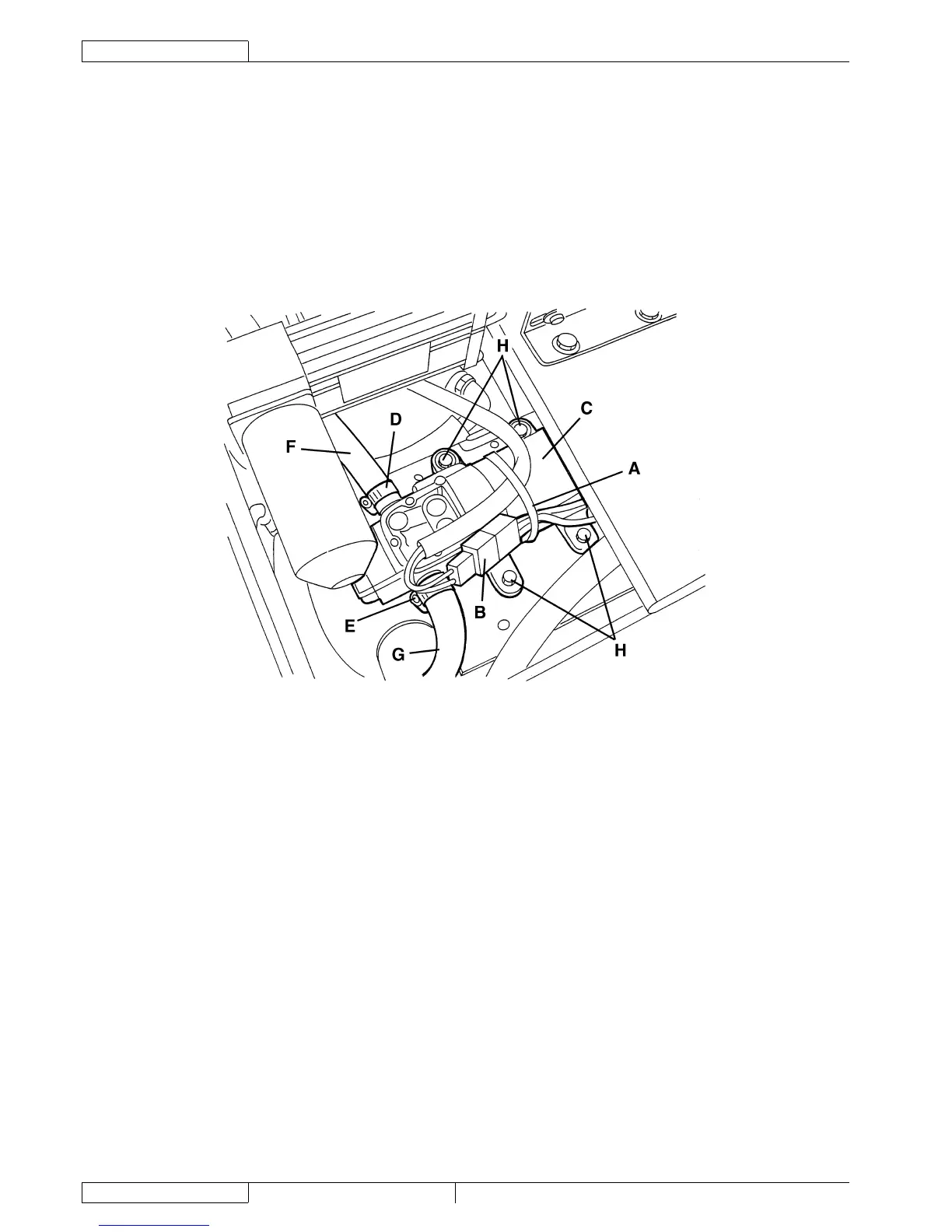

Remove the wiring harness fastening clamp (A).
Disconnect the connector (B) from the washing water pump (C).
Loosen the clamps (D) and (E) and disconnect the hoses (F) and (G) from the pump.
Remove the screws (H).
Remove the washing water pump (C).
Assembly
Assemble the components in the reverse order of disassembly.
S301324
