DRIVE SYSTEM
DRIVE SYSTEM
DRIVING WHEEL COVER DISASSEMBLY/ASSEMBLY (Machines up to January 2007)
Disassembly
Drive the machine to the appointed disposal area, and empty the recovery water tank (58) with the hose (22).
Empty the solution/washing water tank (59) with the tap (36).
Place the machine on a hoisting system (if available). Otherwise, drive the machine on a level fl oor.
Turn the ignition key (12) to "0".
Remove the brush/pad-holder deck (16) or the cylindrical brush deck (17) (see the procedure in the relevant paragraph).
Turn the front wheel (A) completely to the left.
Apply proper wedges to right and left rear wheels (43), so that the machine cannot move when the front wheel (A) is lifted.

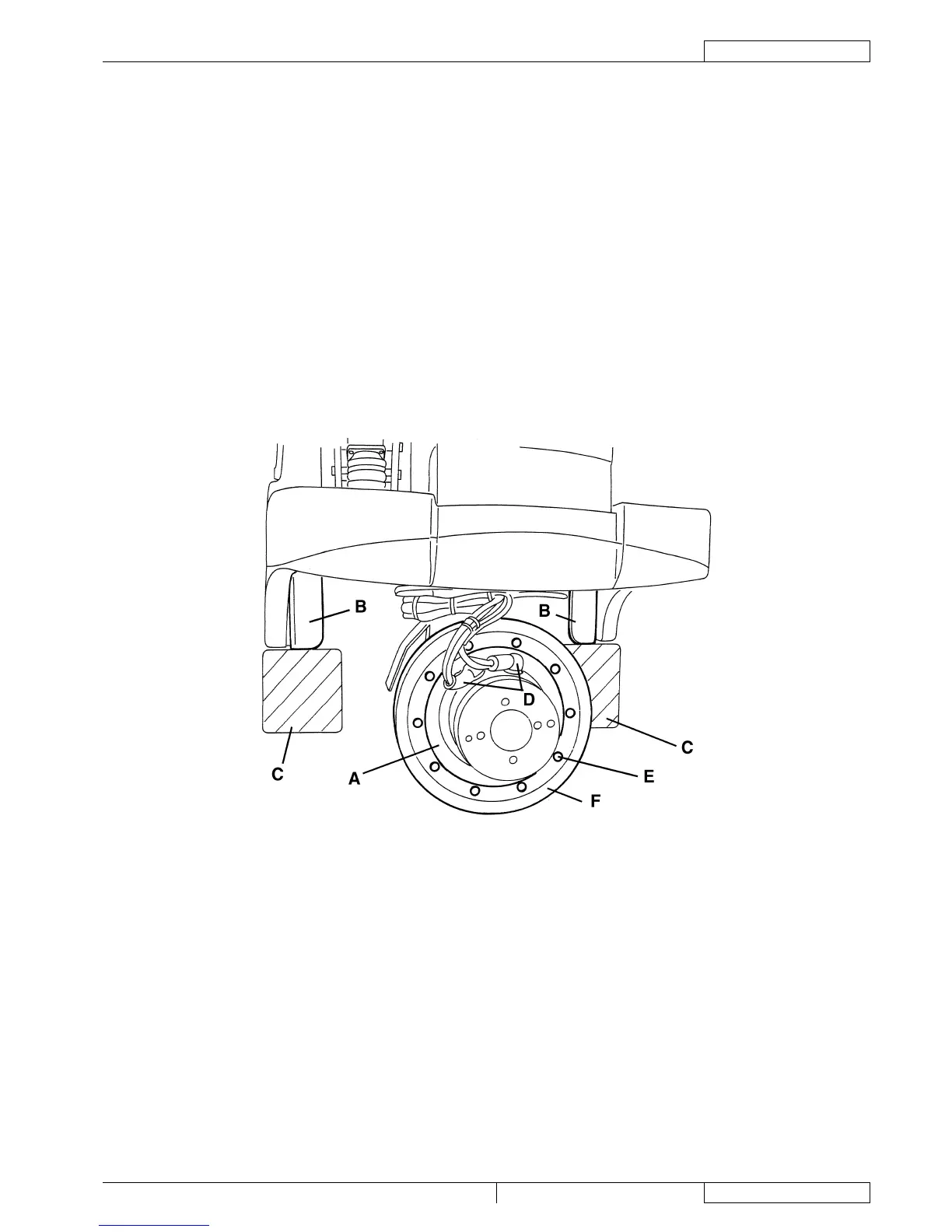

With the help of an assistant, slightly lift the front part of the machine and apply to the frame brackets (B) two proper wooden
shims (C) high enough to keep the front wheel (A) lifted for about 1.18 in (3 cm) from the fl oor.
Lift the tank assembly (60) and disconnect the battery connector (63).
Disconnect the electrical connections (D) from the drive system motor.
Remove the screws (E), then remove the driving wheel cover (F).
Assembly
Assemble the components in the reverse order of disassembly.
