ENGLISH
SERVICE MANUAL
34
909 6424 000(3)2007-12 BR 601 / BR 651 / BR 751 / BR 751 C
BRUSHING SYSTEM
BRUSH DECK LIFTING/LOWERING ACTUATOR DISASSEMBLY/ASSEMBLY
Disassembly
Drive the machine to the appointed disposal area, and empty the recovery water tank (58) with the hose (22).
Empty the solution/washing water tank (59) with the tap (36).
Drive the machine on a level fl oor.
Turn the ignition key (12) to "0".
Carefully lift the tank assembly (60) to reach the batteries.
Disconnect the battery connector (63).
Remove the deck (see the procedure in the relevant paragraph).

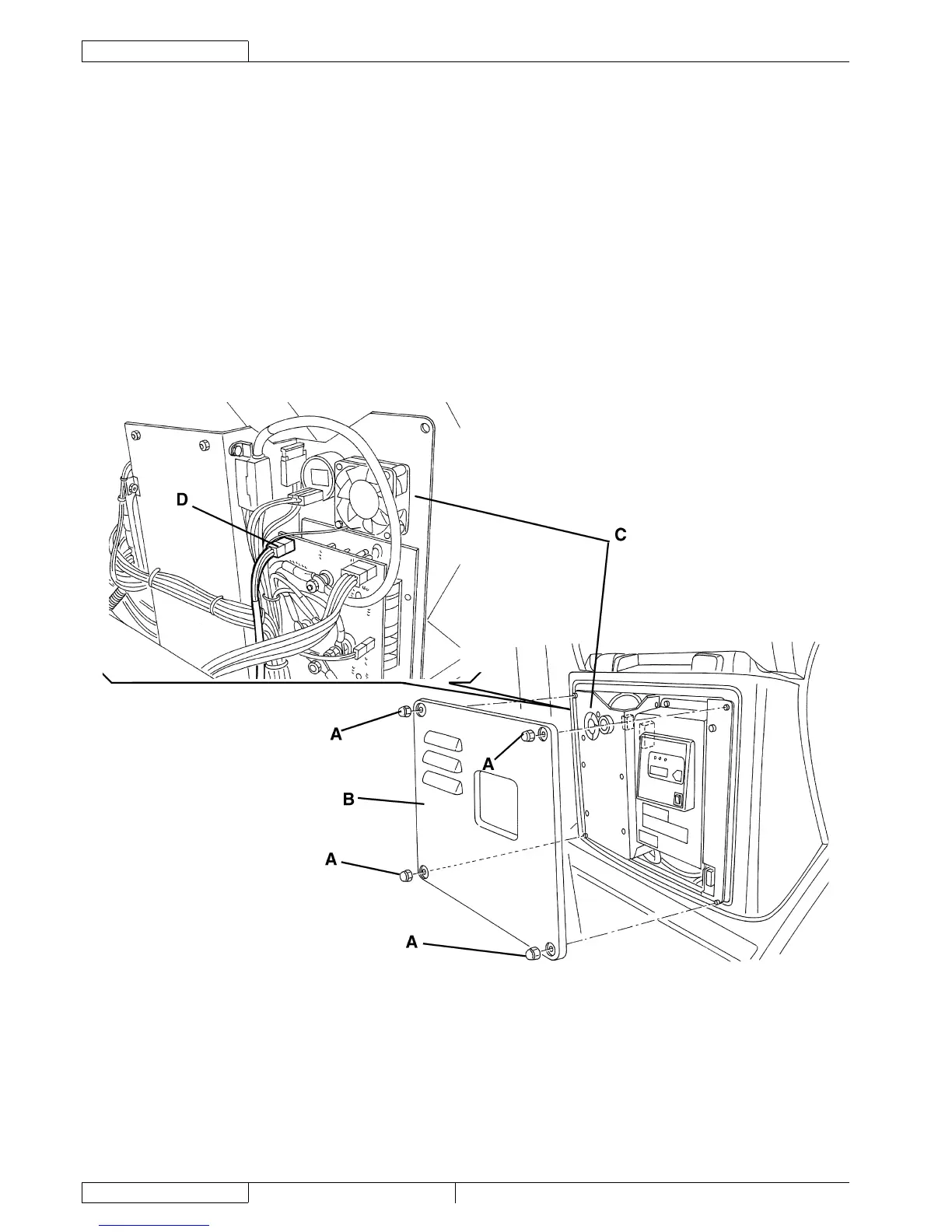

Remove the nuts (A), then carefully remove the cover (B).
Carefully move the electrical component panel (C) and disconnect the deck lifting/lowering actuator connector (D).
Remove the lower mounting screw (E) of the actuator (F).
Remove the screw (G).
Remove the actuator (F).
Assembly
Assemble the components in the reverse order of disassembly.
S301333
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
