SERVICE MANUAL
ENGLISH
BR 601 / BR 651 / BR 751 / BR 751 C 909 6424 000(3)2007-12
47
RECOVERY WATER SYSTEM
SQUEEGEE LIFTING CABLE DISASSEMBLY/ASSEMBLY
Disassembly
Lift the squeegee (24), according to the procedure shown in the User Manual.
Remove the batteries and the battery case (see the procedure in the Electrical System chapter).

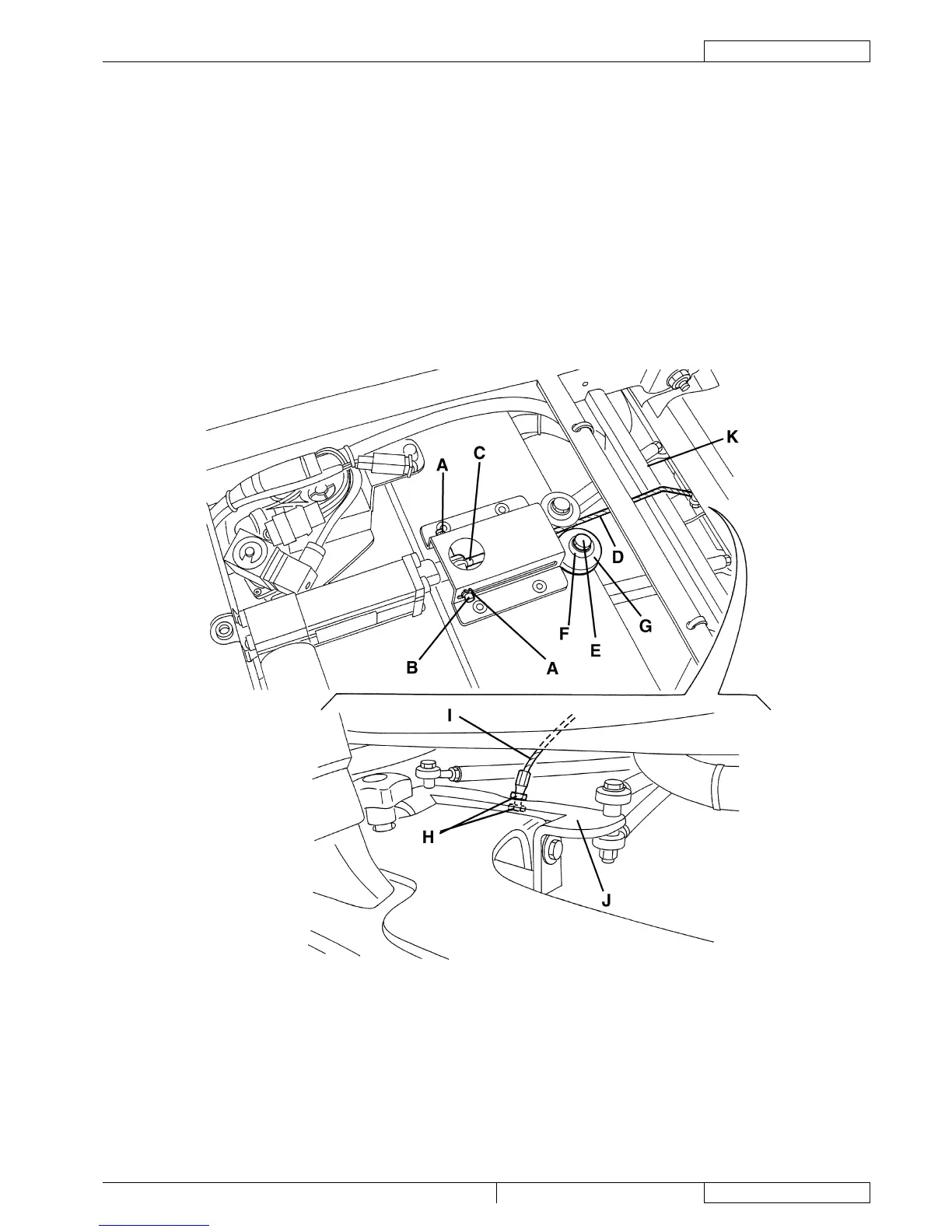

Remove the retaining rings (A) and the pin (B), thus disconnecting the terminal (C) of the squeegee lifting cable (D).
Remove the screw (E) and recover the washer (F).
Remove the guide (G).
Carefully lower the tank assembly (59).
Remove the nut and the locknut (H), then remove the lifting cable (I) from the squeegee assembly (J).
Assembly
Assemble the components in the reverse order of disassembly, and note the following:
Before assembling the lifting cable (I), lubricate the squeegee lifting cable sliding shoe (K) with graphite grease.
After installing the squeegee lifting cable, adjust the nut and the locknut (I) so that, when the squeegee is completely lifted,
the distance from the fl oor is 0.78 in (20 mm).
S301342
1.
2.
3.
4.
5.
6.
7.
8.
•
•
To Next Page
