Nilfisk-Advance BR 751 - Squeegee Lifting Actuator Disassembly;Assembly

ENGLISH
SERVICE MANUAL
46
909 6424 000(3)2007-12 BR 601 / BR 651 / BR 751 / BR 751 C
RECOVERY WATER SYSTEM
SQUEEGEE LIFTING ACTUATOR DISASSEMBLY/ASSEMBLY
Disassembly
Lift the squeegee (24), according to the procedure shown in the User Manual.
Remove the batteries and the battery case (see the procedure in the Electrical System chapter).

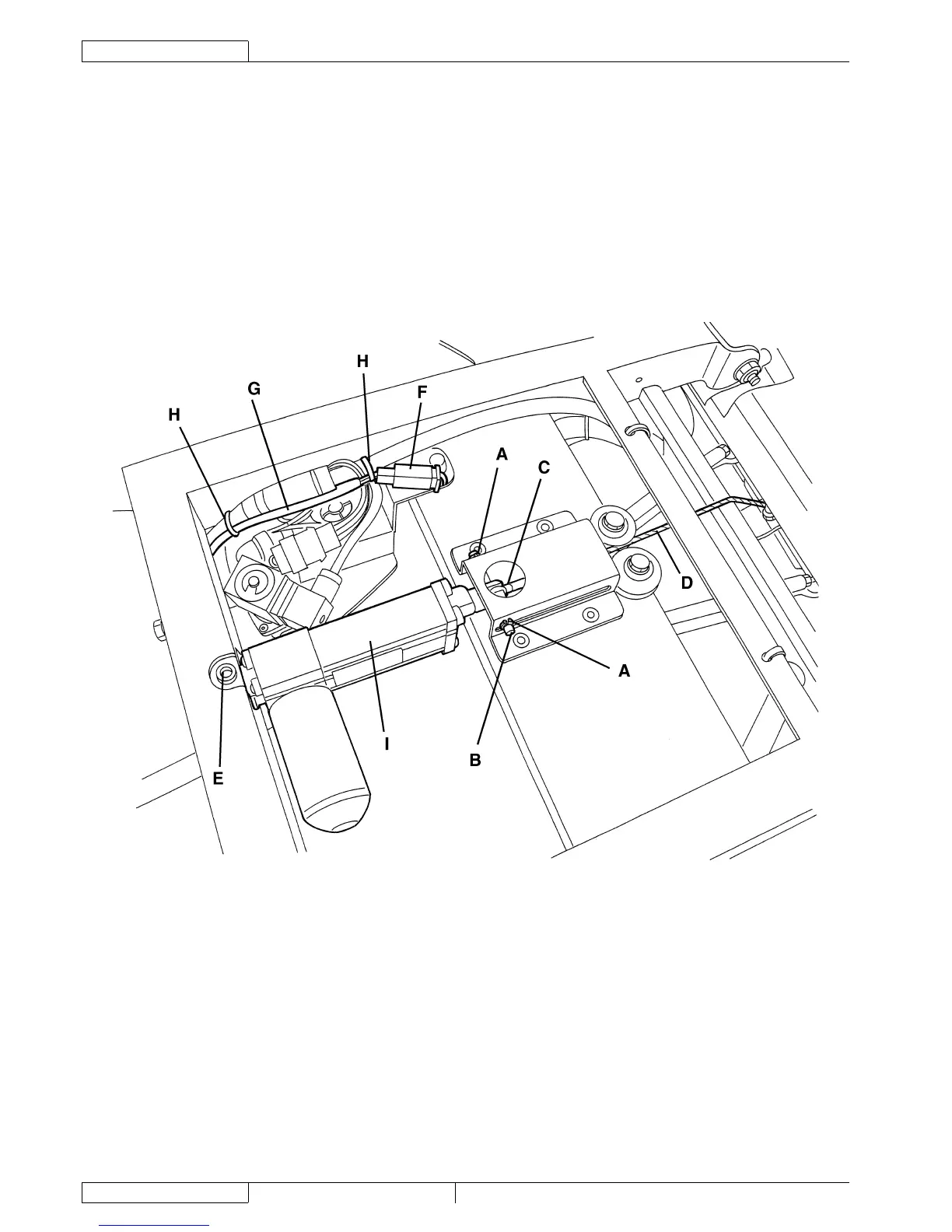

Remove the retaining rings (A) and the pin (B), thus disconnecting the terminal (C) of the squeegee lifting cable (D).
Remove the screw (E).
Disconnect the connector (F) of the actuator (I).
Disconnect the actuator connector (G) from the clamps (H).
Remove the squeegee lifting actuator (I).
Assembly
Assemble the components in the reverse order of disassembly.
S301341
1.
2.
3.
4.
5.
6.
7.
8.
