In other words, only using the Predefined Montage tab, the user is able to completely configure the
system for the experiment (given that the Hardware Specification tab has been previously set), select
whether one or two subjects will be measured and also to load and display the Cortex plot(s) to be used
to plot in real-time the data collected by the measurement.
This can be achieved on NIRStar14-1 with the following montages from the drop-down menu:
i) Motor_16x16
ii) Motor_8x8
iii) Occipital_8x8
iv) Prefrontal_8x8
Nevertheless, NIRStar14-1 also allows its users to add their own montages by clicking on “New…”. By
doing this, a form pops up and the user is requested to enter the montage name and the corresponding
number of sources and detectors, in addition to check the configuration files to be loaded (Figure 10).

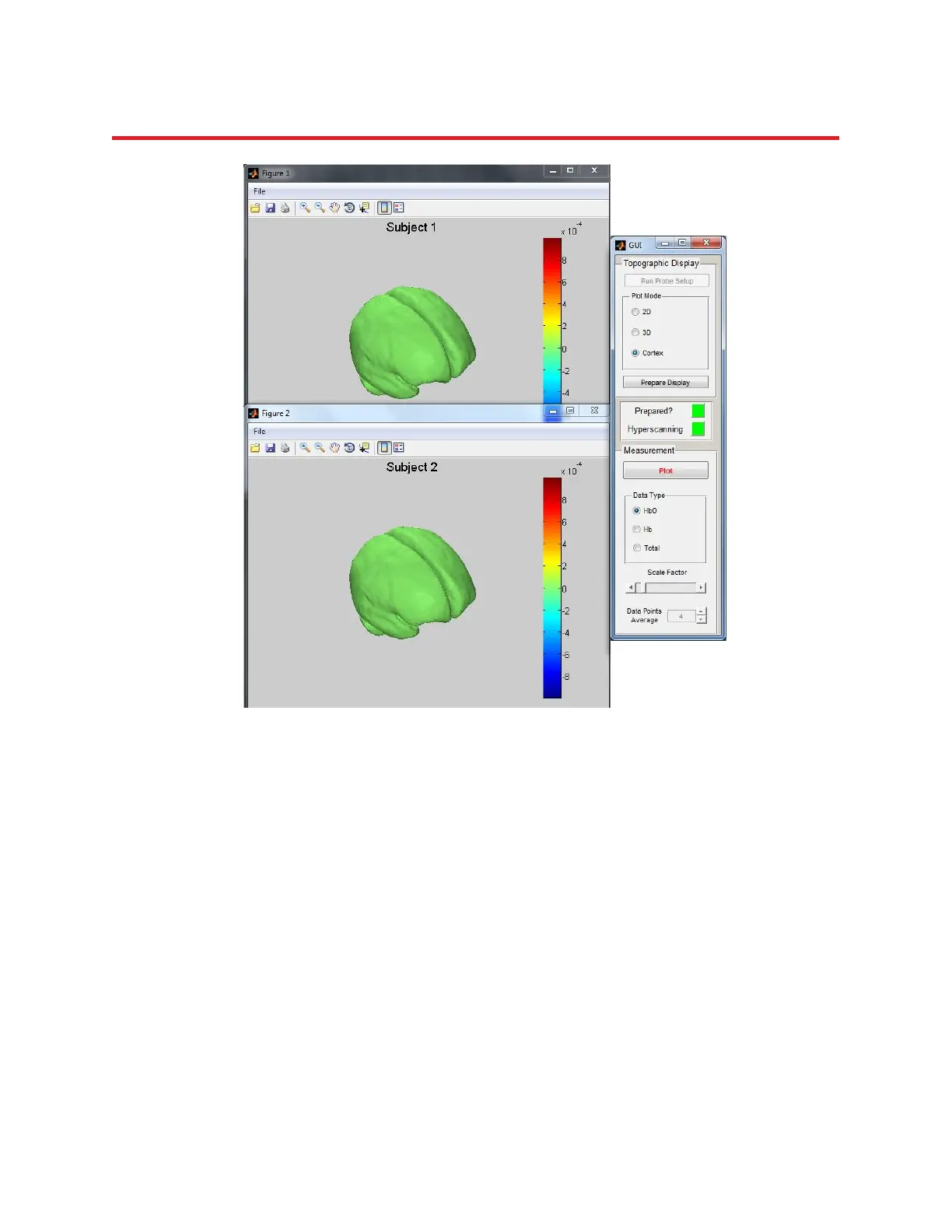

Figure 9. GUI interface successfully loaded and Cortex figures (Subject 1 and 2) displayed.
