At the LSR, if hashing is enabled, the LSR recognizes the ELI and uses the entropy
label value as the hash result. If the entropy-label command had been disabled at
the iLER, the LSR would not find the ELI and would default to hashing based on the
label stack, if applicable.

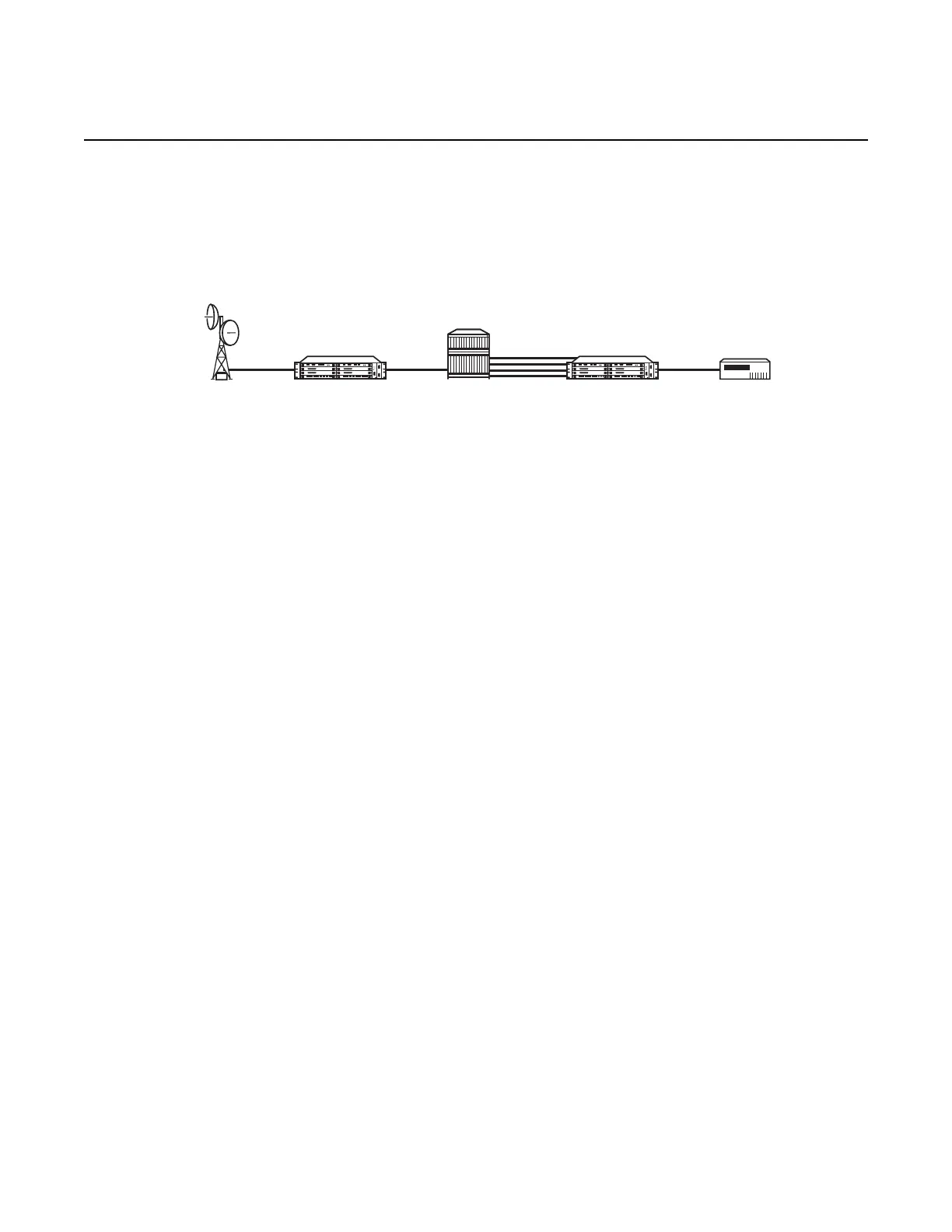

Figure 3 Entropy Label and Load Balancing
At the ingress LER:
config>service>cpipe>spoke-sdp>entropy-label
config>service>epipe>spoke-sdp>entropy-label
config>service>ipipe>spoke-sdp>entropy-label
config>service>vpls>spoke-sdp>entropy-label
config>service>vpls>mesh-sdp>entropy-label
config>service>vprn>entropy-label
config>service>vprn>interface>spoke-sdp>entropy-label
config>router>isis>segment-routing>entropy-label
config>router>ospf>segment-routing>entropy-label
Node B 7705 SAR-87705 SAR-8 7705 SAR-18
eLER CEiLER LSR_1
26222
