4.8.2 MPLS on the PCC Node

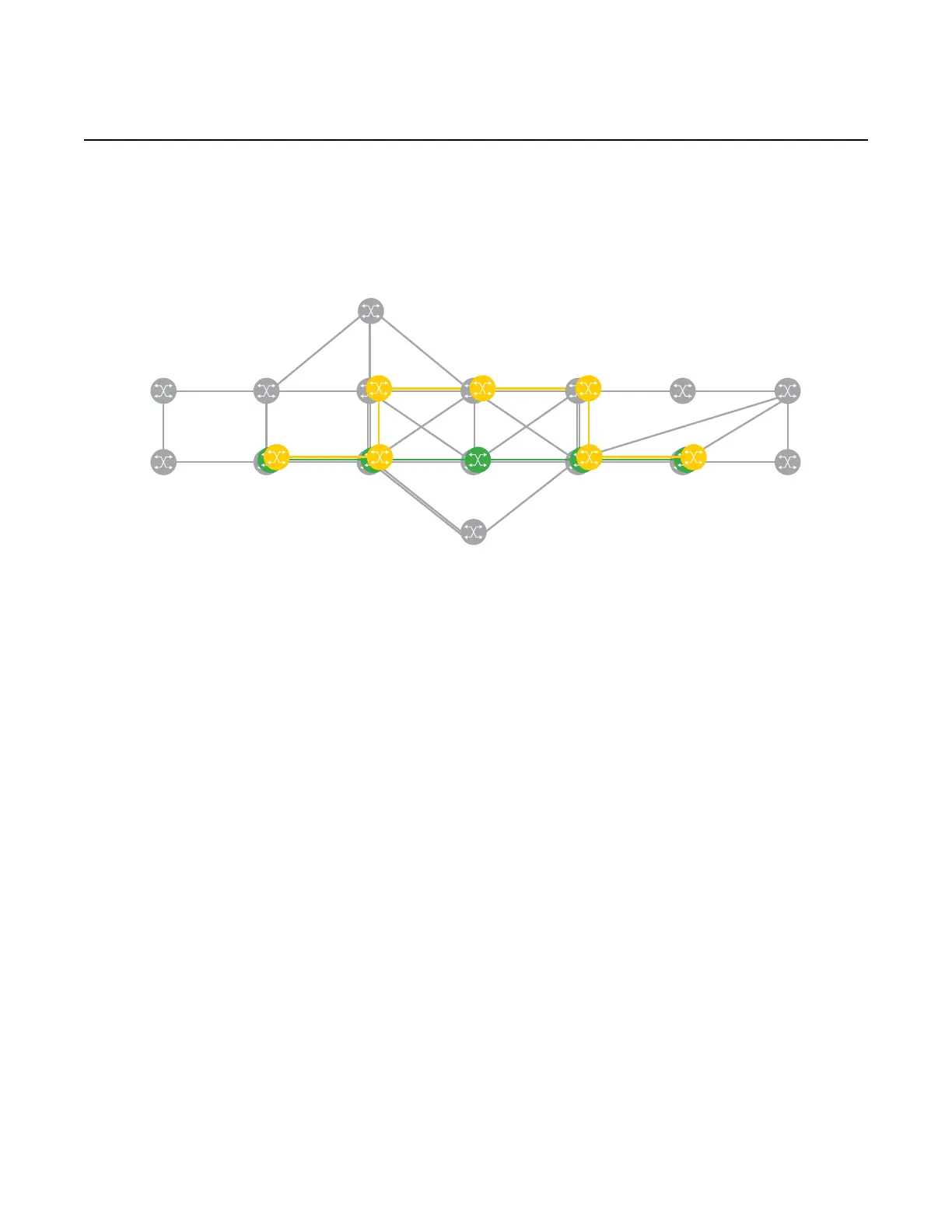

Figure 21 shows primary and secondary RSVP-TE LSP paths in the NSP GUI.
Figure 21 Primary and Secondary RSVP-TE LSP Paths in the NSP GUI
The following example shows the configuration and show command output of the
MPLS on the PCC node.
*A:Reno 194>config>router>mpls>lsp# info
----------------------------------------------
to 192.168.48.224
egress-statistics
shutdown
exit
cspf
fast-reroute facility
no node-protect
exit
pce-computation
pce-report enable
pce-control
revert-timer 1
primary "primary_empty"
exclude "top"
bandwidth 10
exit
secondary "secondary_empty"
standby
exclude "bottom"
bandwidth 5
exit
no shutdown
----------------------------------------------
*A:Reno 194# show router mpls lsp "From Reno to Atlanta RSVP-TE" path detail
===============================================================================
No5049
192.168.48.226
192.168.48.223 192.168.48.224192.168.48.185192.168.48.199192.168.48.194
192.168.48.219
192.168.48.213
192.168.48.211 192.168.48.196 192.168.48.184 192.168.48.221 192.168.48.190
192.168.48.33
192.168.48.32
192.168.48.14
