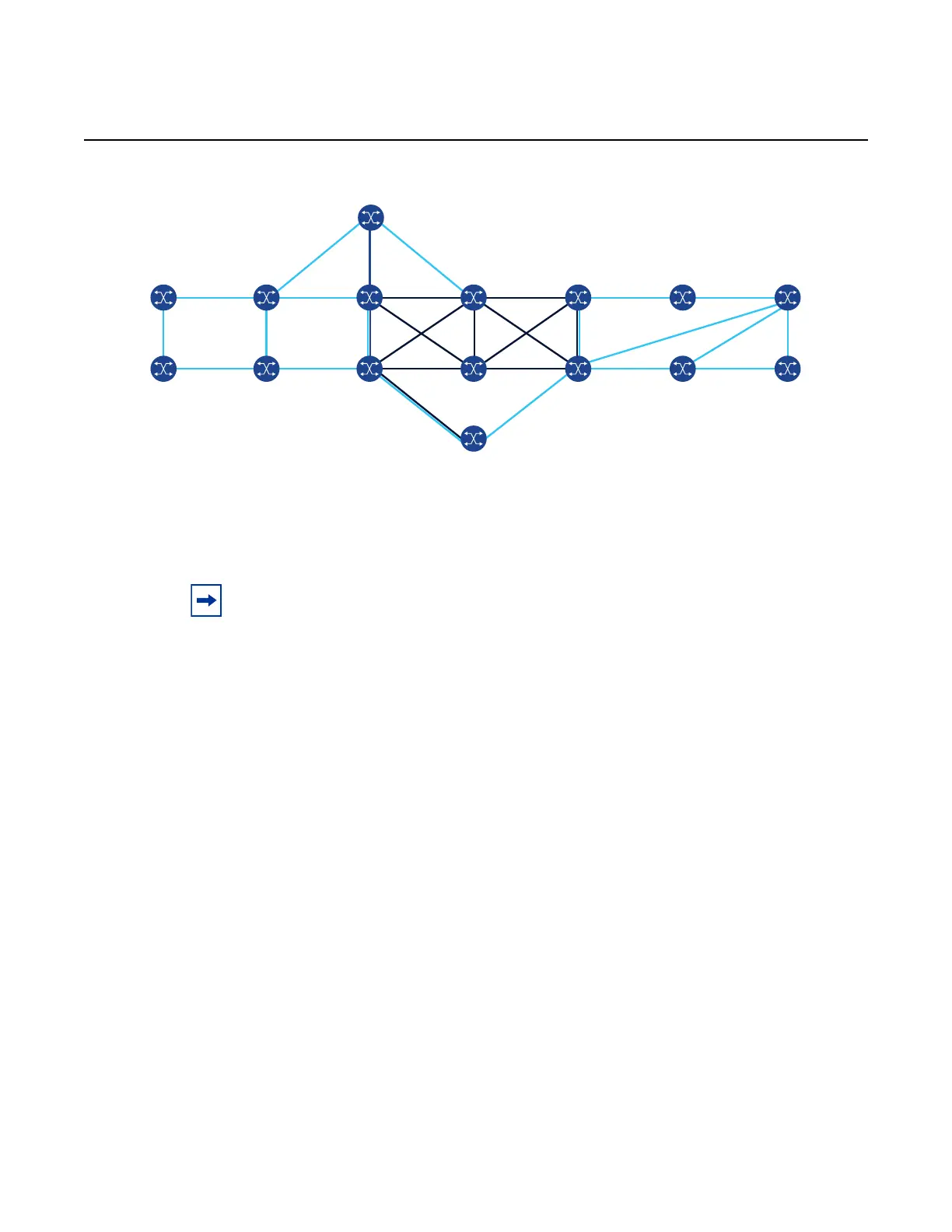

Figure 20 Multi-level IS-IS Topology in the NSP GUI
The following example shows the configuration and show command output of the
PCEP on the PCE node and the PCC node.
*A:PCE Server 226>config>router>pcep>pce# info
----------------------------------------------
local-address 192.168.48.226
no shutdown
----------------------------------------------
*A:Reno 194>config>router>pcep>pcc# info
----------------------------------------------
peer 192.168.48.226
no shutdown
exit
no shutdown
----------------------------------------------
*A:PCE Server 226>config>router>pcep>pce# show router pcep pce status
===============================================================================
Path Computation Element Protocol (PCEP) Path Computation Element (PCE) Info
===============================================================================
Admin Status : Up Oper Status : Up
Unknown Msg Limit : 10 msg/min
Keepalive Interval : 30 seconds DeadTimer Interval : 120 seconds
Capabilities List : stateful-delegate stateful-pce segment-rt-path
Local Address : 192.168.48.226
PCE Overloaded : false
-------------------------------------------------------------------------------
PCEP Path Computation Element (PCE) Peer Info
-------------------------------------------------------------------------------
Peer Sync State Oper Keepalive/Oper DeadTimer
No5048
192.168.48.226
192.168.48.223 192.168.48.224192.168.48.185192.168.48.199192.168.48.194
192.168.48.219
192.168.48.213
192.168.48.211 192.168.48.196 192.168.48.184 192.168.48.221 192.168.48.190
192.168.48.33
192.168.48.32
192.168.48.14
Note: The 7705 SAR operates as a PCE Client (PCC) only, supporting PCC capabilities for
RSVP-TE LSPs and SR-TE LSPs. References to PCE router operation apply to the 7750
SR product family and are included for informational purposes only.
