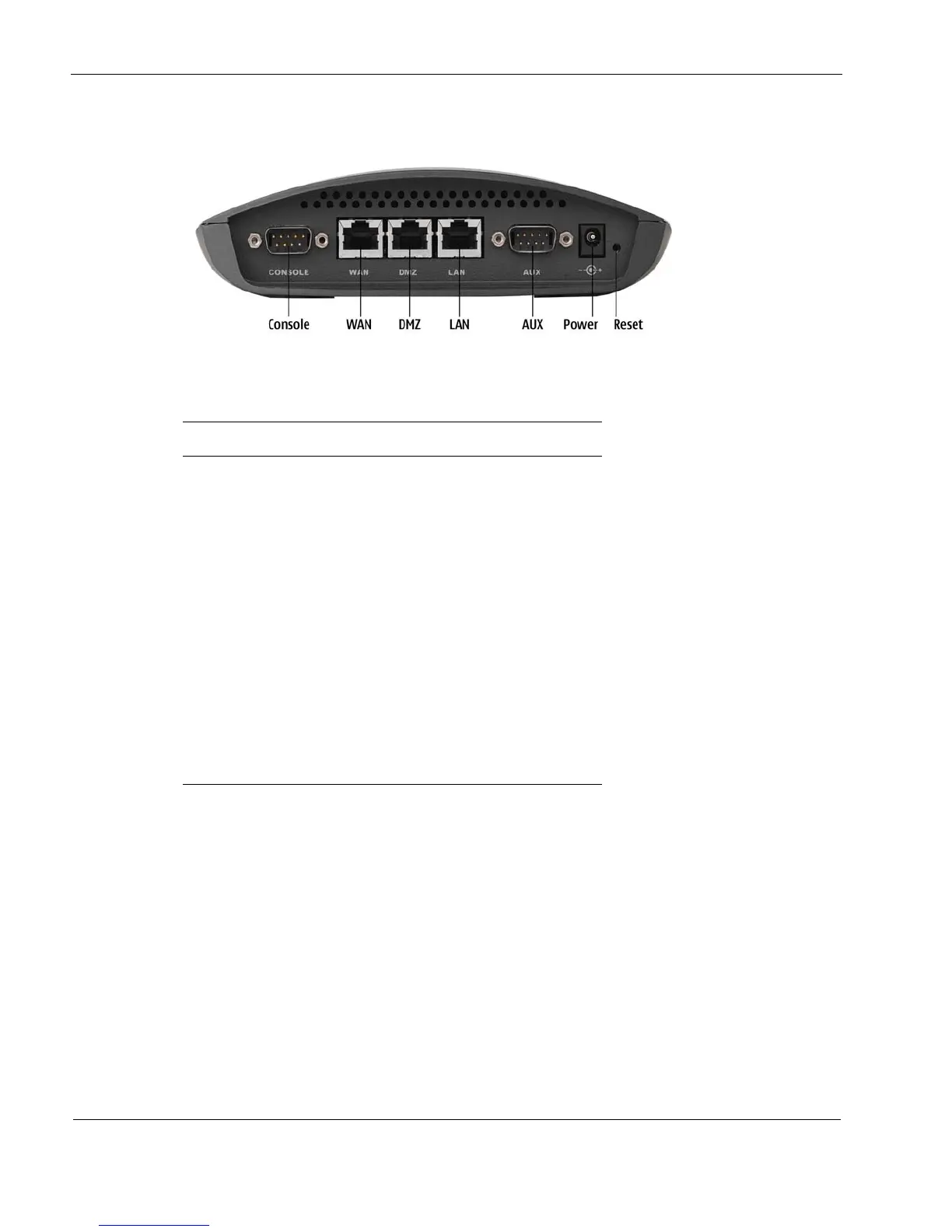

Figure 1 Rear panel of Nokia IP40
Table 9 explains the items on the rear panel of the Nokia IP40.
Table 9 Rear Panel of IP40
Label Description
Power A power jack used to supply power to the device.
Connect the power adapter to this jack. The device
connects to the power source.
AUX The auxiliary port or dial-in port is a 9-pin male
connector. This port is used to dial in to IP40 through a
modem when the IP40 is unreachable through other
ports.
LAN Local area network. Ethernet port (RJ-45) used to
connect computers or other network devices.
DMZ Demilitarized zone: Ethernet port (RJ-45) used to
connect computers or other network devices. Similar to
LAN port in operation.
WAN Wide area network:. An Ethernet port (RJ-45) used to
connect your cable or xDSL modem.
