Sine1 is a phase modulated sine
wave. At 50% Shape setting, the
signal is a perfect sine wave and at
99% similar to a sawtooth wave.
When the Shape is modulated with
negative values, the signal is “mir-
rored”.
Sine2 is a Sine -> Double Sine sig-
nal. At 50% Shape setting, the sig-
nal is a pure sine wave and at 99%
Shape setting, the first half of the
period almost covers the entire pe-
riod length and the second half is a
very narrow “spike”. When the
Shape is modulated with negative
values, the signal is “mirrored”.
Sine3 is a Sine -> Odd harmonics
signal. At 50% Shape setting, the
signal is a perfect sine wave and at
99% a lot of odd harmonics have
been added. When the Shape is
modulated with negative values,
the signal is limited at pure sine
wave shape.
Sine4 is a Sine -> Even harmonics
signal. At 50% Shape setting, the
signal is a perfect sine wave and at
99% a lot of even harmonics have
been added. When the Shape is
modulated with negative values,
the signal is limited at pure sine
wave shape.
TriSaw is a Triangle -> Sawtooth signal. At 50% Shape setting, the signal is a perfect Triangle and at 99%
a perfect Sawtooth. When the Shape is modulated with negative values, the signal is “mirrored”.
The last signal is a Pulse with selectable symmetric pulse width. At 50% Shape setting, the signal is a per-
fect Square, at 75% a Pulse with 25% symmetric pulse width and at 99% a Pulse with 1% symmetric
pulse width. When the Shape is modulated with negative values, the signal is “mirrored”. See also "Com-
mon Oscillator parameters” and "Shape Oscillator tips” (below).

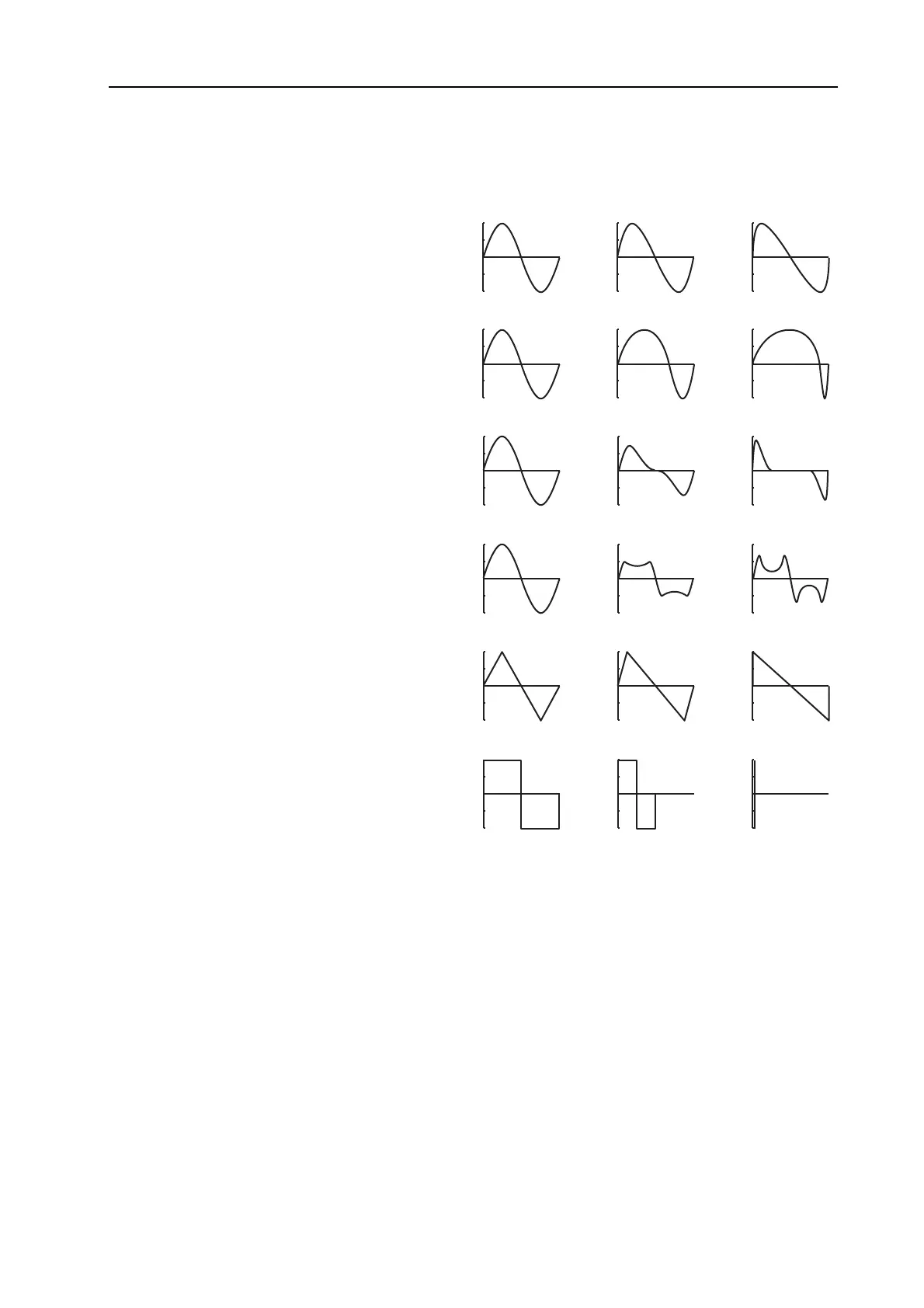

Shape: 50%
Shape: 75% Shape: 99%
Sine1:
Sine2:
Sine3:
Sine4:
TriSaw:
SymPulse:
