NORD MODULAR G2 V1.1 11. Module reference: The Oscillator group
Page 125
O
OO
O
S
SS
SC
CC
C
A
AA
A

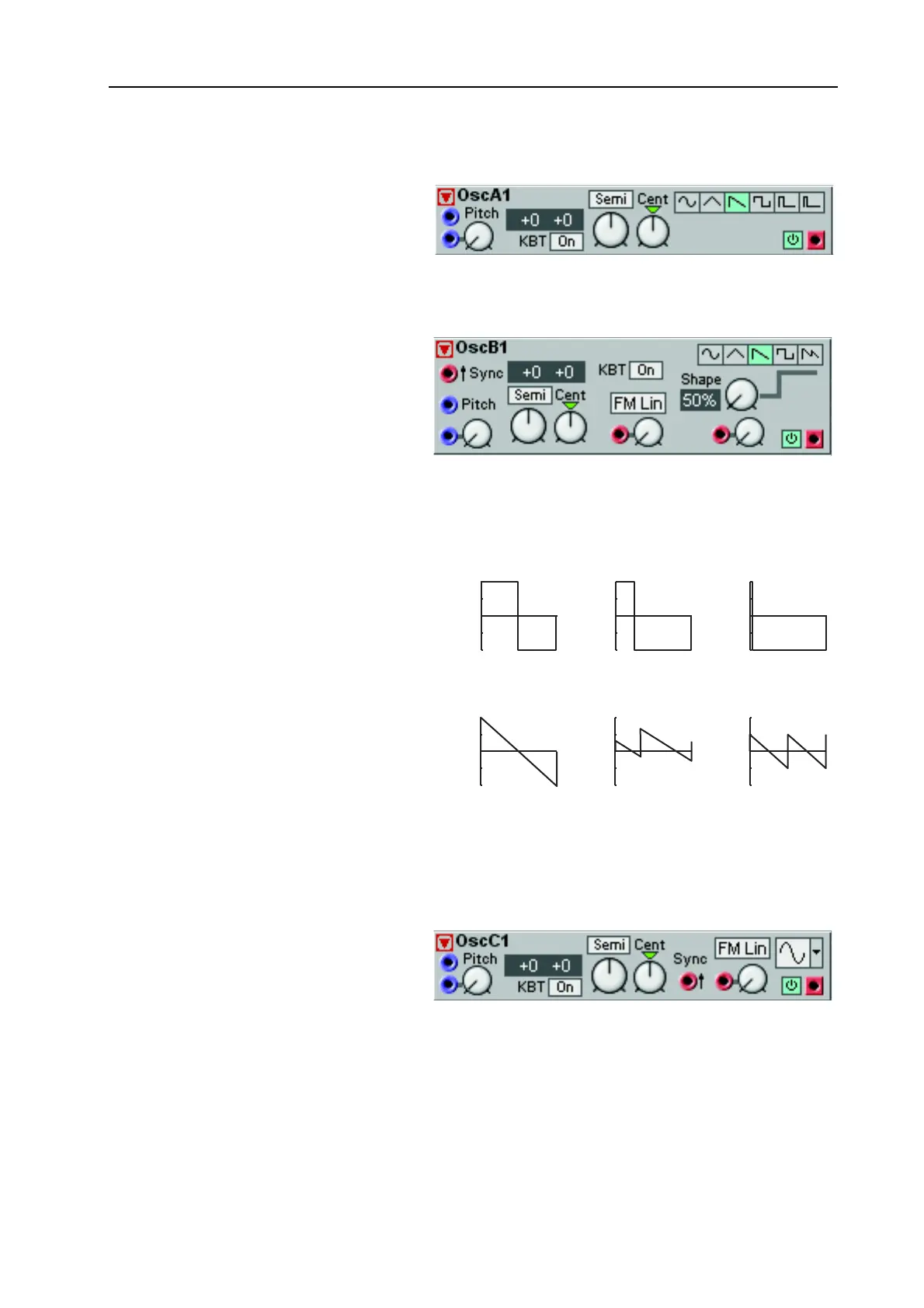

This oscillator can produce one of six
waveforms: Sine, Triangle, Sawtooth,
Square, 25% Pulse or 10% Pulse. The os-
cillator has two pitch modulation inputs.
See also "Common Oscillator parameters”.
O
OO
O
S
SS
SC
CC
C
B
BB
B
OscillatorB can produce one of five
waveforms: Sine, Triangle, Sawtooth,
Pulse with selectable asymmetric pulse
width, Pulse with selectable symmetric
pulse width and Double Sawtooth. The
oscillator has two pitch modulation in-
puts, one frequency modulation input,
one sync modulation input and a Shape modulation input.
S
SS
S
H
HH
HA
AA
AP
PP
PA
AA
AB
BB
BL
LL
LE
EE
E
W
WW
WA
AA
AV
VV
VE
EE
EF
FF
FO
OO
OR
RR
RM
MM
MS
SS
S
The fourth waveform is Pulse with
selectable pulse width. This is the
type of waveform found in most
analog synthesizers. At 50% Shape
setting, the signal is a perfect
Square, at 75% a Pulse with 25/
75% pulse width and at 99% a
Pulse with 1/99% pulse width.
When the Shape is modulated
with negative values, the signal is
“mirrored”.
The fifth waveform is Double
Sawtooth. At 50% Shape setting,
the signal consists of two Sawtooth waves in phase with each other, at 75% two Sawtooth waves slightly
phase shifted and at 99% two Sawtooth waves 90 degrees phase shifted When the Shape is modulated
with negative values, the signal is “mirrored”. See also "Common Oscillator parameters”.
O
OO
O
S
SS
SC
CC
C
C
CC
C
This oscillator produces one of six availa-
ble waveforms. It also has two pitch mod-
ulation input. The oscillator has the same
waveforms as OscA but uses less Patch
Load because of the waveform drop-down selection system which forces the oscillator to optimize and
recalculate every time you select a new waveform. See also "Common Oscillator parameters”.
Pulse
DoubleSaw
Shape: 50%
Shape: 75% Shape: 99%
