11. Module reference: The Oscillator group NORD MODULAR G2 V1.1
Page 124
FM Lin in the Nord Modular G2 system is deep linear frequency modulation. FM Lin modulation gen-
erates varying “size” of the frequency bands when you change the oscillator pitch. In FM Trk, or Tracking
Frequency Modulation, all frequency bands tracks the oscillator pitch equally across the note range.
See “Frequency modulation (FM)” on page 34 for more info.
KBT
KBTKBT
KBT
KBT, KeyBoard Tracking, is the hard-wired connection between the oscillator pitch and
the keyboard (and the MIDI input). If KBT is activated the oscillator will track the key-
board at the rate of one semitone for each key. If KBT is not activated, the keyboard will
not affect the oscillator frequency.
O
OO
O
N
NN
N
/O
/O/O
/O
F
FF
FF
FF
F
Click to mute the output of the oscillator. Blue button color indicates that the oscillator is on
O
OO
O
U
UU
UT
TT
TP
PP
PU
UU
UT
TT
T
The signal output on the oscillator. Signal: Bipolar

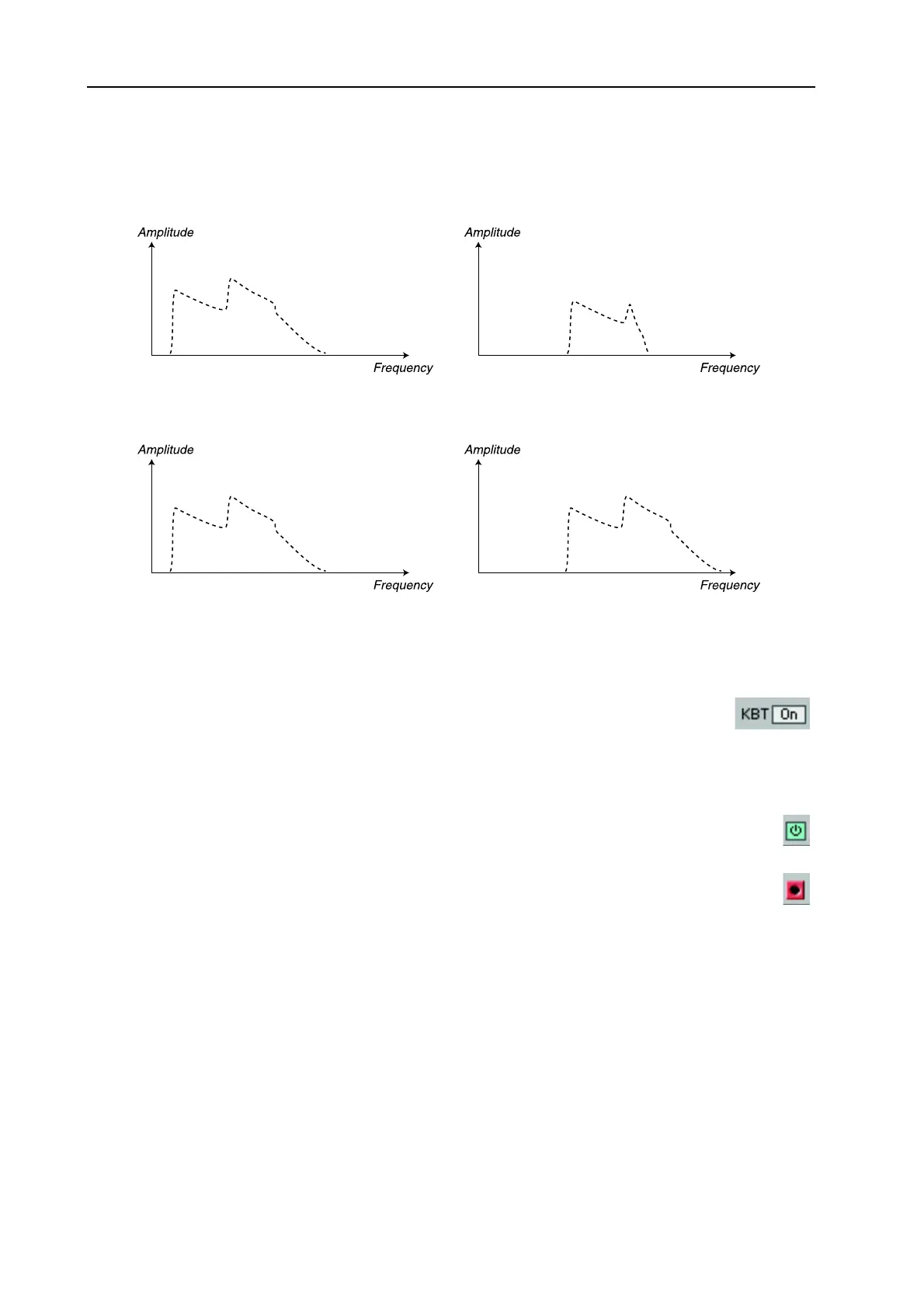

The FM Trk modulated signal at a higher pitch
A low-pitched FM Lin modulated signal
A low-pitched FM Trk modulated signal
The FM Lin modulated signal at a higher pitch
