NORD MODULAR G2 V1.1 11. Module reference: Logic group

Page 179

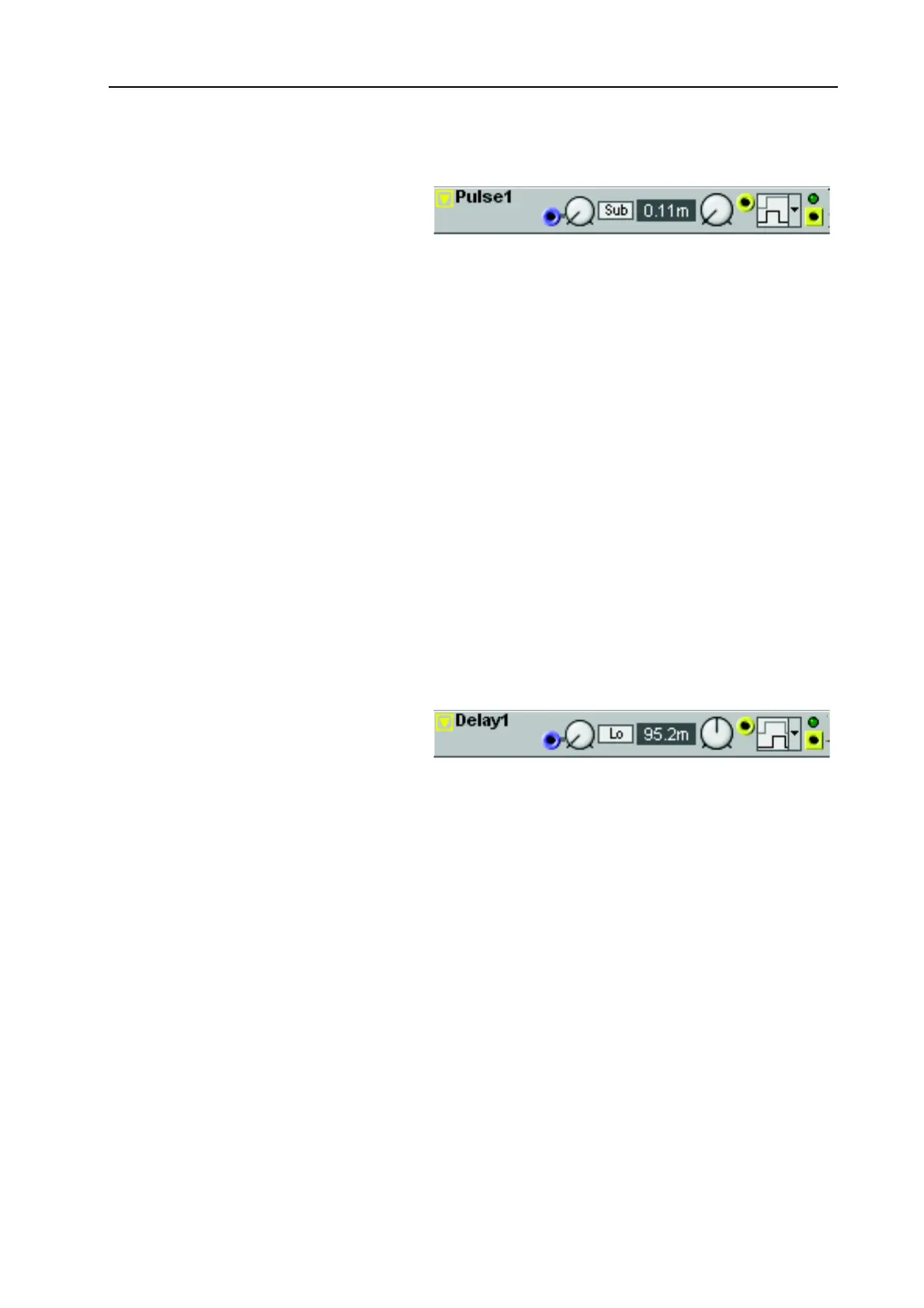

This module can use a signal that in-

creases from 0 units or below to any-

thing greater than 0 units, or the other

way around, to produce a high logic sig-

nal. You set the duration of the generated high logic signal with the knob. You can select between Positive

and Negative Edge Pulse trig from the drop-down selector. Note that changing trig type will force the

Sound engine to recalculate and thus cause a brief moment of silence.

A Dynamic Control/Audio input for modulating the Delay time. The modulation amount can be atten-

uated with the knob of [Attenuator Type I].

/L/L

/H/H

Select Delay time ranges by clicking this scroll button.

Set the Pulse time with the knob. Range (Sub): 0.10 ms to 1.00 s, (Lo): 1.04 ms to 10.00 s, (Hi): 10.4

ms to 100.0 s. If the module receives another level change, (from 0 units or below to anything greater

than 0 units, or the other way around) during the Pulse period, it will extend the duration, with the value

set with the knob.

T T

Select Pulse Type between Positive Edge Pulse trig and Negative Edge Pulse trig. See also "Common

Logic module parameters”.

This module delays a signal that increas-

es from 0 units or below to a value great-

er than 0 units, and produces a high

logic output signal. The type of delay

can be selected by clicking the Delay Type drop-down selector. Note that changing Delay Type will force

the Sound engine to recalculate and thus cause a brief moment of silence.

A Dynamic Control/Audio input for modulating the Delay time. The modulation amount can be atten-

uated with the knob of [Attenuator Type I].

/L/L

/H/H

Select Delay time ranges by clicking this scroll button.

Set the delay time with the knob. Range (Sub): 0.10 ms to 1.00 s, (Lo): 1.04 ms to 10.00 s, (Hi): 10.4

ms to 100.0 s.

T T

Select Delay Type between Positive Edge Delay (only the positive edge of the input signal is delayed),

Negative Edge Delay (only the negative edge of the input signal is delayed) and Cycle Delay (the entire

input signal cycle is delayed). See also "Common Logic module parameters”.
