11. Module reference: Mixer group NORD MODULAR G2 V1.1
Page 160
M
MM
M
I
II
IX
XX
X
1-1A
1-1A1-1A
1-1A

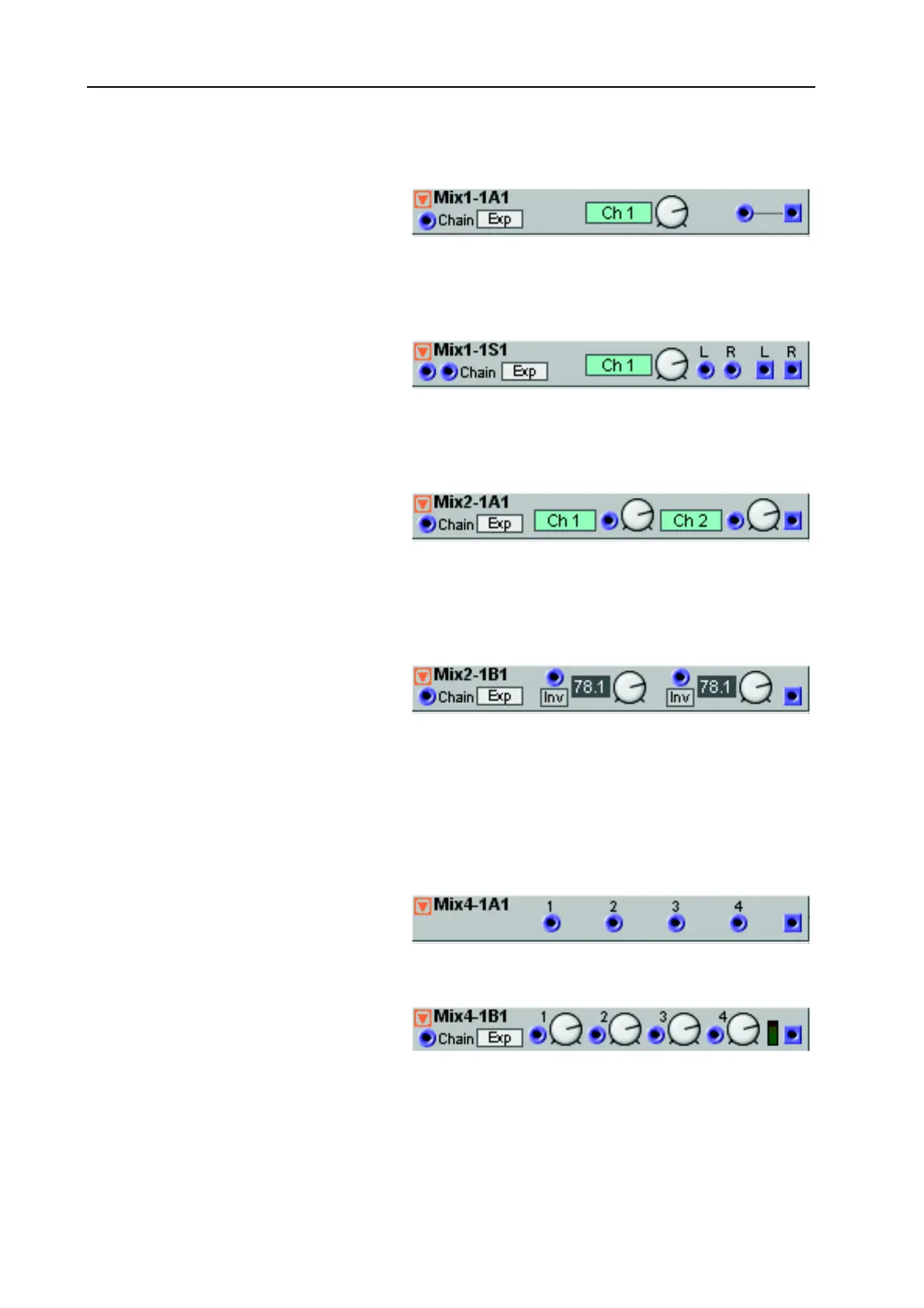

This mixer has one Dynamic Control/
Audio signal input, a chain input and
one output. The mixer has an On/Off
button for enabling/disabling the input.
The On/Off button can be labelled. See also "Common Mixer parameters”.
M
MM
M
I
II
IX
XX
X
1-1S
1-1S1-1S
1-1S
This mixer has stereo Dynamic Control/
Audio signal inputs, stereo chain inputs
and stereo outputs. The mixer has an
On/Off button for enabling/disabling
the inputs. The On/Off button can be labelled. See also "Common Mixer parameters”.
M
MM
M
I
II
IX
XX
X
2-1A
2-1A2-1A
2-1A
This mixer has two Dynamic Control/
Audio signal inputs and one output.
Each input is equipped with a separate
attenuation control. The mixer has an
On/Off button per channel for enabling/disabling the inputs. The On/Off buttons can be labelled. See
also "Common Mixer parameters”.
M
MM
M
I
II
IX
XX
XE
EE
ER
RR
R
2-1B
2-1B2-1B
2-1B
This mixer has two Dynamic Control/
Audio signal inputs and one output.
Each input is equipped with a separate
attenuation control. Each channel also
has a separate control for inverting the input signal.
I
II
I
N
NN
NV
VV
V
Click the Inv button(s) to invert the input signal(s) polarity, i.e. phase shift them 180 degrees. See also
"Common Mixer parameters”.
M
MM
M
I
II
IX
XX
X
4-1A
4-1A4-1A
4-1A
This mixer has four Dynamic Control/
Audio signal inputs and one output. See
also "Common Mixer parameters”.
M
MM
M
I
II
IX
XX
X
4-1B
4-1B4-1B
4-1B
This mixer has four Dynamic Control/
Audio signal inputs, one Chain input
and one output. Each input is equipped
with a separate attenuation control. See also "Common Mixer parameters”.
