nord modular G2 User Manual

11. Module reference: Logic group NORD MODULAR G2 V1.1
Page 180
8C
8C8C
8C
O
OO
OU
UU
UN
NN
NT
TT
TE
EE
ER
RR
R

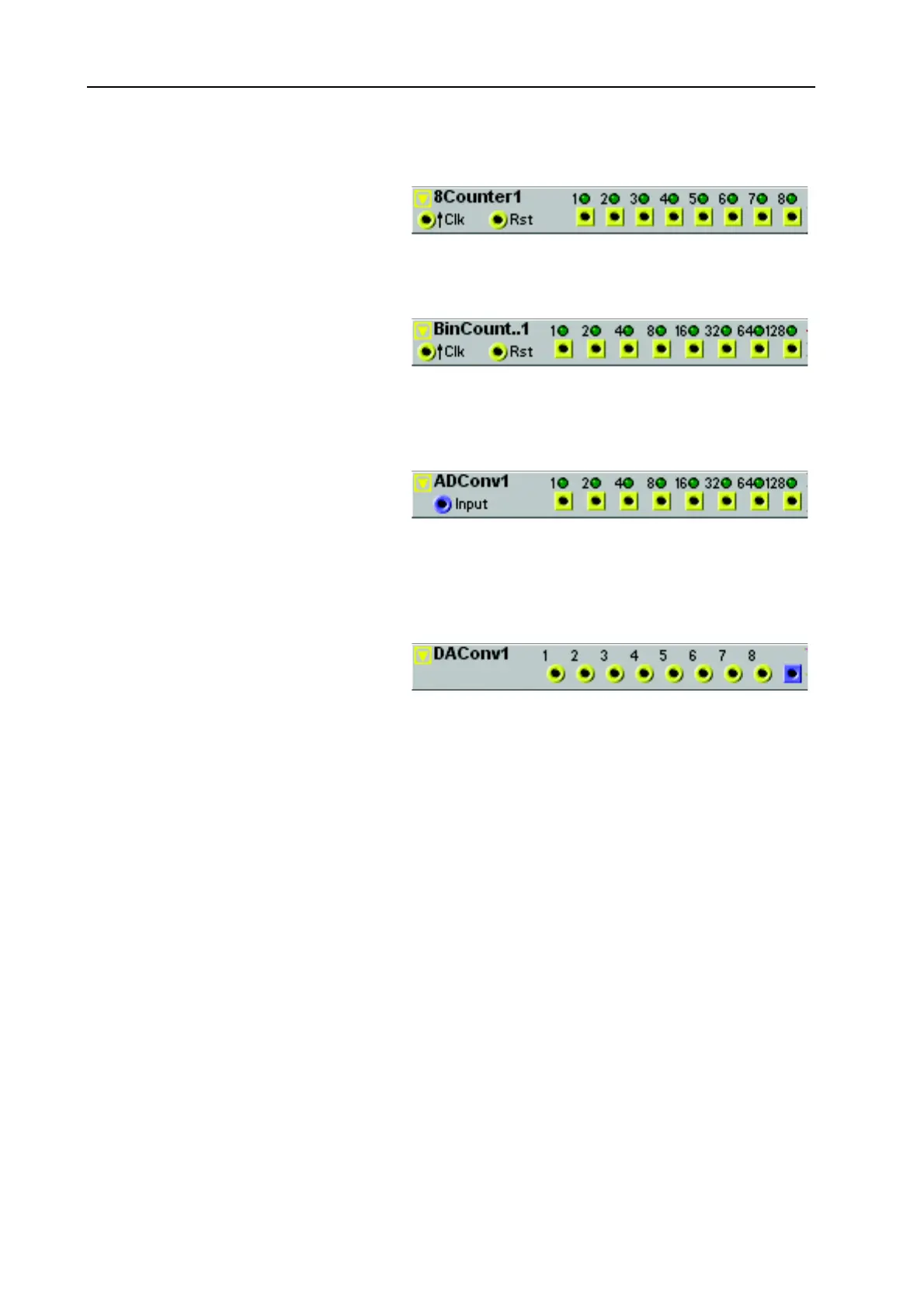

The 8-Counter outputs a high logic sig-
nal, sequentially through outputs 1-8,
for every incoming clock pulse. See also
"Common Logic module parameters”.
B
BB
B
I
II
IN
NN
N
C
CC
C
O
OO
OU
UU
UN
NN
NT
TT
TE
EE
ER
RR
R
The BinCounter is an 8 bit binary coun-
ter which outputs high logic signals, in
“binary order”, for every incoming clock
pulse. See also "Common Logic module
parameters”.
ADC
ADCADC
ADC
O
OO
ON
NN
NV
VV
V
The ADConv module is an 8 bit A/D
converter of ‘2’s compliment’ type. The
module outputs high logic signals on its
outputs depending on the current input
signal level. Note that the module accepts bipolar input signals and that the 128 value LED indicates
when the input signal is negative. See also "Common Logic module parameters”.
DAC
DACDAC
DAC
O
OO
ON
NN
NV
VV
V
The DAConv module is an 8 bit D/A
converter of ‘2’s compliment’ type. The
module outputs a bipolar signal with
values depending on the current logic
input signals. Note that the module can output bipolar signals and that a high signal on input 8 results
in a negative output signal. See also "Common Logic module parameters”.
