NORD MODULAR G2 V1.1 11. Module reference: Switch group
Page 167
M
MM
M
U
UU
UX
XX
X
8-1
8-18-1
8-1

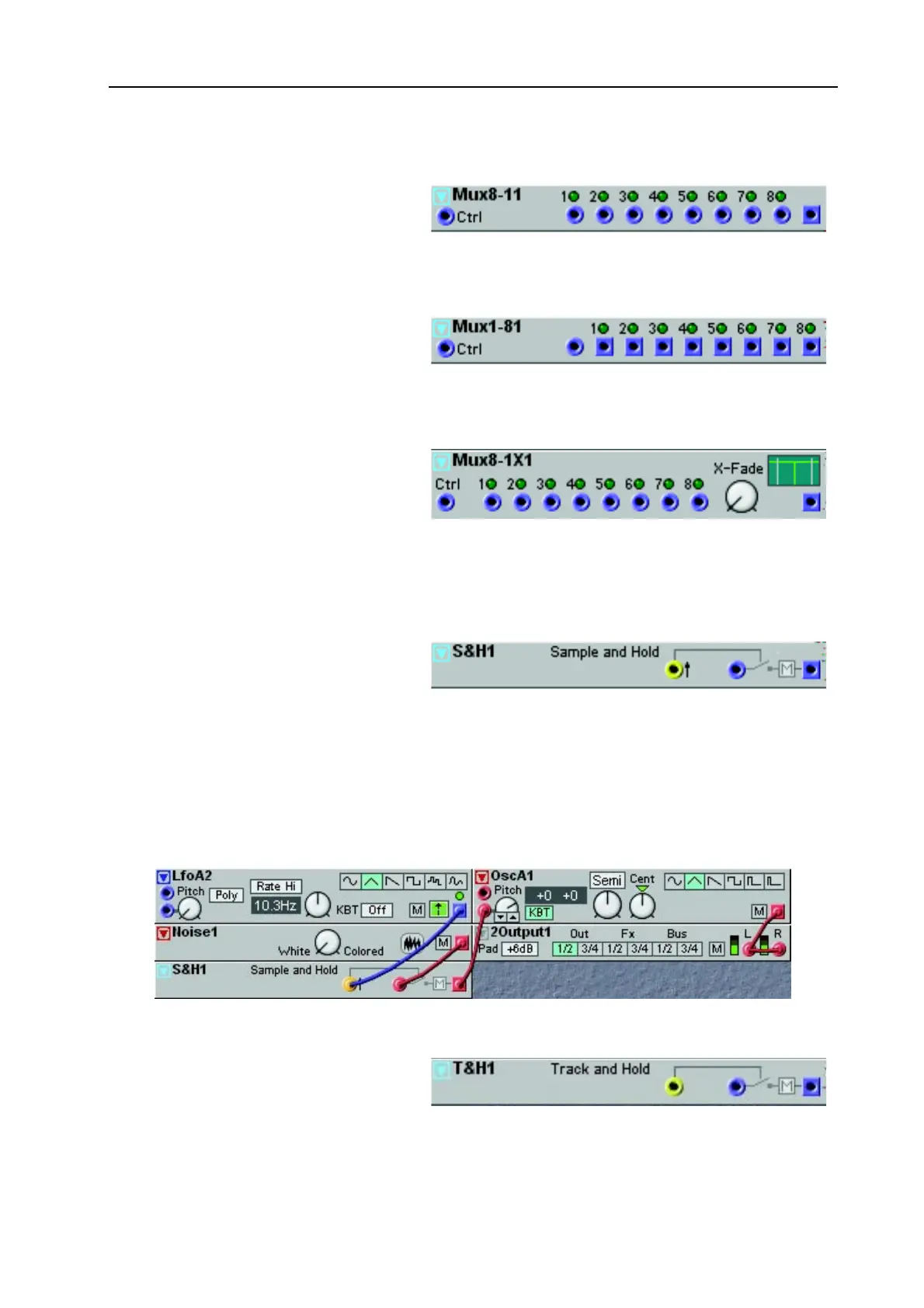

The 8-1Multiplexer has eight inputs and
one output. The channels are enabled by
sending a control signal on the Ctrl in-
put. See also "Common Switch parameters”.
M
MM
M
U
UU
UX
XX
X
1-8
1-81-8
1-8
The 1-8Multiplexer has one input and
eight outputs. The channels are enabled
by sending a control signal on the Ctrl
input. See also "Common Switch parameters”
M
MM
M
U
UU
UX
XX
X
8-1X
8-1X8-1X
8-1X
The 8-1 X-Fade Multiplexer has eight
inputs and one output. The channels are
enabled by sending a control signal on
the Ctrl input. You can also define the
amount of crossfade between adjacent
channels with the X-Fade knob. The crossfade function is displayed in the graph. See also "Common
Switch parameters”.
S
SS
S
A
AA
AM
MM
MP
PP
PL
LL
LE
EE
E
&H
&H&H
&H
O
OO
OL
LL
LD
DD
D
This module takes samples of the values
of an incoming signal. The sampling of
the input signal occurs every time a sig-
nal shifting from 0 units or below to anything above 0 units appears at the leftmost input. Inbetween
these “trig” signals, the module transmits the value of the latest sample to the output. See also "Common
Switch parameters”.
To create the traditional Sample & Hold or random LFO synthesizer effect, connect the output of a white
noise generator module to the input of the Sample & Hold module and trig the Sample & Hold module
with an LFO. Connect the output of the Sample & Hold module to a Pitch modulation input of an os-
cillator according to the figure below:
T
TT
T
R
RR
RA
AA
AC
CC
CK
KK
K
&H
&H&H
&H
O
OO
OL
LL
LD
DD
D
This module is similar to the Sam-
ple&Hold module described above, but
with one difference. Instead of just tak-
ing a single sample at a time, the Track&Hold module acts like a combination of a switch and a Sam-
To Next Page
