NORD MODULAR G2 V1.1 11. Module reference: Switch group
Page 165
S
SS
S
W
WW
W
2-1M
2-1M2-1M
2-1M

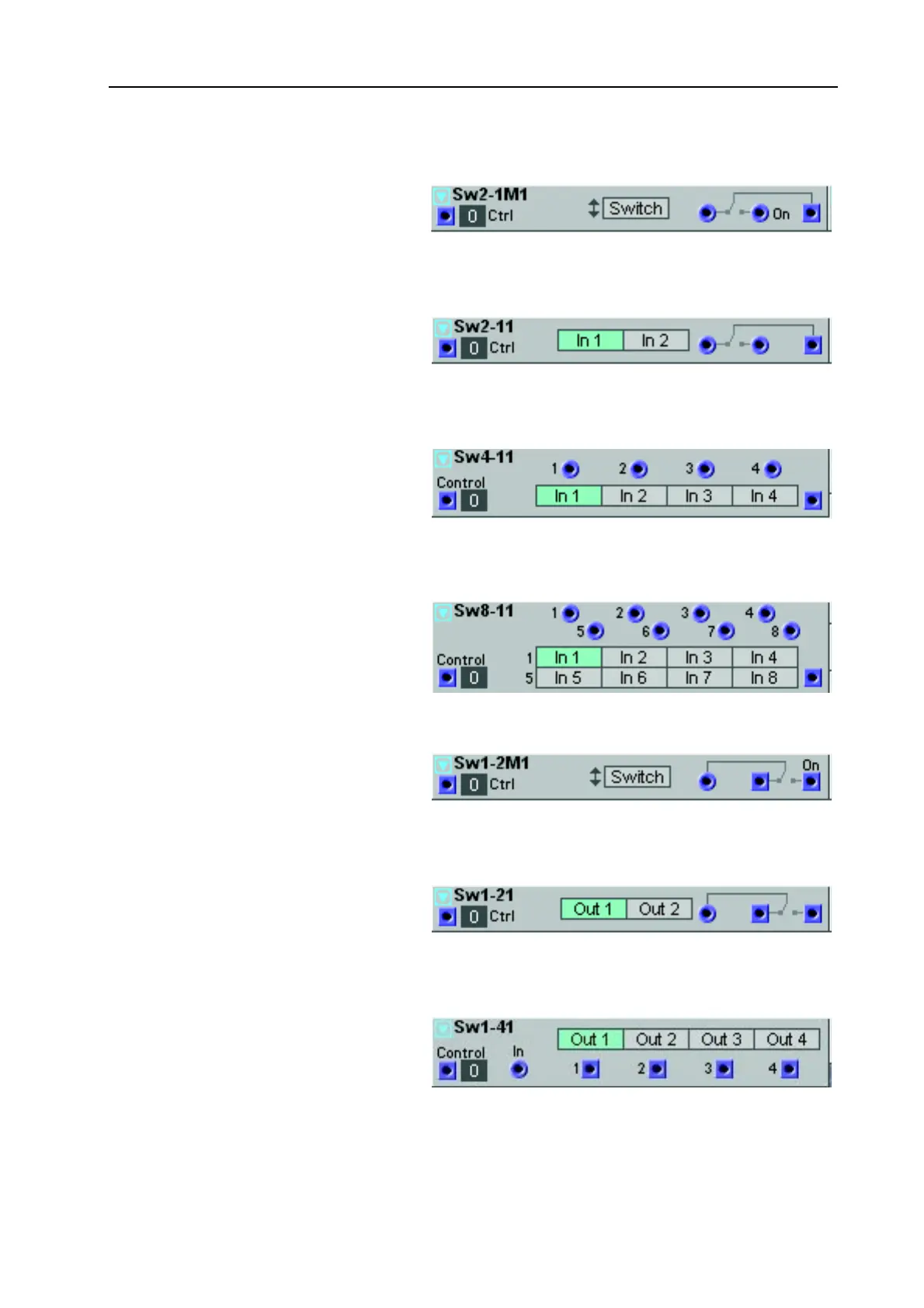

The 2-1SwitchMom module has two in-
puts, one output and one momentary
Switch button which can also be la-
belled. See also "Common Switch parameters”.
S
SS
S
W
WW
W
2-1
2-12-1
2-1
The 2-1Switch has two inputs, one out-
put and two Channel Select radio but-
tons which can also be labelled. See also
"Common Switch parameters”.
S
SS
S
W
WW
W
4-1
4-14-1
4-1
The 4-1Switch has four inputs with an
attenuator each, one output and four
Channel Select radio buttons which can
also be labelled. See also "Common
Switch parameters”.
S
SS
S
W
WW
W
8-1
8-18-1
8-1
The 8-1Switch has eight inputs with an
attenuator each, one output and eight
Channel Select radio buttons which can
also be labelled. See also "Common
Switch parameters”
S
SS
S
W
WW
W
1-2M
1-2M1-2M
1-2M
The 1-2SwitchMom module has one in-
put, two outputs and one momentary
Switch button which can also be la-
belled. See also "Common Switch parameters”.
S
SS
S
W
WW
W
1-2
1-21-2
1-2
The 1-2Switch has one input, two out-
puts and two Channel Select radio but-
tons which can also be labelled. See also
"Common Switch parameters”
S
SS
S
W
WW
W
1-4
1-41-4
1-4
The 1-4Switch has one input with an at-
tenuator, four outputs and four Channel
Select radio buttons which can also be
labelled. See also "Common Switch pa-
rameters”

nord modular G2 Specifications

General

Year Released	2004
Polyphony	Varies depending on patch complexity
Oscillators	Multiple, user-configurable
LFOs	Multiple, user-configurable
Inputs	4 x 1/4" (audio)
Outputs	4 x 1/4" (audio)
MIDI	In, Out, Thru
USB	Yes
Display	LCD
Sequencer	Yes
Keyboard	No (desktop module)
Effects	Unlimited (dependent on DSP resources)
