nord modular G2 - Mix4-1 C; Mix4-1 S; Mix8-1 A; Mix8-1 B

NORD MODULAR G2 V1.1 11. Module reference: Mixer group
Page 161
M
MM
M
I
II
IX
XX
X
4-1C
4-1C4-1C
4-1C

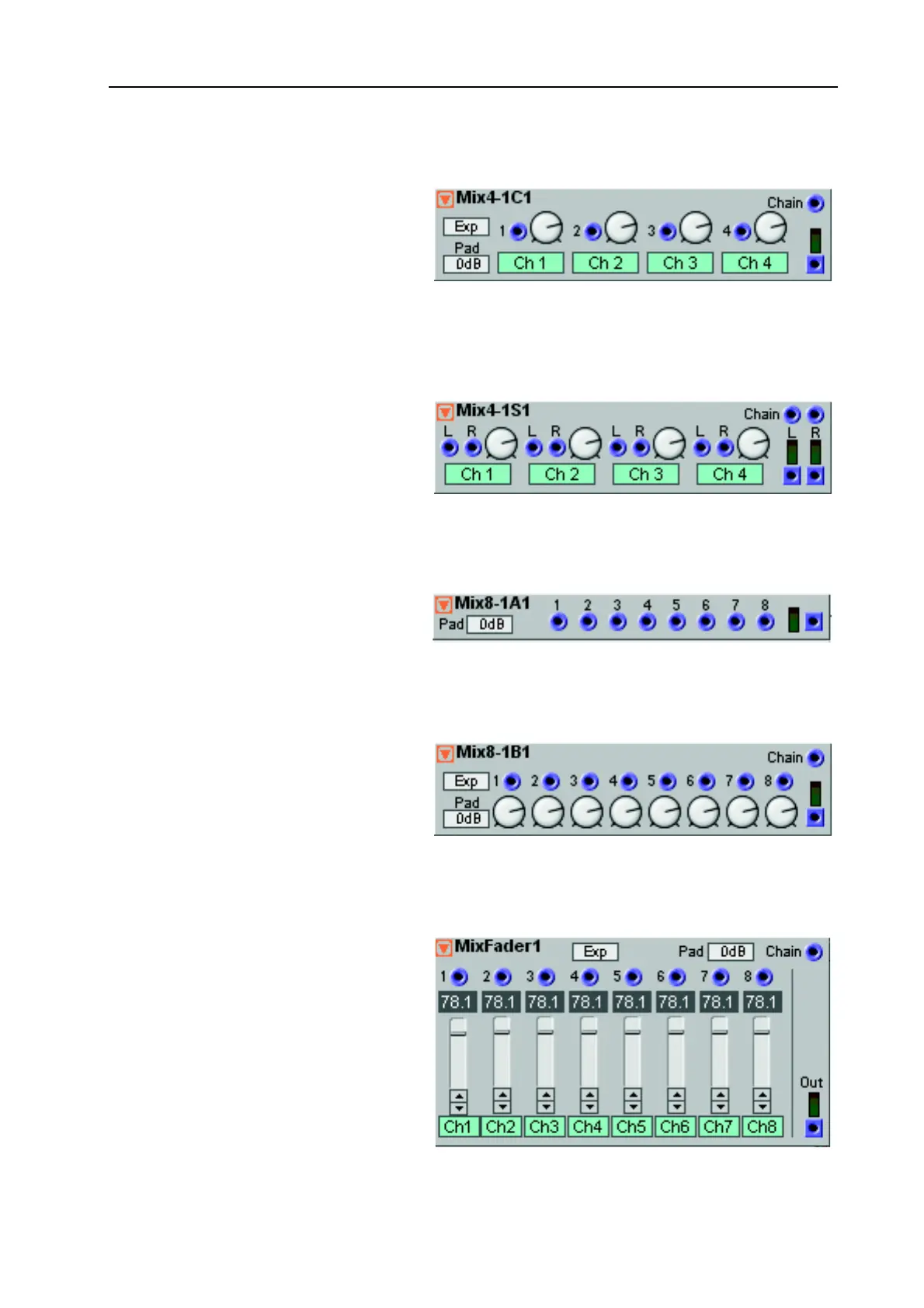

This mixer has four Dynamic Control/
Audio signal inputs, one Chain input
and one output. Each input is equipped
with a separate attenuation control. The
mixer has an On/Off button for each
channel for enabling/disabling the input.
Each On/Off button can be labelled. The mixer also has a -6 dB button for attenuating all inputs by an-
other -6 dB. See also "Common Mixer parameters”.
M
MM
M
I
II
IX
XX
X
4-1S
4-1S4-1S
4-1S
This stereo mixer has four Dynamic
Control/Audio signal input pairs, two
Chain inputs and a stereo output. Each
input pair is equipped with a separate at-
tenuation control. The mixer has an On/
Off button for each channel for enabling/
disabling the input pair. Each On/Off button can be labelled. See also "Common Mixer parameters”.
M
MM
M
I
II
IX
XX
X
8-1A
8-1A8-1A
8-1A
This mixer has eight Dynamic Control/
Audio signal inputs and one output.
P
PP
P
A
AA
AD
DD
D S
SS
SC
CC
CR
RR
RO
OO
OL
LL
LL
LL
L B
BB
BU
UU
UT
TT
TT
TT
TO
OO
ON
NN
N
Click to select 0, -6 or -12 dB attenuation on all input channels. See also "Common Mixer parameters”.
M
MM
M
I
II
IX
XX
X
8-1B
8-1B8-1B
8-1B
This mixer has eight Dynamic Control/
Audio signal inputs, one Chain input
and one output. Each input is equipped
with a separate attenuation control. The
mixer also has a -6 dB button for attenu-
ating all inputs by another -6 dB. See also
"Common Mixer parameters”.
M
MM
M
I
II
IX
XX
X
F
FF
F
A
AA
AD
DD
DE
EE
ER
RR
R
This mixer has eight Dynamic Control/
Audio signal inputs, one Chain input
and one output. Each input is equipped
with a separate attenuation slider. The
mixer has an On/Off button for each
channel for enabling/disabling the input.
Each On/Off button can be labelled. The
mixer also has a -6 dB button for attenu-
ating all inputs by another -6 dB. See also
"Common Mixer parameters”.
