Sine1 is a phase modulated sine

wave. At 50% Shape setting, the

signal is a perfect sine wave and

at 99% similar to a sawtooth

wave. When the Shape is modu-

lated with negative values, the

signal is “mirrored”.

Sine2 is a Sine -> Double Sine

signal. At 50% Shape setting, the

signal is a pure sine wave and at

99% Shape setting, the first half

of the period almost covers the

entire period length and the sec-

ond half is a very narrow “spike”.

When the Shape is modulated

with negative values, the signal is

“mirrored”.

Sine3 is a Sine -> Odd harmonics

signal. At 50% Shape setting, the

signal is a perfect sine wave and

at 99% a lot of odd harmonics

have been added. When the

Shape is modulated with nega-

tive values, the signal is limited at

pure sine wave shape.

Sine4 is a Sine -> Even harmon-

ics signal. At 50% Shape setting,

the signal is a perfect sine wave

and at 99% a lot of even har-

monics have been added. When

the Shape is modulated with

negative values, the signal is lim-

ited at pure sine wave shape.

TriSaw is a Triangle -> Sawtooth

signal. At 50% Shape setting, the

signal is a perfect Triangle and at

99% a perfect Sawtooth. When

the Shape is modulated with

negative values, the signal is

“mirrored”.

Double Saw signal. At 50% Shape setting, the signal consists of two Sawtooth waves in phase with each

other, at 75% two Sawtooth waves slightly phase shifted and at 99% two Sawtooth waves 90 degrees

phase shifted. When the Shape is modulated with negative values, the signal is “mirrored”.

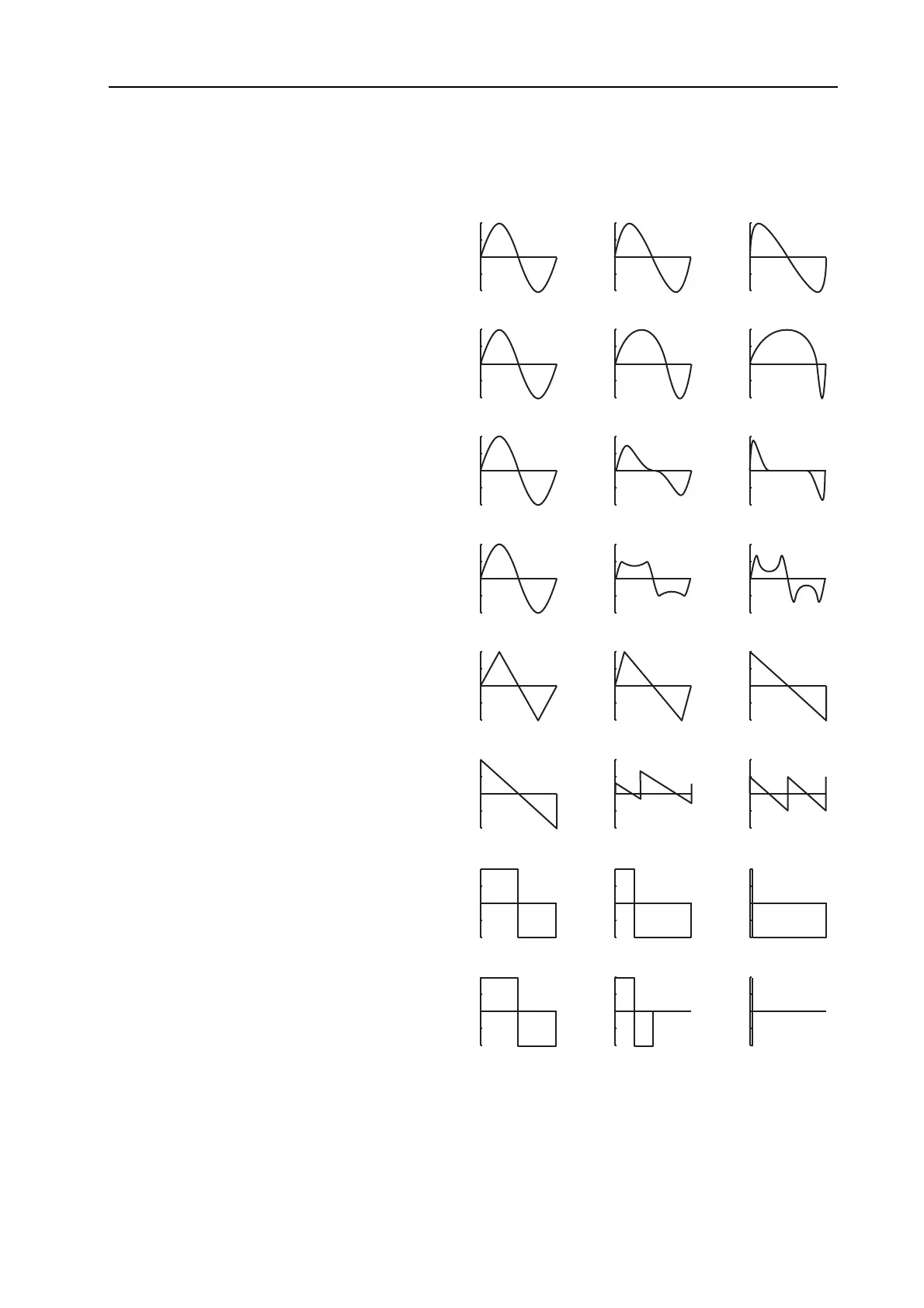

Shape: 50%

Shape: 75% Shape: 99%

Sine1:

Sine2:

Sine3:

Sine4:

TriSaw:

Pulse:

SymPulse:

DoubleSaw:
