nord modular G2 User Manual

11. Module reference: Level group NORD MODULAR G2 V1.1
Page 172
R
RR
R
I
II
IN
NN
NG
GG
G M
MM
MO
OO
OD
DD
DU
UU
UL
LL
LA
AA
AT
TT
TO
OO
OR
RR
R E
EE
EX
XX
XA
AA
AM
MM
MP
PP
PL
LL
LE
EE
E

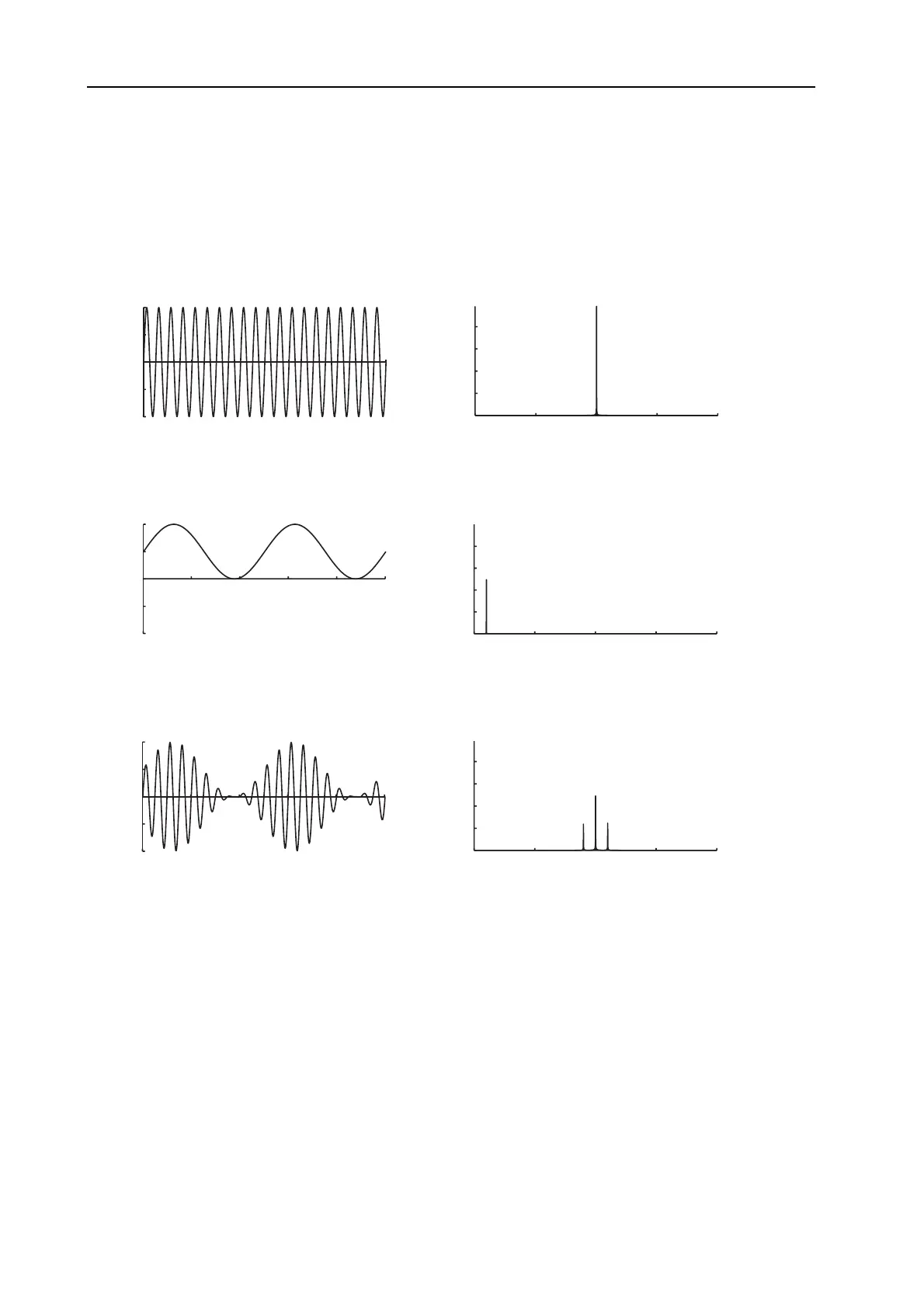

To illustrate what ring (balanced) and amplitude modulation can do to a sound, we have created an ex-
ample with three sine waves, one carrier and two different modulators (Ring (Balanced) and Amplitude
(Unipolar)). The graphs to the left show the amplitude as a function of time, and to the right the ampli-
tude as a function of the frequency.
Amplitude Modulation:
time
amplitude amplitude
frequency
Fig 1. Carrier wave
f
C
time
amplitude amplitude
frequency
Fig 2. AM Modulator wave
time
amplitude amplitude
frequency
Fig 3. Amplitude Modulation
The side bands appear on each
side of the carrier wave on the
frequencies: f
C
-f
M
and f
C
+f
M
f
C

nord modular G2 Specifications

General

Year Released	2004
Polyphony	Varies depending on patch complexity
Oscillators	Multiple, user-configurable
LFOs	Multiple, user-configurable
Inputs	4 x 1/4" (audio)
Outputs	4 x 1/4" (audio)
MIDI	In, Out, Thru
USB	Yes
Display	LCD
Sequencer	Yes
Keyboard	No (desktop module)
Effects	Unlimited (dependent on DSP resources)
