NORD MODULAR G2 V1.1 12. Synthesis basics: Other synthesis and modulation methods
Page 219
As you can see in the figures above, the main practical difference between amplitude- and ring modula-
tion is the sideband amplitudes and the appearance of the carrier wave. Another difference is that the re-
sulting ring modulation wave phase-shifts 180 degrees every half modulator period.
If more complex waveforms are used for amplitude- or ring modulation, sidebands will be generated for
each partial of the signal.
time
amplitude amplitude
frequency

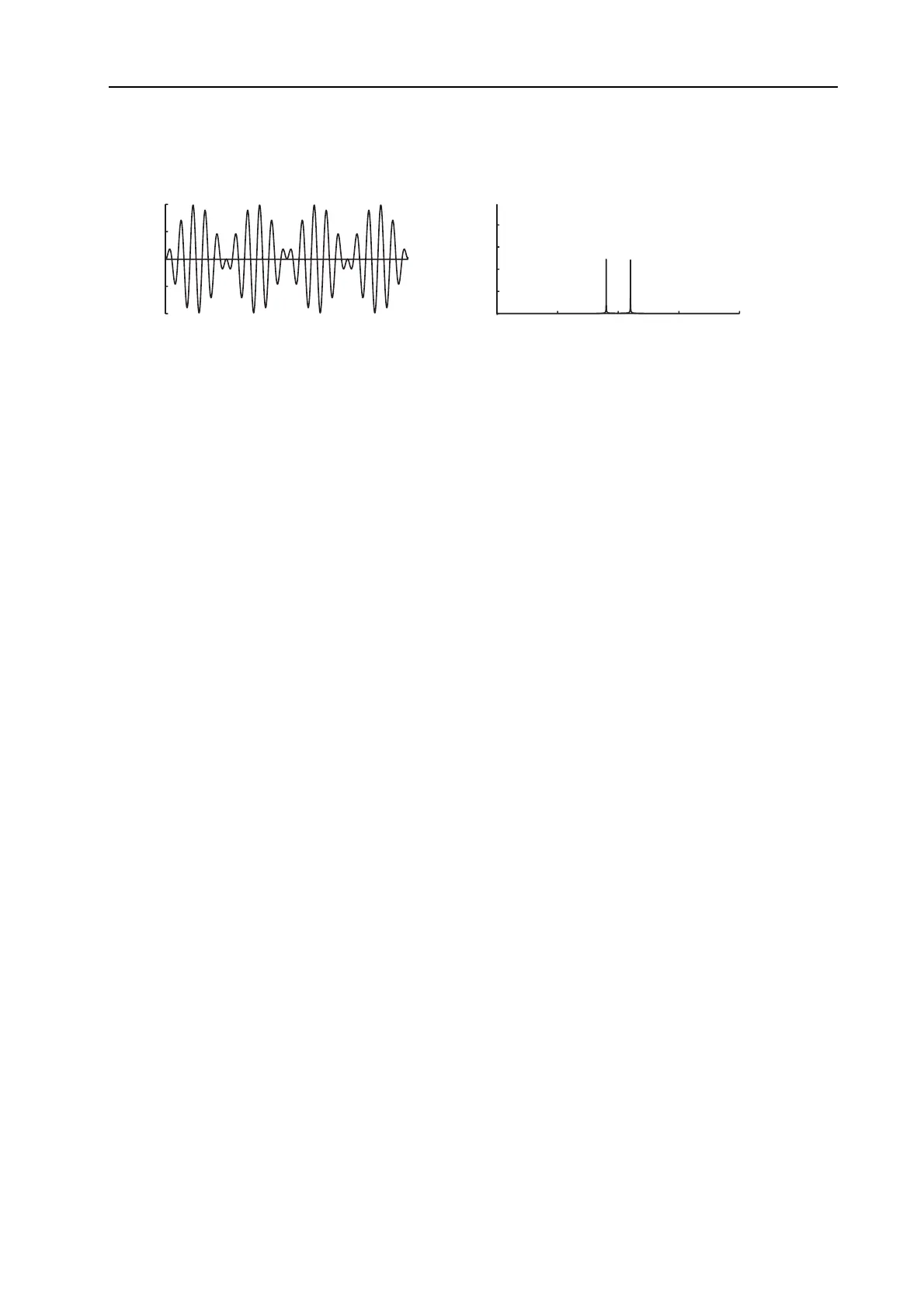

Fig 3. Ring Modulation
The side bands appear on each
side of the carrier wave on the
frequencies: f
C
-f
M
and f
C
+f
M

nord modular G2 Specifications

General

Year Released	2004
Polyphony	Varies depending on patch complexity
Oscillators	Multiple, user-configurable
LFOs	Multiple, user-configurable
Inputs	4 x 1/4" (audio)
Outputs	4 x 1/4" (audio)
MIDI	In, Out, Thru
USB	Yes
Display	LCD
Sequencer	Yes
Keyboard	No (desktop module)
Effects	Unlimited (dependent on DSP resources)
