CHAPTER 3 REPAIR PROCEDURES
3.1.13 Position Sensor Assembly Removal from Monoblock in Precision Top Loader
Balance
1.Remove four screws which secure the overload protection to the Monoblock and remove the overload protection.
2.Unscrew the three fastener screws of the Position Sensor Assembly.
3.Raise the Position Sensor Assembly, which is held by the magnetic field.
4.If the Position Sensor Assembly has to be changed: unsolder Flexible Board (1), see Figure 3-10.
1
102
POSITION SENSOR ASSEMBLY

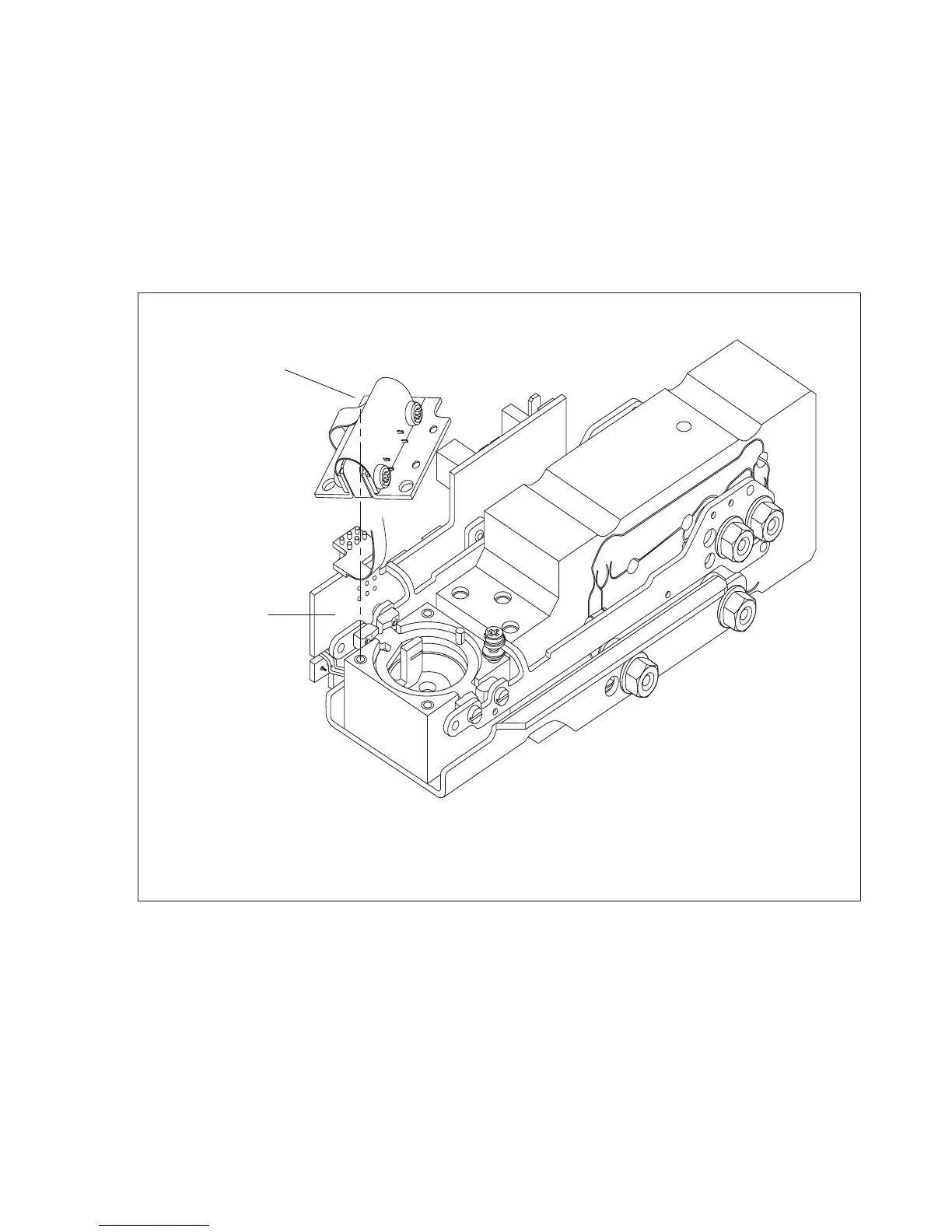

Figure 3-10. Removing Position Sensor Assembly from Monoblock.
