OHAUS EXPLORER - Removing the Display Module on Explorer High Capacity Top Loader Balances

3-25
CHAPTER 3 REPAIR PROCEDURES
3.2.6 Removing the Display Module on Explorer Precision Top Loader Balances (Cont.)

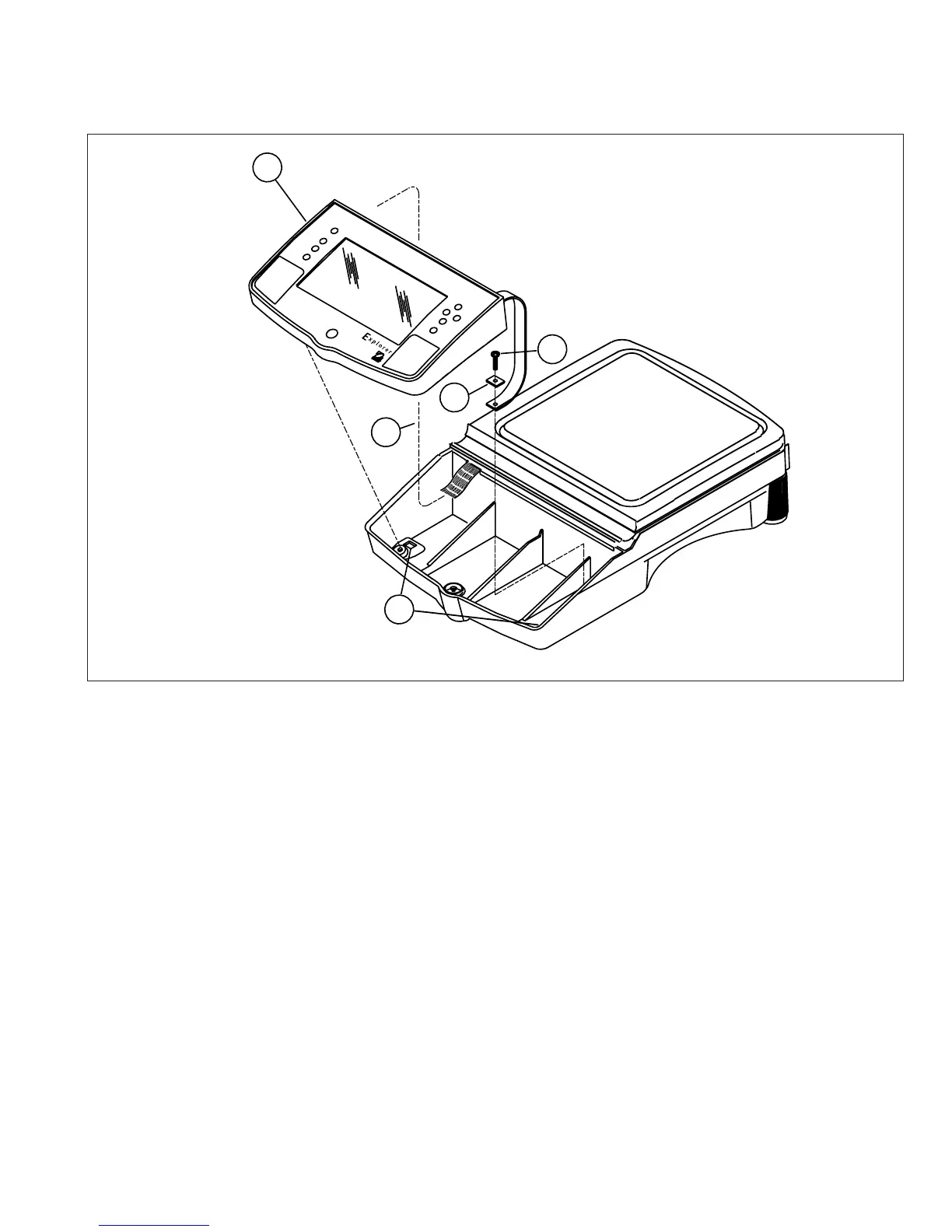

Figure 3-26. Display Removal/Installation for Explorer Precision Top Loader Balance.
3.2.7 Removing the Display Module on Explorer High Capacity Top Loader Balances
(See Figure 3-20)
1.Remove power from the balance.
2.Remove Pan (1) and place balance with bottom facing you.
3.Remove two screws from underneath the display.
4.Underneath the front of the balance, press the two tabs (1) towards the rear of the balance, this will release
the display.
5.Carefully lift the display (2) up from the balance and swing towards the rear. You will notice a grounding strap
which is screwed into the base of the balance.
6.Remove screw (3) and flat washer (4) from the grounding strap.
7.Carefully unplug the Main PCB Assembly Ribbon Cable (5) from the connector on the Display PCB Assembly
of the display module.
>O/T<
>O/T<
3
2
1
4
5
