APPENDIX A - EXPLORER EP LOADER
A-4
A.7 Personality Data Label Entry
1. Locate the Personality Data Label on the balance. Refer to Figure A-1.
a. The data will be located on the RF shield.
CAUTION
This software cannot be used to download personality data for models having
internal calibration (AutoCal). Only the TC data can be downloaded.
2. In the same order as listed on the label, input the Personality Data Label information into
the Personality Data grid of the EP Loader. After entering the data in Figure A-2 the loader
willlook like the picture below. See next page for display.
610 x 1 mg 00000768C1A2 04.08.2003
83C1 03E4 F92F 1C52 2990 070C 42CF 17E7 CF8F 8E5F AB2F
E3AD B70F 0F3B 74D3 4FB4 01B0 9A06 B92F 1C46 6957 0F38
475A 4C5F CB83 8C1A F8DB 1DA6 2957 1F50 408A 486D B1E7
DD32 F92F 1C52 2957 0F38 408A 4EB6 81E1

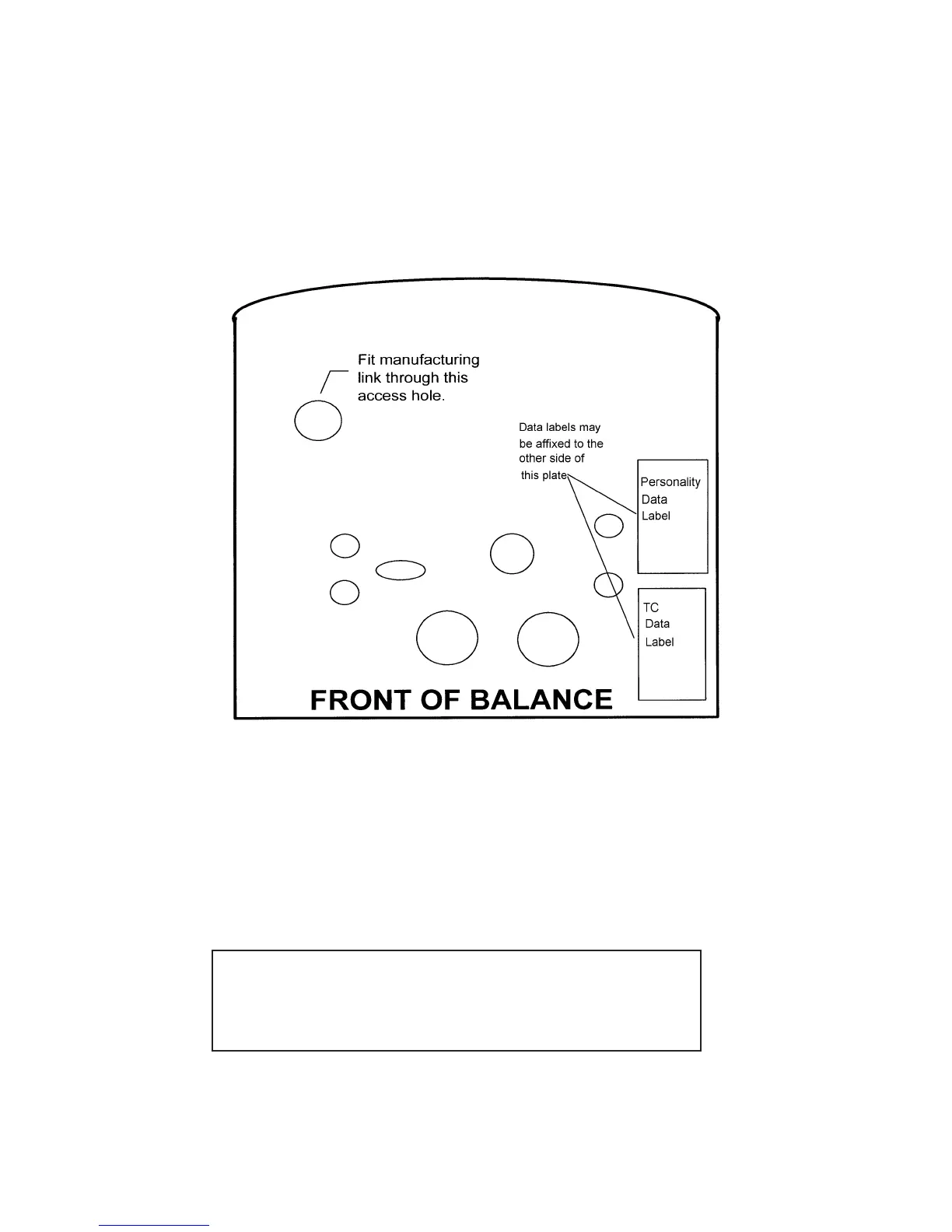

Figure A-1. RF Shield
Figure A-2. Personality Data
