8 Pulse Outputs
8-68
CJ2M CPU Unit Pulse I/O Module User’s Manual
z PLC Setup
Note The setting of the option to use the origin search is read from the PLC Setup when the power supply is
turned ON.
z DM Area Settings
• Starting Frequency
• PLS2(887) Settings to Move from Origin to Position A
Preparations
Setting

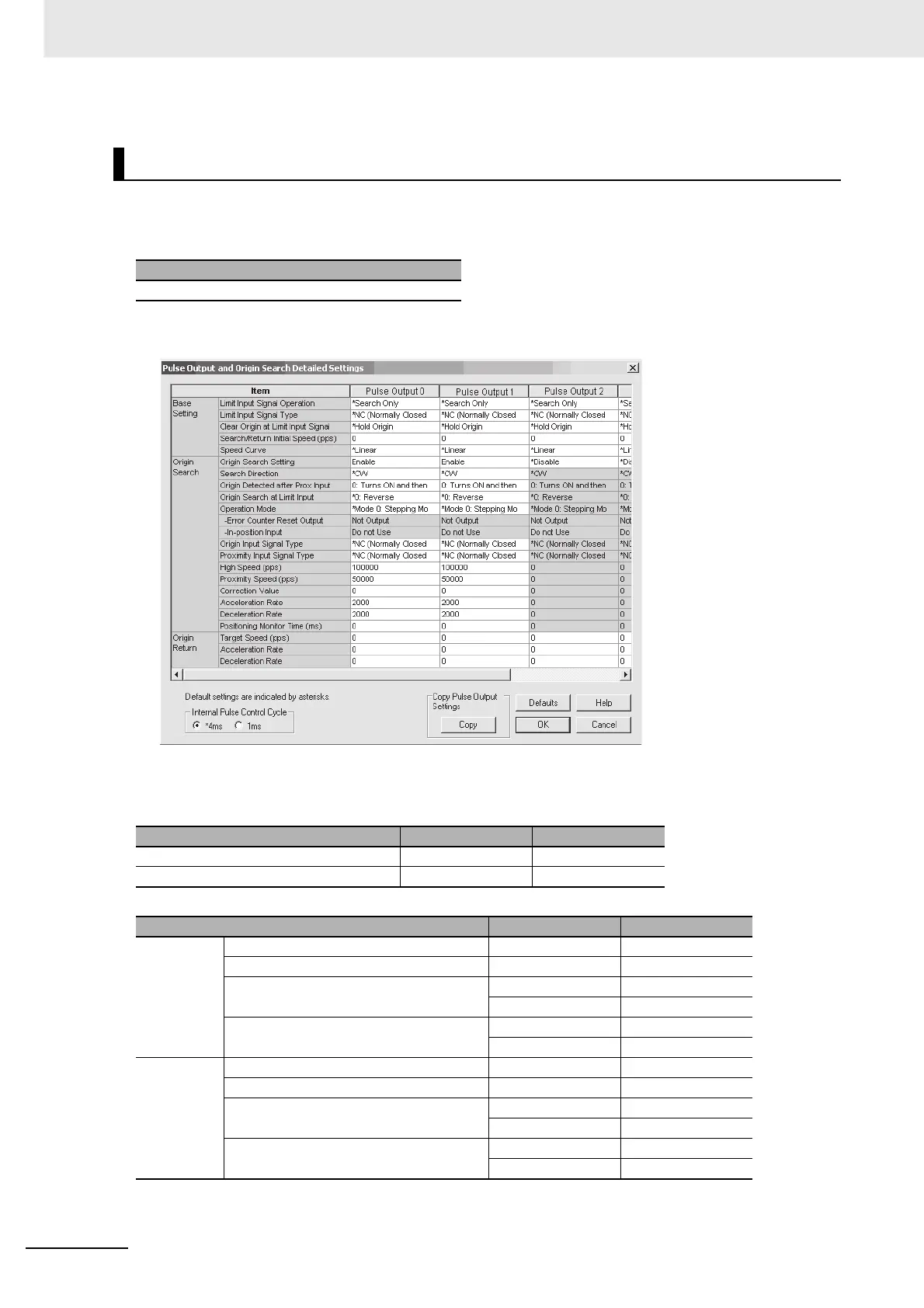

Origin Search Detailed Settings for pulse output 0
Setting Word Data
X axis starting frequency D0 #0000
Y axis starting frequency D2 #0000
Setting Word Data
X axis Acceleration rate: 2,000 pps/4 ms D10 #07D0
Deceleration rate: 2,000 pps/4 ms D11 #07D0
Target frequency: 100,000 pps D12 #86A0
D13 #0001
Number of output pulses: 5,000 pulses D14 #1388
D15 #0000
Y axis Acceleration rate: 2,000 pps/4 ms D20 #07D0
Deceleration rate: 2,000 pps/4 ms D21 #07D0
Target frequency: 100,000 pps D22 #86A0
D23 #0001
Number of output pulses: 5,000 pulses D24 #1388
D25 #0000
