Connections to Serial Communications Option Boards Appendix F
Note (1) The maximum cable length for RS-232C is 15 m. The RS-232C standard, however, does not cover
baud rates above 19.2 Kbps. Refer to the manual for the device being connected to confirm support.
(2) The CP1W-CIF11 is a non-isolated board, so the maximum transmission distance is 50 m. The
CP1W-CIF12 is an isolated board, so the maximum transmission distance is 500m. For distances
over 50 m, use the RS-422A/485 port on the CP1W-CIF12 directly, or the RS-232C port on the
CP1W-CIF01 and then connect through the NT-AL001 Link Adapter, which is isolated. Doing so will
enable a maximum transmission distance of 500 m.
(3) The maximum cable length is limited to 2 m when an NT-AL001 Link Adapter is connected.
(4) Branch lines must be a maximum of 10 m long.

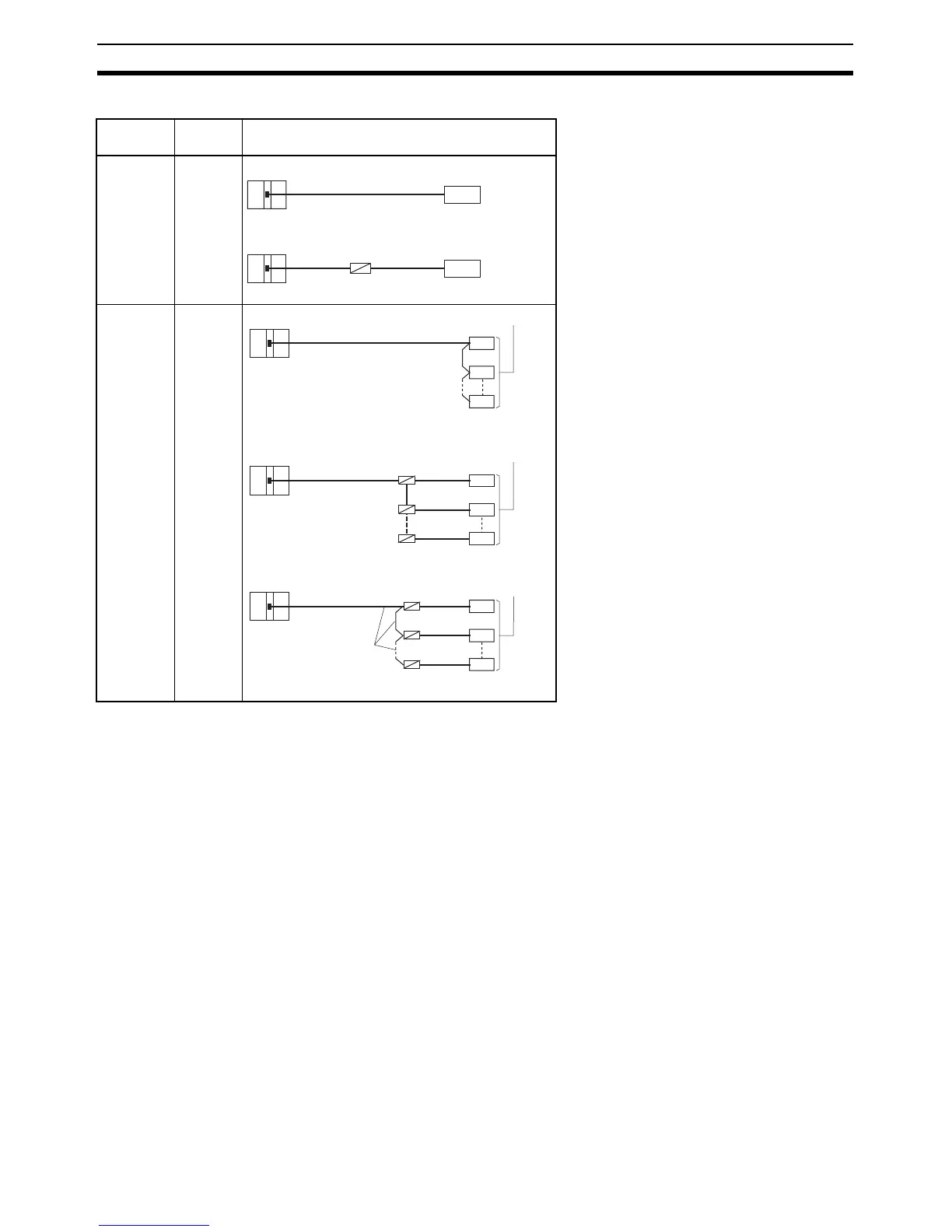

Connection Examples
The connection examples in the remainder of this section show only the basic connection diagrams. We rec-
ommend that appropriate noise countermeasures be taken in actual applications, including the use of shielded
twisted-pair cables. Refer to RS-232C and RS-422A/485 Wiring for actual wiring methods.
Port Configu-
ration
Schematic diagram
RS-422A/
485
1:1
RS-422A/
485
1:N
RS-422A/485
RS-232C
interface
RS-422A/485
interface
NT-AL001
RS-232C
Resistance ON
5-V
To Next Page
