Omron E5CSV User Manual

Section 1 Overview
1-4
Overview
1.2 I/O Configuration and Main Functions

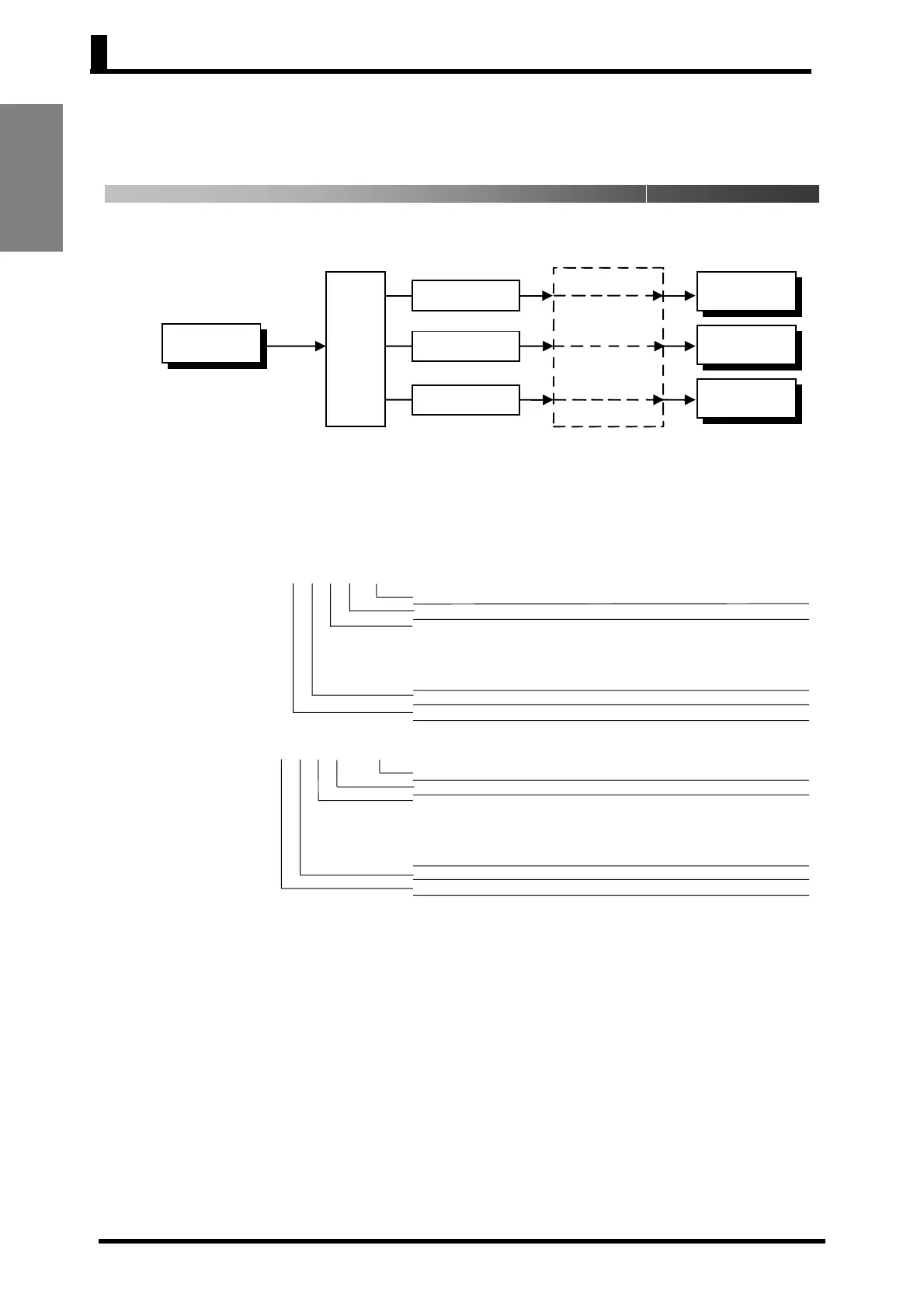

■ I/O Configuration
● E5CSV and E5CS-U
* Functions can be assigned individually for each output by changing the set
values for the control output assignment, the alarm 1 assignment, and the
alarm 2 assignment in the initial setting level.
■ Basic Model Number
● Models with Terminal Blocks
E5CSV - @ @ @ @ -@
Case color Blank: Black W : Light gray
Voltage specifications Blank: 100 to 240 VAC D : 24 VAC/VDC
Input type K,J : Thermocouple (K, J)
P : Platinum resistance thermometer
G : Thermistor
T : Multi-input (thermocouple/platinum resistance
thermometer) models
Alarm output Blank : None 1 : One output 2 : Two outputs
Control output R : Relay Q : Voltage output (for driving the SSR)
● Plug-in Models
E5CS - @ @ @ @ U-@
Case color Blank: Black W: Light gray
Voltage specifications Blank: 100 to 240 VAC D: 24 VAC/VDC
Input type K,J : Thermocouple (K, J)
P : Platinum resistance thermometer
G : Thermistor
T : Multi-input (thermocouple/platinum resistance
thermometer) models
Alarm output Blank : None 1 : One output 2 : Two outputs
Control output R : Relay Q: Voltage output (for driving the SSR)
A functional explanation is provided here for illustration, but models are not necessarily
available for all possible combinations. Refer to the catalog when ordering.
■ Main
Functions
This section introduces the main E5CSV/E5CS-U functions.
For details on particular functions and how to use them, refer to
SECTION 3 and following sections.
Thermocouple: K, J, L
Platinum resistance:
thermometer
Pt100, JPt100
Thermistor: E52-THE@@
Multi-input (thermocouple/platinum resistance thermometer) models:
● Input Sensor
Types
K, J, L, T, U, N, R, Pt100, JPt100
Temperature
input
Control
section
Control function
Alarm 2 function
Alarm 1 function
Alarm output 1
Alarm output 2
Control out
p
ut

Omron E5CSV Specifications

General

Setting Method	Digital setting using front panel keys
Dimensions	48 x 48 x 78 mm (W x H x D)
Number of Control Outputs	1
Control Method	ON/OFF control or PID control
Input Types	Thermocouple
Supply Voltage	100 to 240 VAC
Output Type	Relay or Voltage (for driving SSR)
Display	7-segment digital display
Mounting Method	Panel mounting
Setting Resolution	0.1 °C or 1 °C
Power Supply Voltage	100 to 240 VAC
Ambient Operating Humidity	25% to 85% RH
Ambient Operating Temperature	-10 to 55°C (with no icing or condensation)
