Omron E5CSV User Manual

Section 5 Parameters
5-8
Parameters
5.3 Moving to the Initial Setting Level

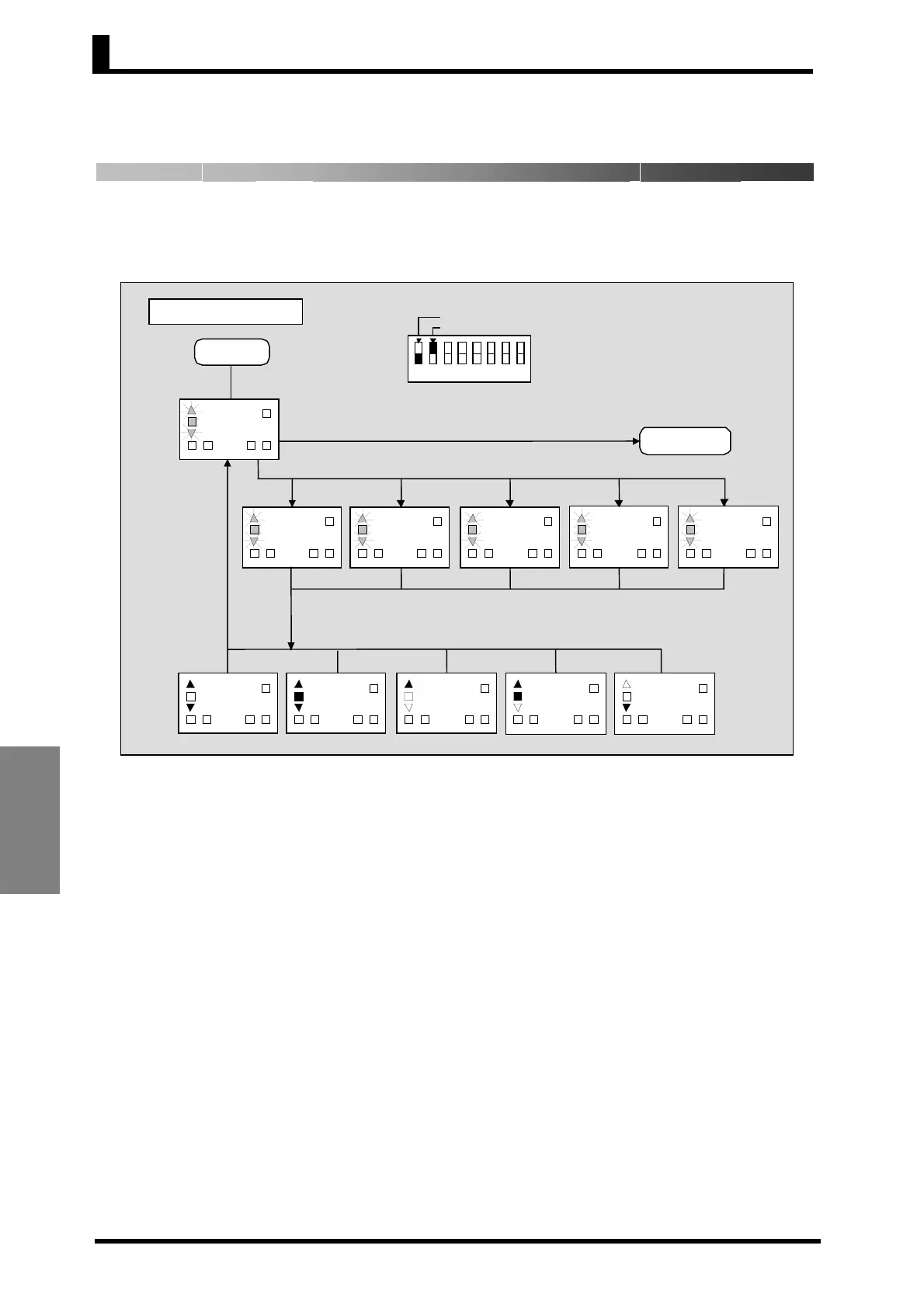

The initial setting level is used to make the settings that maximize Temperature Controller
performance. Control stops when moving to the initial setting level. The methods for moving to the
initial setting level are described here.
Power ON
Initial setting level
- 0 -
1 2 ALM ALM SP
OUT
- 1 -
1 2 ALM ALM SP
OUT
- 2 -
1 2
ALM
ALM SP
OUT
- 3 -
1 2ALMALMSP
OUT
- 4 -
1 2ALMALMSP
OUT
- 5 -
1 2 ALM ALMSP
OUT
､
Press the
M
Key and move to the applicable initial setting level display.
Press the
M
Key
for at least 3 s.
Press the
U
and
D
Keys to select the initial setting level.
OFF
ON
OFF
ON
Protect switch
INIT
1
2
3
4
5
6
- 5 -
1 2ALM ALM SP
OUT
- 4 -
1 2 ALMALMSP
OUT
- 3 -
1 2ALMALMSP
OUT
- 2 -
1 2ALMALMSP
OUT
- 1 -
1 2 ALM ALMSP
OUT
Operation level
(If no key input is entered within 5 s, a software reset is executed and the
display m
oves to the operation level.)
Protect switch = OFF
INIT switch = ON
Hold down the
U
Key.
Initial setting level selection display
The status of the control mode
switches 1 to 6 is ignored.
