Omron E5CSV User Manual

3.9 Shifting Input Values
3-17
Basic
Operations
● Shift Method
1.
Make sure that the control target temperature (C) and Controller
temperature (B) match, with the control target temperature near
the set point.
2. Check the control target temperature (B) and the Controller
readout (A).
Subtract the Controller readout temperature (A) from the control
target temperature (B)
Set the result as the input shift value. The shift is illustrated
below.
3. After setting the input shift values, check the Controller readout
(A) and the control target temperature (B). If they are almost the
same, this completes shifting the temperature input.

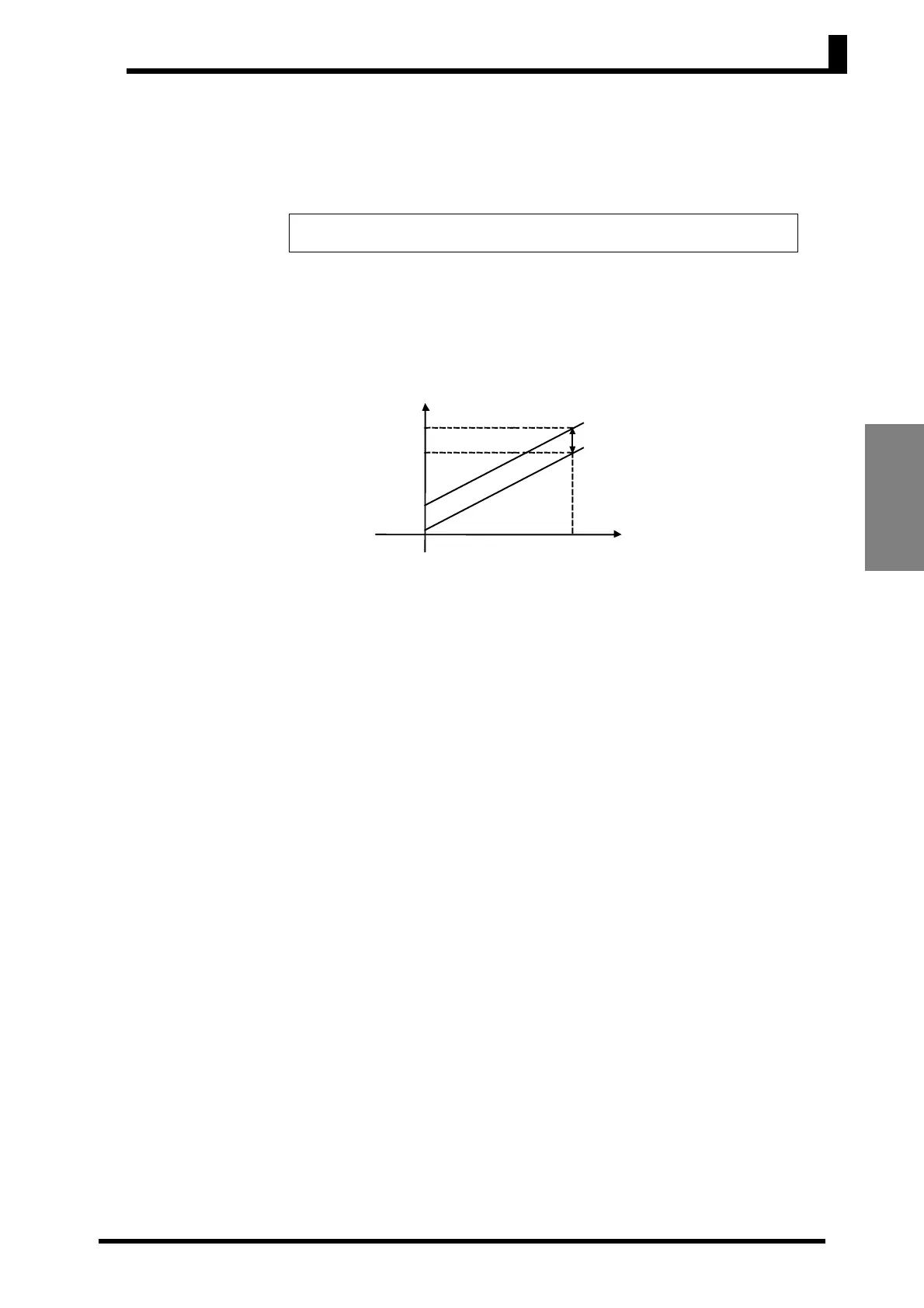

Input Shift
Controller readout (A)
Controller readout
after shifting
(e.g., 120°C)
0
After shifting
Input shift value (e.g., 10°C)
Before shifting
Control target
temperature (B)
Near set point
(e.g., 120°C)
Controller readout
before
shifting
(e.g., 110°C)

Omron E5CSV Specifications

General

Setting Method	Digital setting using front panel keys
Dimensions	48 x 48 x 78 mm (W x H x D)
Number of Control Outputs	1
Control Method	ON/OFF control or PID control
Input Types	Thermocouple
Supply Voltage	100 to 240 VAC
Output Type	Relay or Voltage (for driving SSR)
Display	7-segment digital display
Mounting Method	Panel mounting
Setting Resolution	0.1 °C or 1 °C
Power Supply Voltage	100 to 240 VAC
Ambient Operating Humidity	25% to 85% RH
Ambient Operating Temperature	-10 to 55°C (with no icing or condensation)
