Omron E5CSV User Manual

Section 4 Operations for Applications
4-2
Operations for
Applications

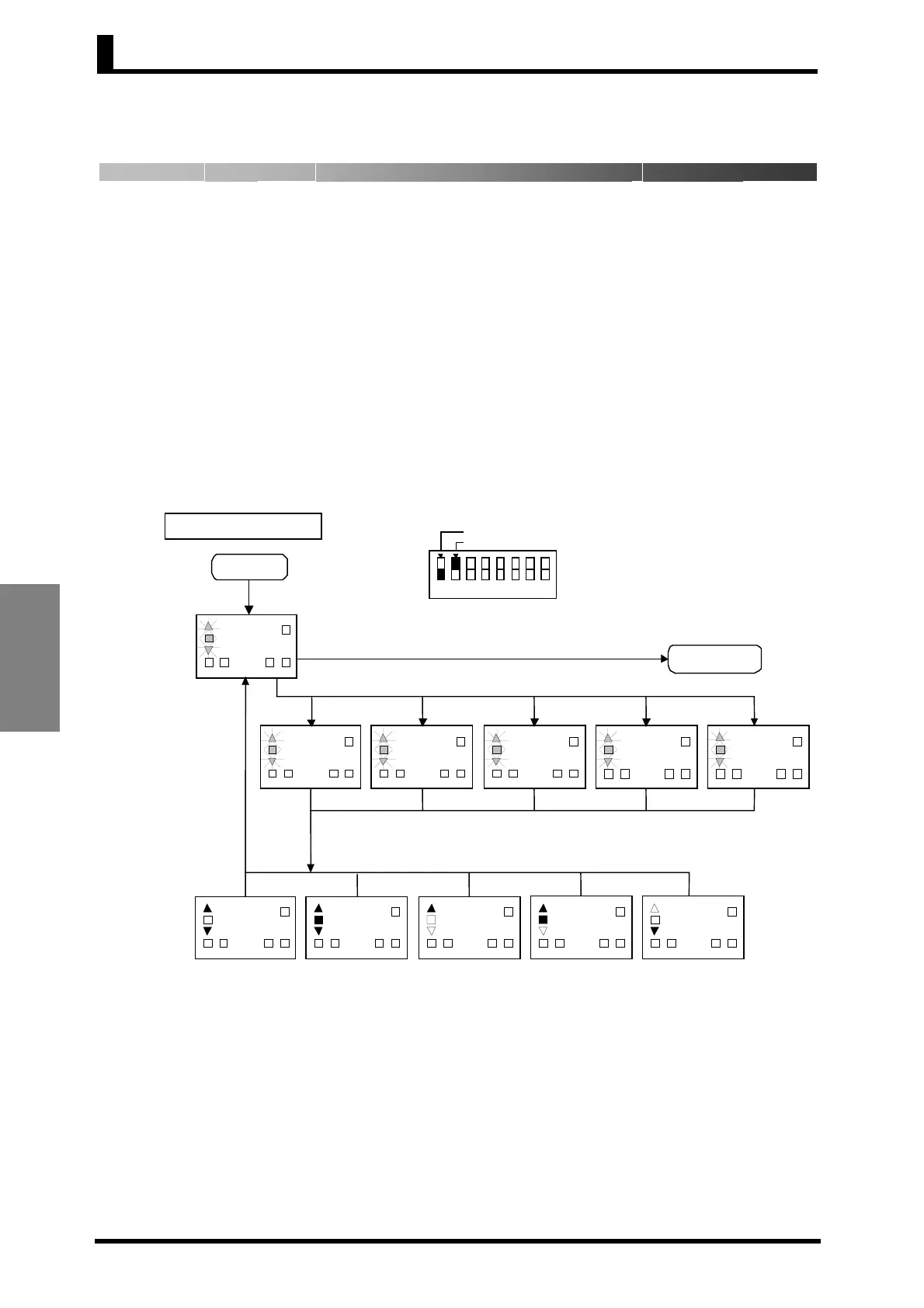

4.1 Moving to the Initial Setting Level
•
To move to the initial setting level, turn OFF the protect switch, turn
ON the INIT switch, and then hold down the U Key while turning ON
the power. The status of the control mode switches 1 to 6 is ignored.
1. From the initial setting level selection display (-0-), press the
U/D Keys and select the initial setting level. (If no key input is
entered within 5 s, a software reset is executed and the display
moves to the operation level.) All deviation indicators (▲■▼) will
flash in the initial setting level selection display.
2. Press the M Key and move to the applicable initial setting level
display.
3. Press the M Key for at least 3 s to return to the initial setting level
selection display.
- 0 -
1
2 ALM ALM SP
OUT
Power ON
Initial setting level
- 1 -
1 2 ALM ALM SP
OUT
- 2 -
1 2ALM ALM SP
OUT
- 3 -
1 2ALMALMSP
OUT
- 4 -
1 2ALMALMSP
OUT
- 5 -
1 2 ALM ALM SP
OUT
Press the
M
Key and move to the applicable initial setting level display.
Press the
M
Key
for at least 3 s.
Press the
U
and
D
Keys to select the initial setting level.
OFF
ON
OFF
ON
Protect switch
INIT
1
2
3
4
5
6
-
5
-
1 2
ALMALM
SP
OUT
- 4 -
1
2 ALM ALMSP
OUT
- 3 -
1 2
ALMALMSP
OUT
- 2 -
1
2ALMALMSP
OUT
- 1 -
1
2 ALM ALM SP
OUT
Operation level
(If no key input is entered within 5 s, a software reset is executed
and the display moves to the operation level.)
P
rotect sw
i
tc
h
=
OFF
INIT switch = ON
Hold down the
U
Key.
Initial setting level selection display
The status of the control
mode switches 1 to 6 is
ignored.
Initial setting level selection display
