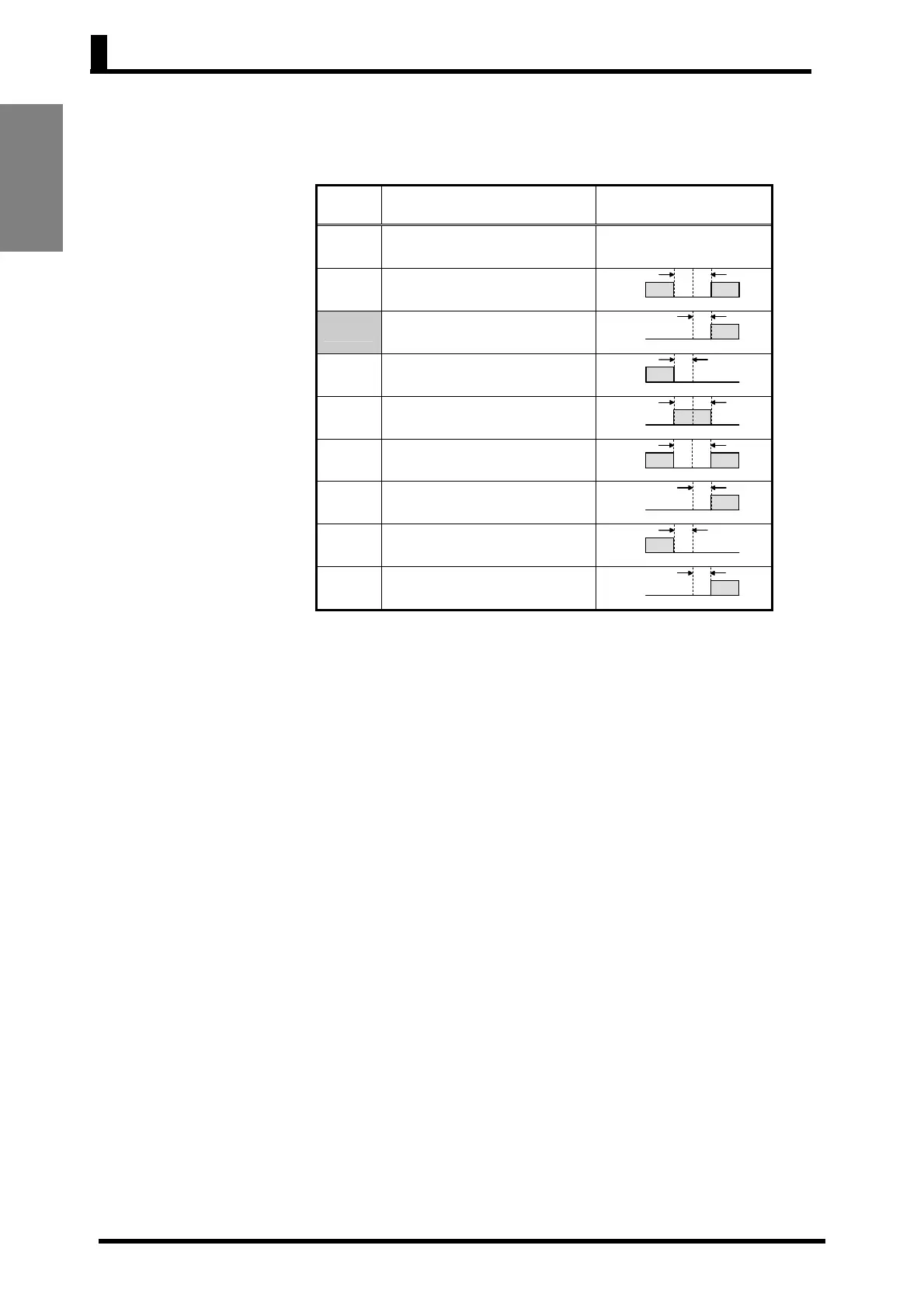

● Alarm Mode
Switch
• Select the alarm mode switch number when changing to the alarm
mode. This switch is not provided in models without alarms.)
Set
value
Alarm type
Alarm output
operation
0,9 Alarm function OFF Output OFF
1 Upper- and lower-limit
2 Upper-limit
3 Lower-limit
4 Upper- and lower-limit range
5
Upper- and lower-limit with
standby sequence
6
Upper-limit with standby
sequence
7
Lower-limit with standby
sequence
8 Absolute-value upper-limit
* Alarm values 1 to 7: Set the deviation from the SP (set point) in
the alarm value (X).
Alarm 8: Set the absolute value from 0°C/°F in the alarm value (Y).
* The default is 2 (upper-limit alarm).
OFF
ON
SP
XX
OFF
ON
SP
XX
ON
OFF
SP
XX
OFF
ON
SP
X
OFF
ON
SP
X
OFF
ON
SP
X
OFF
ON
SP
X
OFF
ON
０
Y

Omron E5CSV Specifications

General

Setting Method	Digital setting using front panel keys
Dimensions	48 x 48 x 78 mm (W x H x D)
Number of Control Outputs	1
Control Method	ON/OFF control or PID control
Input Types	Thermocouple
Supply Voltage	100 to 240 VAC
Output Type	Relay or Voltage (for driving SSR)
Display	7-segment digital display
Mounting Method	Panel mounting
Setting Resolution	0.1 °C or 1 °C
Power Supply Voltage	100 to 240 VAC
Ambient Operating Humidity	25% to 85% RH
Ambient Operating Temperature	-10 to 55°C (with no icing or condensation)
