Omron F3SJ-A series User Manual

120

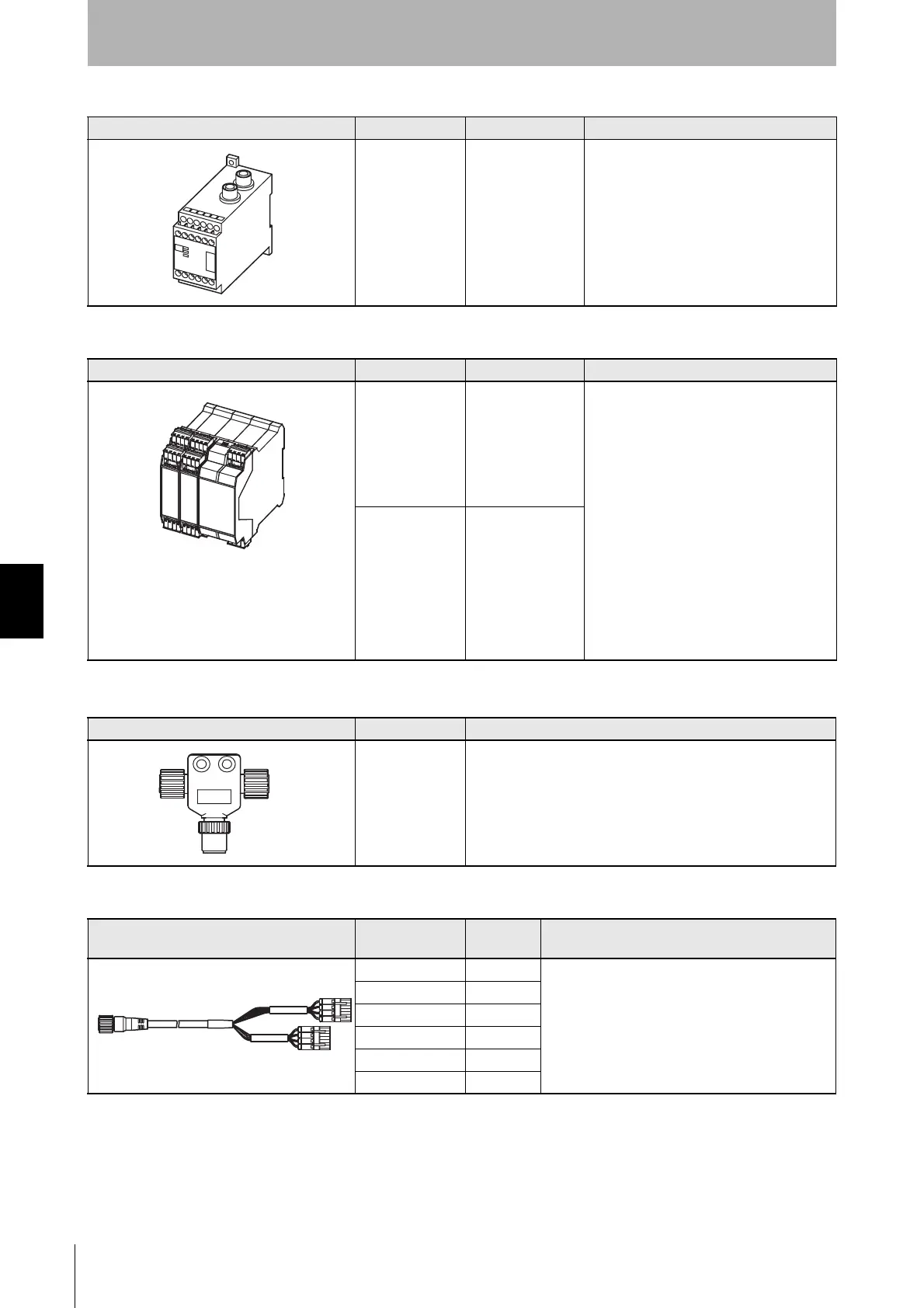

Chapter6 Accessories (Sold Separately)
F3SJ-A
User’s Manual
Appendix
Control unit
Control unit
Branch connector for safety light curtains
Cable with connectors on both ends for use with branch connector
Appearance Model name Output Note
F3SP-B1P Relay, 3a+1b contact
- F39-JCB cable with connectors on both
ends is required.
- F3SJ with PNP output can be connected.
- Cannot be used as a muting system.
Appearance Model name Output Note
F3SX-N-
Relay, 2a+1b contact
(expandable)
- Connector connection is possible by using
an F39-JCB cable with connectors on both
ends and an F39-JCT branch connector
for safety light curtains. Connection is
possible only with an F39-JCA cable with
connector on one end.
- A door switch, two-hand control switch,
single beam, or relay unit can be added to
the F3SX.
- F3SJ with PNP output can be connected.
- Can be used as a muting system if an F39-
JCA cable with connectors at both ends is
used.
- Various settings can be changed and input/
output terminals can be monitored using the
setting support software for F3SX.
F3SX-E- Solid-state output
(DC solid-state
safety output X 2,
Auxiliary output X
3)
Appearance Model name Note
F39-CN5 Wire-saving connector for connection with F3SX
Use in combination with F39-JCT.
Appearance Model name
Cable
length
Note
F39-JC1T 1m Wire-saving cable for connection with F3SX
Use in combination with F39-CN5.
F39-JC3T 3m
F39-JC5T 5m
F39-JC7T 7m
F39-JC10T 10m
F39-JC15T 15m
