Omron F3SJ-A series User Manual

121
F3SJ-A
User’s Manual
Chapter6 Accessories (Sold Separately)
Appendix
E
Control unit
Control unit
Control unit
Control unit
Spatter protection cover (2 cables per set, common for emitter/receiver)

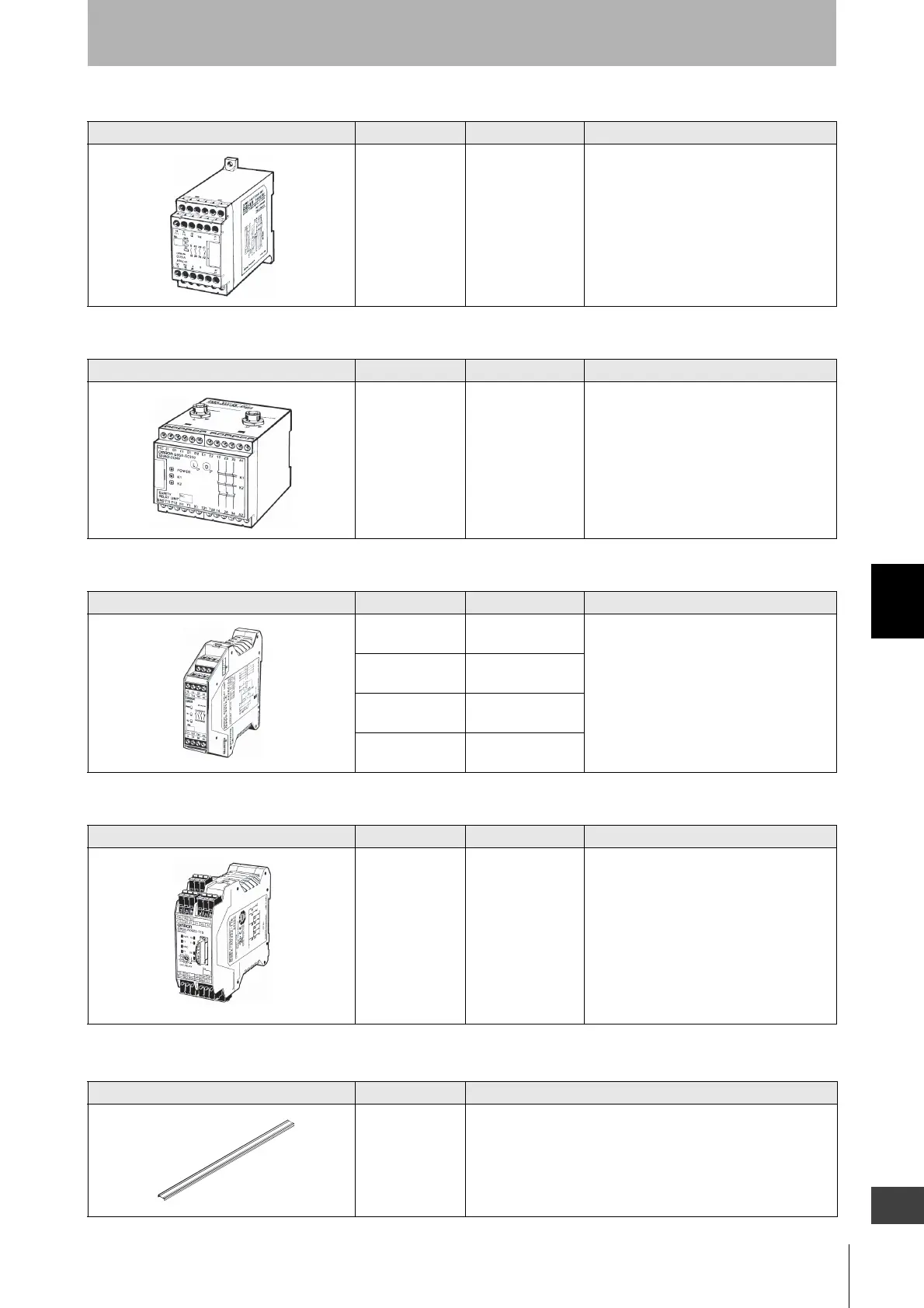

Appearance Model name Output Note
G9SA-301 Relay, 3a+1b contact
- F39-JCA cable with connector on one
end is required.
- F3SJ with PNP output can be connected.
- Type with 5a+1b contact is also available.
Appearance Model name Output Note
G9SA-300-SC Relay, 3a contact
- One set of F39-JCC cables with
connectors on both ends is required.
- When extending the cable length, use 1 set
of F39-JCC and multiple sets of F39-
JCB.
- F3SJ with PNP output can be connected.
- Cannot be used as a muting system.
Appearance Model name Output Note
G9SB-301-B Auto reset, 3a+1b
contact
- F39-JCA cable with connector on one
end is required.
- F3SJ with PNP output can be connected.
- The thickness for 3a+1b contact type
output is 25 mm.
- The thickness for 2a contact type output is
17.5 mm.
G9SB-301-D
Manual reset,
3a+1b contact
G9SB-200-B Auto reset, 2a
contact
G9SB-200-D Manual reset, 2a
contact
Appearance Model name Output Note
G9SX-AD322-T15 Solid-state output
(Instantaneous
output X 3, OFF-
delay output X 2)
- F39-JCA cable with connector on one
end is required.
- F3SJ with PNP output can be connected.
- OFF-delay within 15 seconds can be set to
16 levels.
- Use as instantaneous output is possible by
setting OFF-delay output to 0 seconds.
- Can be configured for partial control and
total control.
- Relay unit can also be connected.
Appearance Model name Note
F39-HJ In this table, the  in the model indicates the same 4-digit
number as the protective height ( in the model) of the
F3SJ.When a spatter-proof cover is attached, operating range of
F3SJ is reduced by about 10%.Spatter-proof cover with 1970 or
higher of  in the model is divided into 2 in combination to
use.
