122
Chapter6 Accessories (Sold Separately)
F3SJ-A
User’s Manual
Appendix

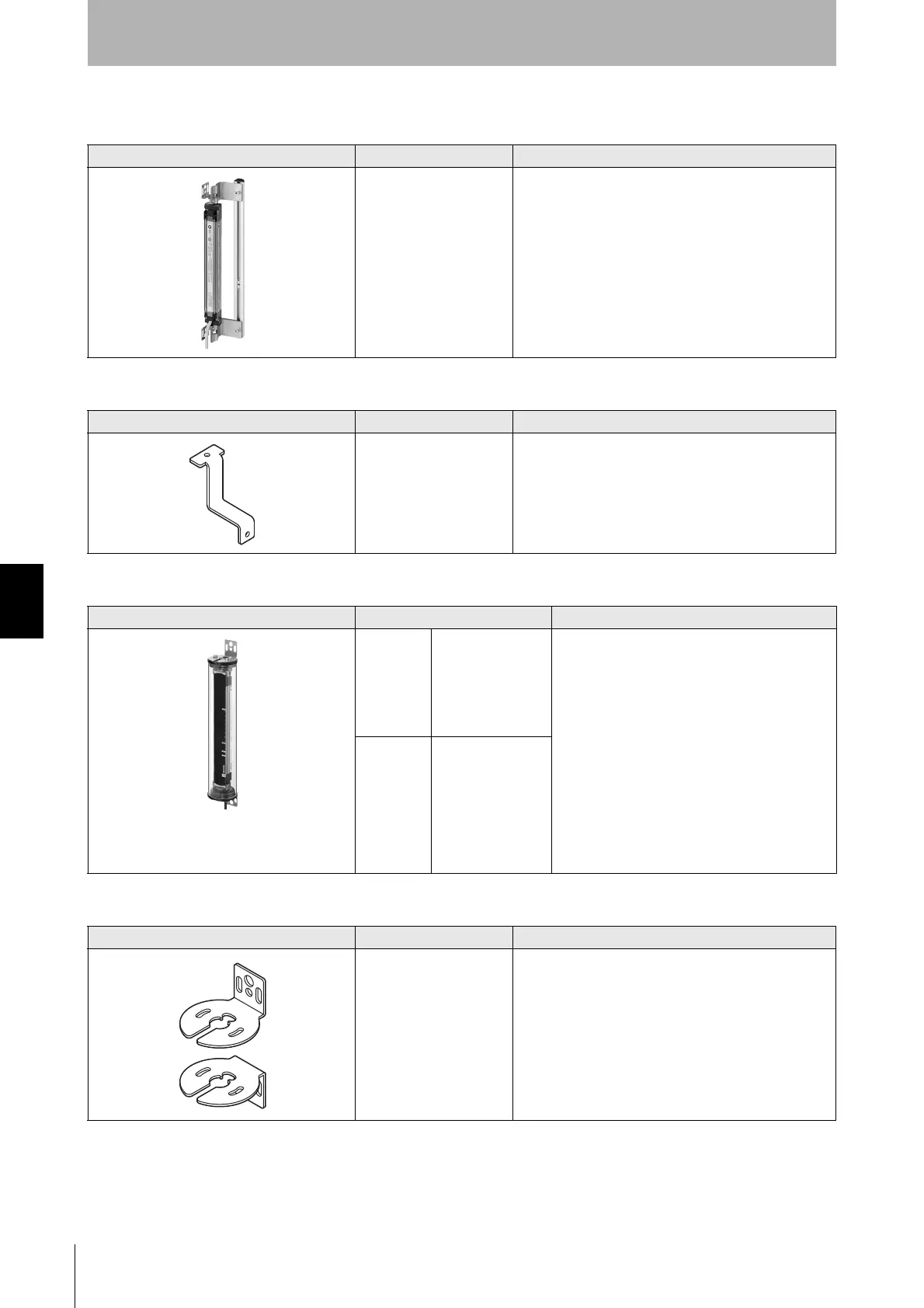

Protect bar (2 sets, common for emitter/receiver)
Protection bracket for protect bar (4)
Environment-resistant case
Back-mounting bracket for environment-resistant case
Appearance Model name Note
F39-PJ Two protect bars are provided in a set (common for
emitter/receiver). For side mounting of F3SJ with a width
of 1001mm or wider, you must purchase protection
bracket (4) for protect bar (F39-PJ-MS).
Appearance Model name Note
F39-PJ-MS Intermediate mounting bracket for side mounting using a
protect bar. You need to purchase 1 for an F3SJ with a
protected height of 1001 to 2000mm and 2 for an F3SJ
with a protected height of 2009 to 2500mm.
Appearance Model name Note
For emitter F39-EJ-L One environment-resistant case is provided in a
set.
Mounting bracket is not included.
You must purchase optional back-mounting
bracket (F39-EJ-R) or side-mounting bracket
(F39-EJ-S).
When environment-resistant case is used,
operating range is from 0.2 to 7m (protective
height of 1649mm or less) and from 0.2 to 5m
(protective height of 1655mm or more).
If protective height of F3SJ is 600mm or more,
only vertical mounting as shown left is available.
A protective structure complies to
IP67(IEC60529).
For receiver F39-EJ-D
Appearance Model name Note
F39-EJ-R 2 brackets per set
