124

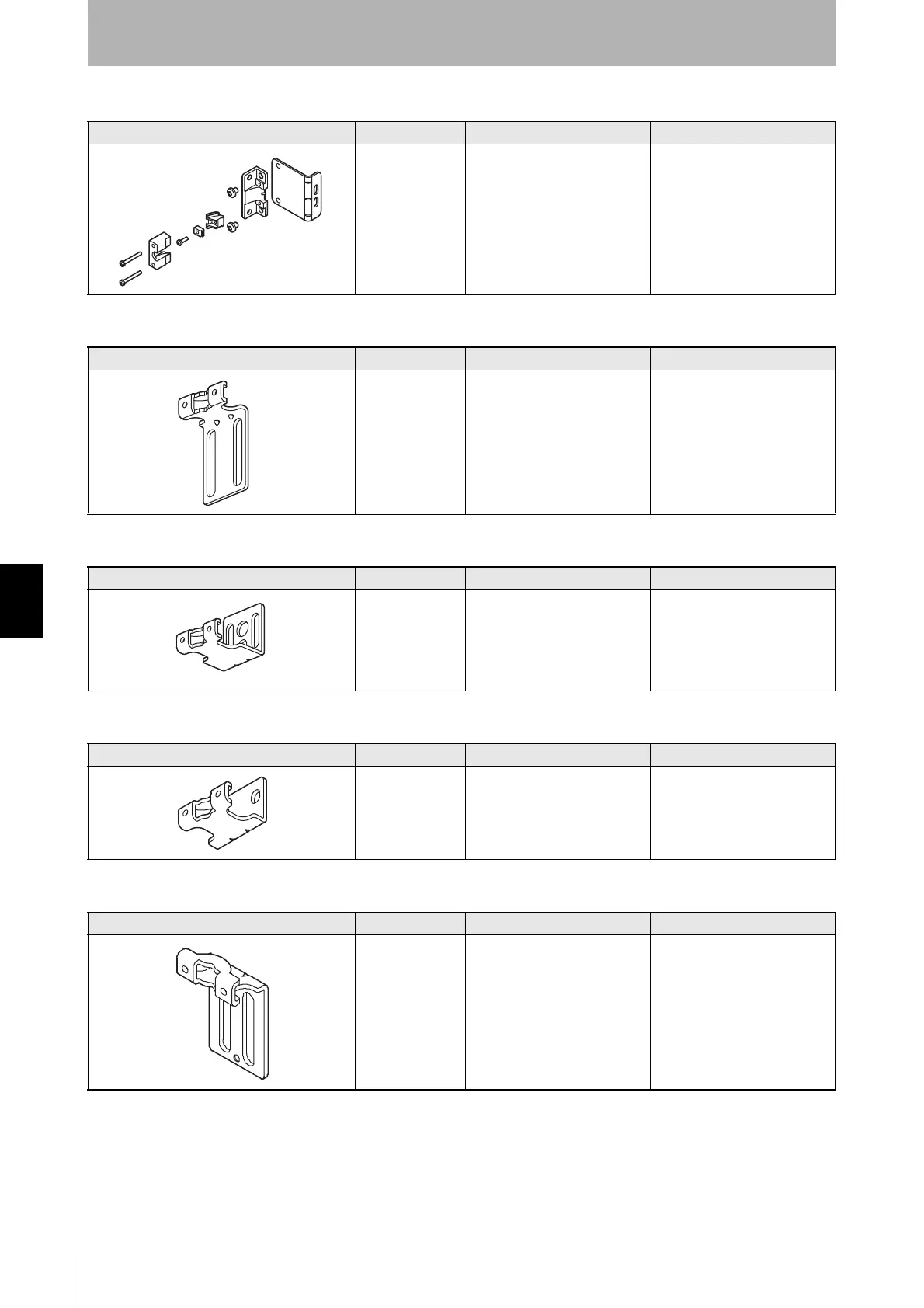

Chapter6 Accessories (Sold Separately)
F3SJ-A
User’s Manual
Appendix
Free-location mounting bracket (also used as standard mounting bracket)
Top/bottom mounting bracket B
Mounting bracket for F3SN replacement
Space-saving mounting bracket
Top/bottom mounting bracket C
Appearance Model name Application Note
F39-LJ3
Brackets for mounting in any
location without using top/
bottom mounting brackets.
Side mounting and backside
mounting are possible.
2 brackets per set
Same as the intermediate
mounting brackets included for
F3SJ with protective height
larger than 595mm.
Appearance Model name Application Note
F39-LJ4
Mounting bracket used when
replacing existing zone sensors
with the F3SJ. Suitable for
mounting hole pitch of 18 to
20mm.
2 brackets for emitter, 2
brackets for receiver (4 brackets
per set)
(Use in combination with top/
bottom mounting brackets)
Appearance Model name Application Note
F39-LJ5
Mounting bracket used when an
F3SN with protective height of
300mm or less is replaced by
an F3SJ.
2 brackets for emitter, 2
brackets for receiver (4 brackets
per set)
(Use in combination with top/
bottom mounting brackets)
Appearance Model name Application Note
F39-LJ8
Brackets that can save
mounting space for top and
bottom
2 brackets for an emitter, 2 for a
receiver (4 brackets per set)
Appearance Model name Application Note
F39-LJ11 Mounting bracket used when
replacing existing area sensors
with the F3SJ. Suitable for
mounting hole pitch of 12 to
14mm.
2 brackets for emitter, 2
brackets for receiver (4 brackets
per set)
