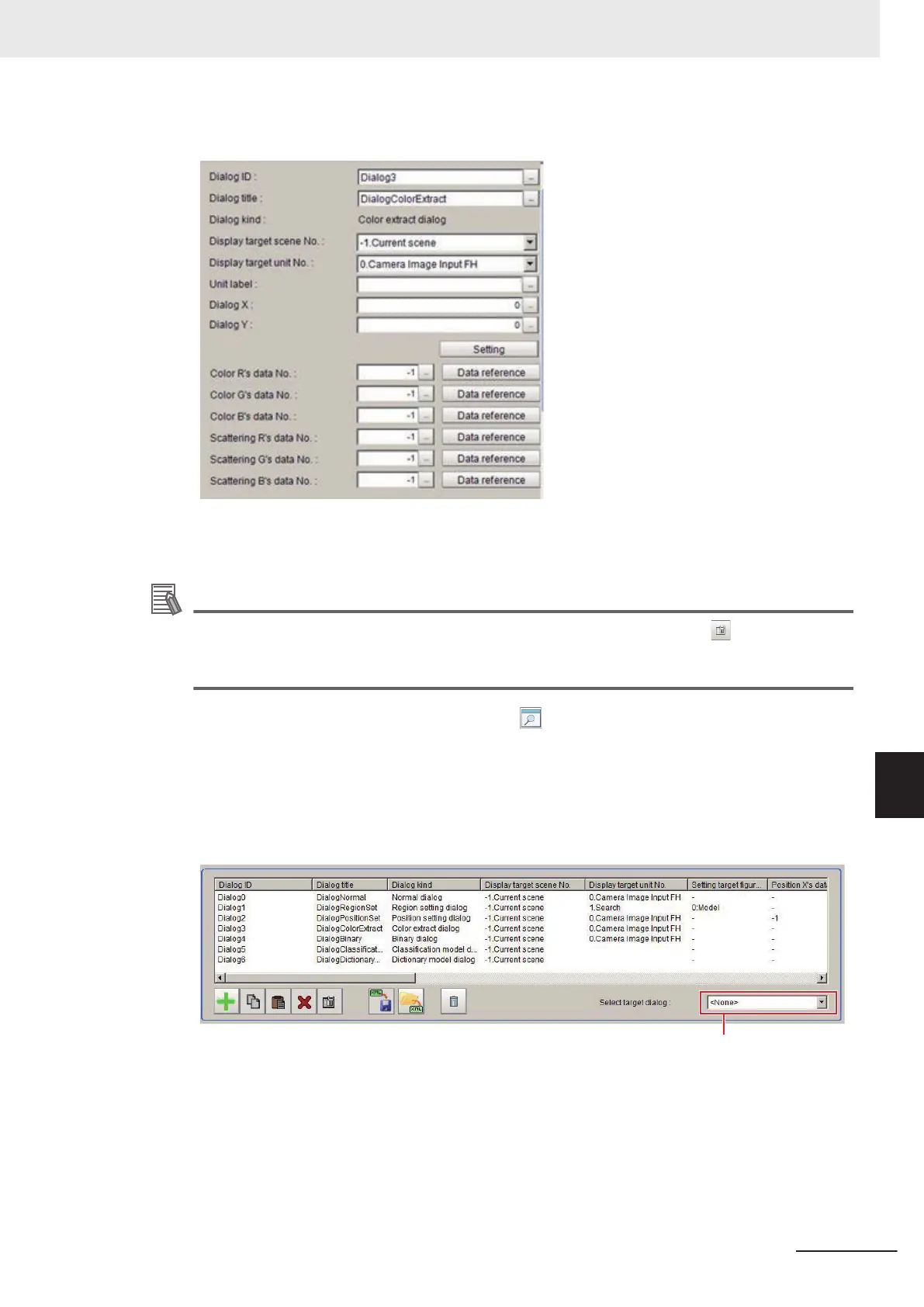

Example: Dialog Box Properties Display Area for Color Extract Processing Item
Refer to Settings in the Dialog Box Properties Display Area on page 8 - 68 for details on indi-
vidual settings.
Additional Information
If Dialog kind is set to Normal dialog, click the Edit normal dialog button ( ) to edit the dia-
log box
For details, refer to Editing a Normal Dialog Box on page 8 - 70.
5 Edit the settings, and click the preview button ( ) as necessary to confirm the edited dialog
box.
6 Use the Select dialog list to specify the ID of the dialog box to open.
To open the dialog box that you specified in the Select dialog, select Custom dialog from the
Tool menu.
Select the target dialog box.
7
When you have finished editing, click the OK button to exit the List of Dialog Box Display Area.
8
Click Data save on the Main Window to save the settings.
8 Setting Windows
8 - 67
FH/FHV Series Vision System User’s Manual (Z365-E1)
8-4 Editing contents are not reflected when you confirm the Sensor Controller after edit a layout by remote control
[Custom Dialog Tool]
8
8-4-2 Custom Dialog Tool
