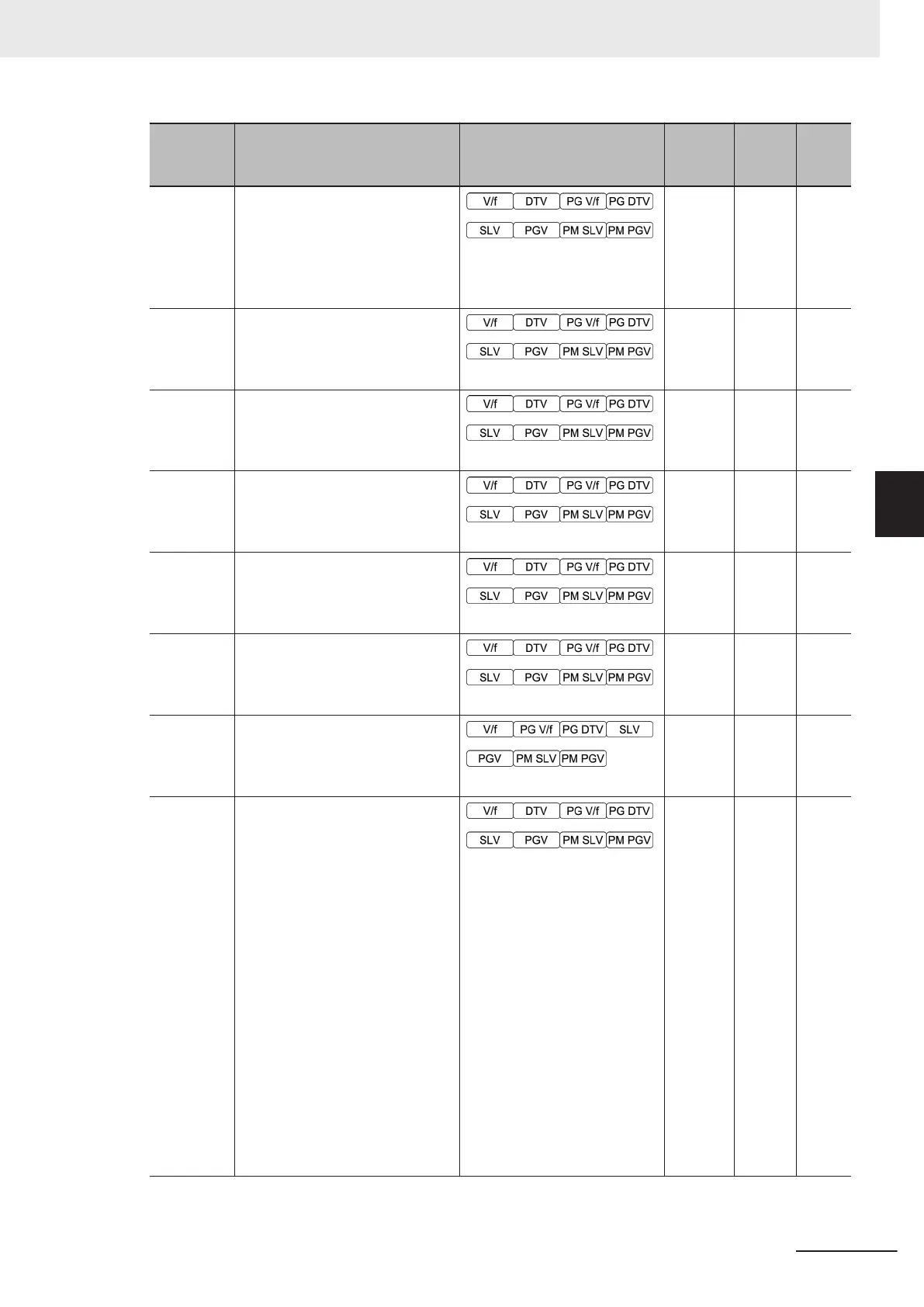

Omron M1 Series - Page 169

Parameter
No.
Function name Monitor or data range
Default
data
Setting
during
RUN
Unit
M06
Output Frequency 1 without Slip
Compensation
-32768 to 32767
+20000 or -20000 = maximum
output frequency
0 - -
M07 Torque Value
-327.68 to 327.67
0 - %
M08 Torque Current Value
-327.68 to 327.67
0 - %
M09
Output Frequency without Slip
Compensation
0.00 to 655.35 Hz
0 - Hz
M10 Input Power
0.00 to 399.99
0 - %
M11 Output Current Monitor
0.00 to 399.99 %
0 - %
M12 Output Voltage Monitor
0.0 to 1000.0 V
0 - V
M13 Operation Command at Final
Bit15: RST
Bit14: DI7
Bit13: DI6
Bit12: -
Bit11: EN
Bit10: -
Bit9: -
Bit8: -
Bit7: -
Bit6: DI5
Bit5: DI4
Bit4: DI3
Bit3: DI2
Bit2: DI1
Bit1: REV
Bit0: FWD
0 -
-
4 Parameter List
4-3
M1 Series Standard Type User's Manual (I669)
4-1 List of Monitors by Group
4
4-1-1 Parameter M (Monitor 1)
