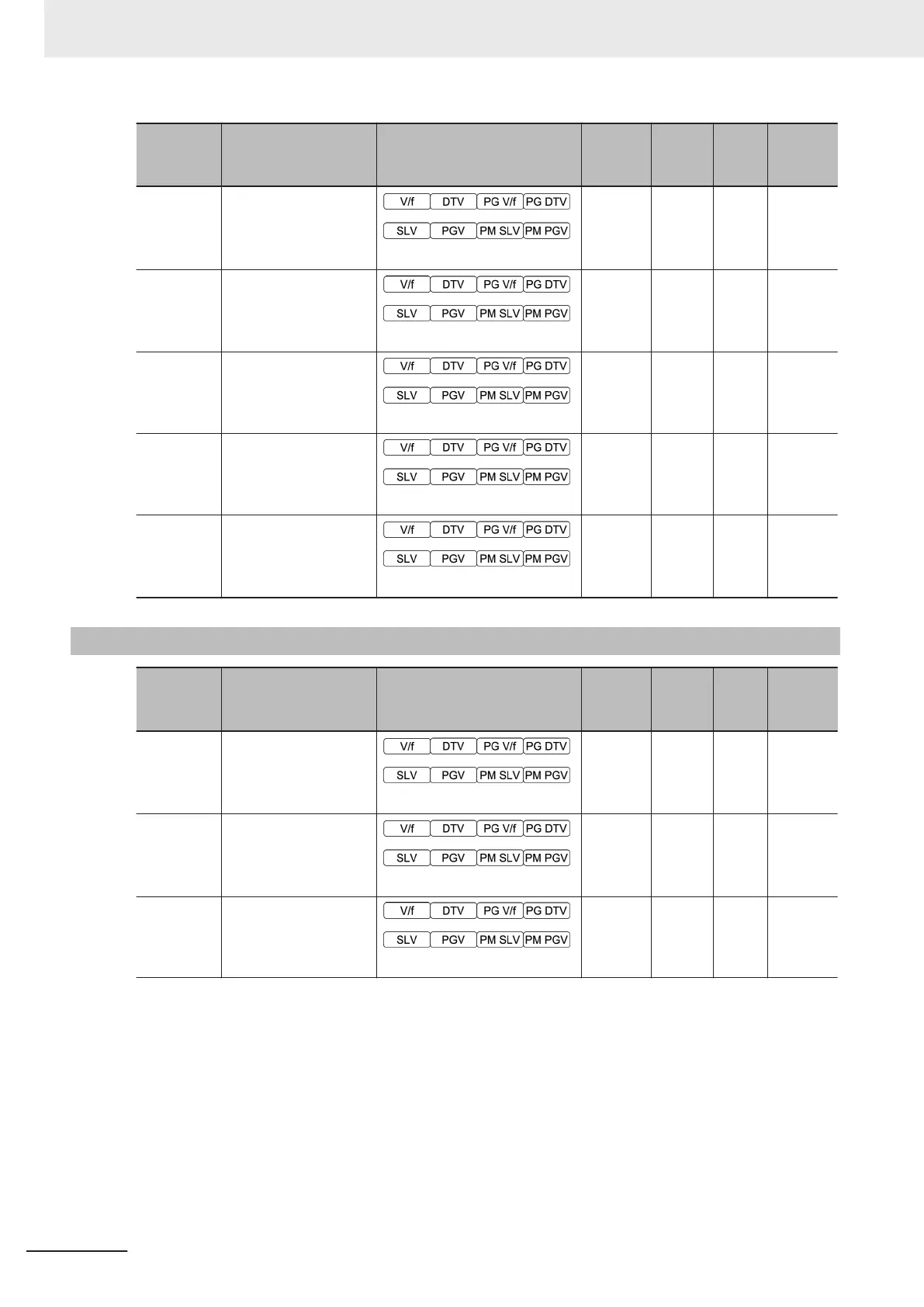

Omron M1 Series User Manual

Parameter
No.
Function name Monitor or Data Range
Default
data
Setting
during
RUN
Unit Page
C71
Input Terminal [AI2]
Analog Input Adjust-
ment Maximum Scale
(AIV)
-999.00 to 0.00 to 9990.00
100 - -
page
7-123
C72
Input Terminal [AI2]
Analog Input Adjust-
ment Minimum Scale
(AIV)
-999.00 to 0.00 to 9990.00
0 - -
page
7-123
C89
Set-point Factor Nu-
merator via Communi-
cation
-32768 to 32767
1
Availa-
ble
-
page
8-87
C90
Set-point Factor De-
nominator via Commu-
nication
-32768 to 32767
1
Availa-
ble
-
page
8-87
C99
1st Frequency Refer-
ence/1st Multi-step
Frequency Reference
0
0.0 to 590.00 Hz
0.00
Availa-
ble
Hz
page
5-27
4-2-4
Parameter P (Motor 1 Parameter)
Parameter
No.
Function name Monitor or Data Range
Default
data
Setting
during
RUN
Unit Page
P01
1st Motor Pole Num-
ber
2 to 128 poles
4 - Pole
page
5-19
page
6-4
P02 1st Motor Capacity
0.01 to 1000 kW
5.50 - kW
page
5-19
page
6-4
P03
1st Motor Rated Cur-
rent
0.00 to 500.0 A
21 - A
page
6-4
4 Parameter List
4-112
M1 Series Standard Type User's Manual (I669)

Omron M1 Series Specifications

General

Input Voltage	200-240V AC
Output Voltage	3-phase 200 to 240 VAC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus RTU
Enclosure	IP20
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
Frequency Range	0.5-400 Hz
Storage Temperature	-20°C to +65°C
