Omron M1 Series User Manual

5-6

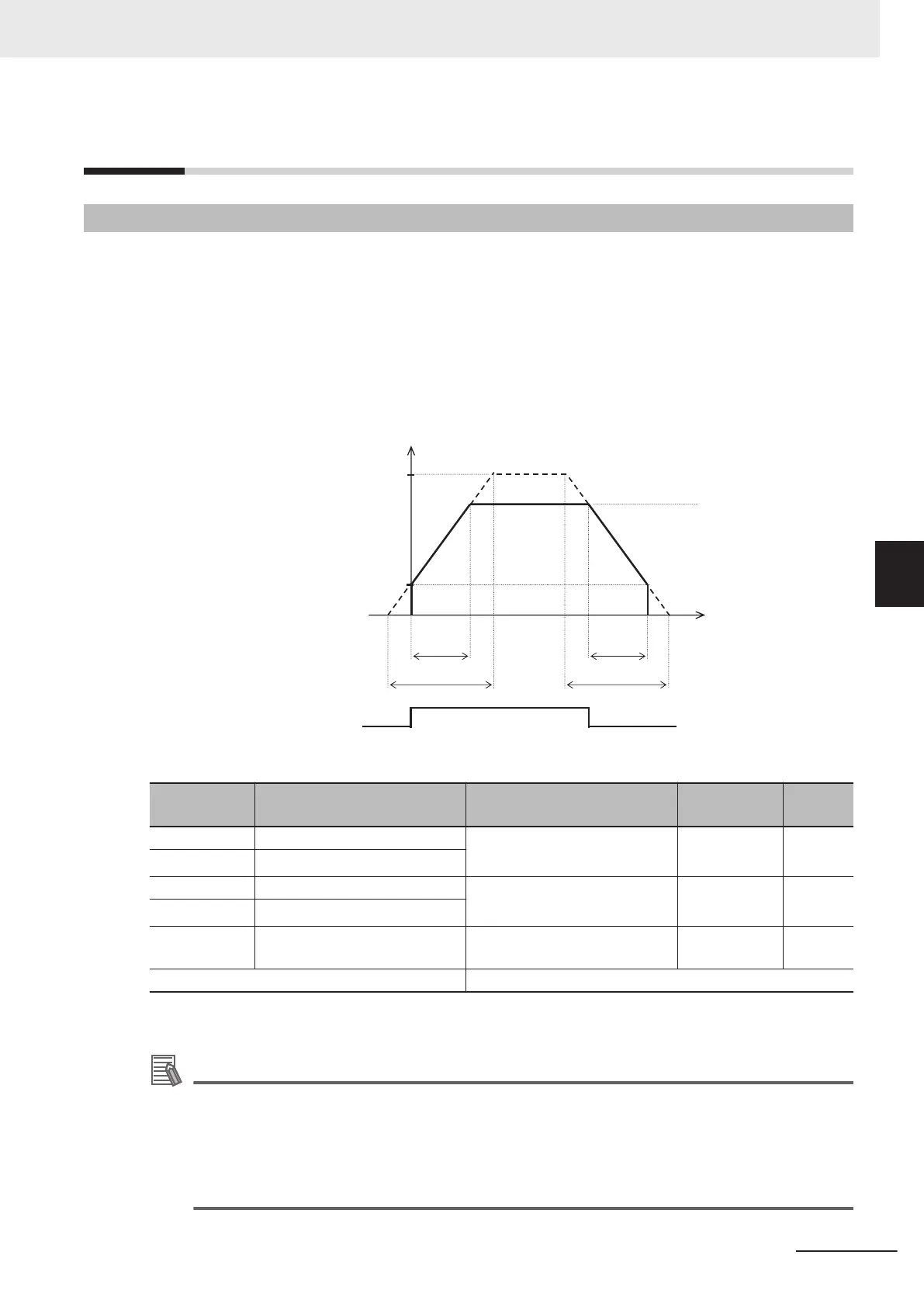

Acceleration/deceleration time
5-6-1
Acceleration/Deceleration Time Setting
• Set the motor acceleration/deceleration time.
• The set time here is the acceleration/deceleration time from 0 Hz to the maximum frequency. The
actual acceleration/deceleration time varies depending on the frequency reference value.
• This parameter is for setting the time constant of the primary delay filter with respect to the output
frequency during acceleration/deceleration when V/f control (F42/A14 = 0 to 3) is selected. Set this
parameter when an overshoot or undershoot occurs when the frequency arrives at the target fre-
quency or the rotation of the motor stops and this causes mechanical problems. Setting a large val-
ue stabilizes the output frequency but worsens response.
F03/A01
F23/A12
F07/E10
F08/E11
Output frequency
Frequency Reference
Time
Maximum Output
Frequency
Starting Frequency
RUN command
FW input
Actual
acceleration
time
Actual
deceleration
time
Stop Frequency
F25/A63
Parameter
No.
Function name Data Default data Unit
F07 1st Acceleration Time 1
0.00 to 6000 s 6.00 s
E10
2nd Acceleration Time 1
*1
F08 1st Deceleration Time 1
0.00 to 6000 s 6.00 s
E11
2nd Deceleration Time 1
*1
d86
Acc/Dec Output Frequency Fil-
ter
0.000 to 5.000 s 0.000 s
Related functions F03, A01, E01 to E05, E98, E99
*1. To enable switching to the 1st and 2nd control, allocate “12: SET (2nd control)” to either of input terminal
[DI1] to [DI7].
Additional Information
When a short deceleration time is set, the regenerative amount that is fed back at deceleration
increases. When the regenerative amount exceeds the allowable capacity of the inverter
, either
the deceleration time is extended by the setting of Anti-regenerative Control Function Selection
(H69), or overvoltage (OU2) is detected. T
o shorten the deceleration time, use the regenerative
braking function. For details on the regenerative braking function, refer to 5-12
Regenerative
Braking Function on page 5-75.
5 Basic Settings
5-39
M1 Series Standard Type User's Manual (I669)
5-6 Acceleration/deceleration time
5
5-6-1 Acceleration/Deceleration Time Setting
