1-3-2

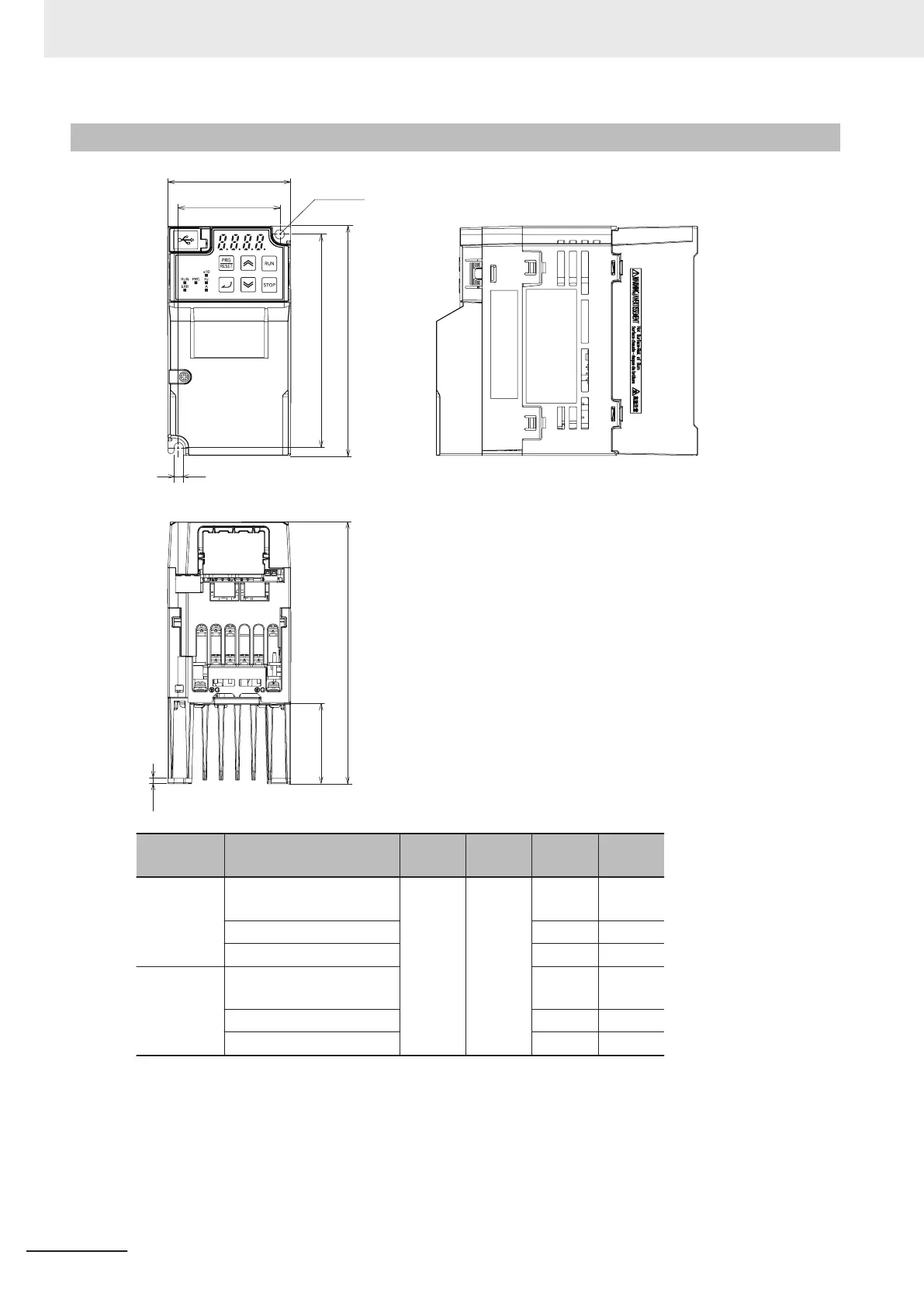

External Dimensions

68 (W)

2xj5.2

127 (H)

118

5.2

Power

supply

Model W [mm] H [mm] D [mm]

[mm]

Single-

phase 200

3G3M1-AB001

3G3M1-AB002

68 127

98 8

3G3M1-AB004 120 23

3G3M1-AB007 165 48

Three-

phase 200

3G3M1-A2001

3G3M1-A2002

98 8

3G3M1-A2004 113 23

3G3M1-A2007 145 48

1 Overview

1-18

M1 Series Standard Type User's Manual (I669)

Questions and Answers:

Need help?

Do you have a question about the Omron M1 Series and is the answer not in the manual?

General

Input Voltage	200-240V AC
Output Voltage	3-phase 200 to 240 VAC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus RTU
Enclosure	IP20
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
Frequency Range	0.5-400 Hz
Storage Temperature	-20°C to +65°C
