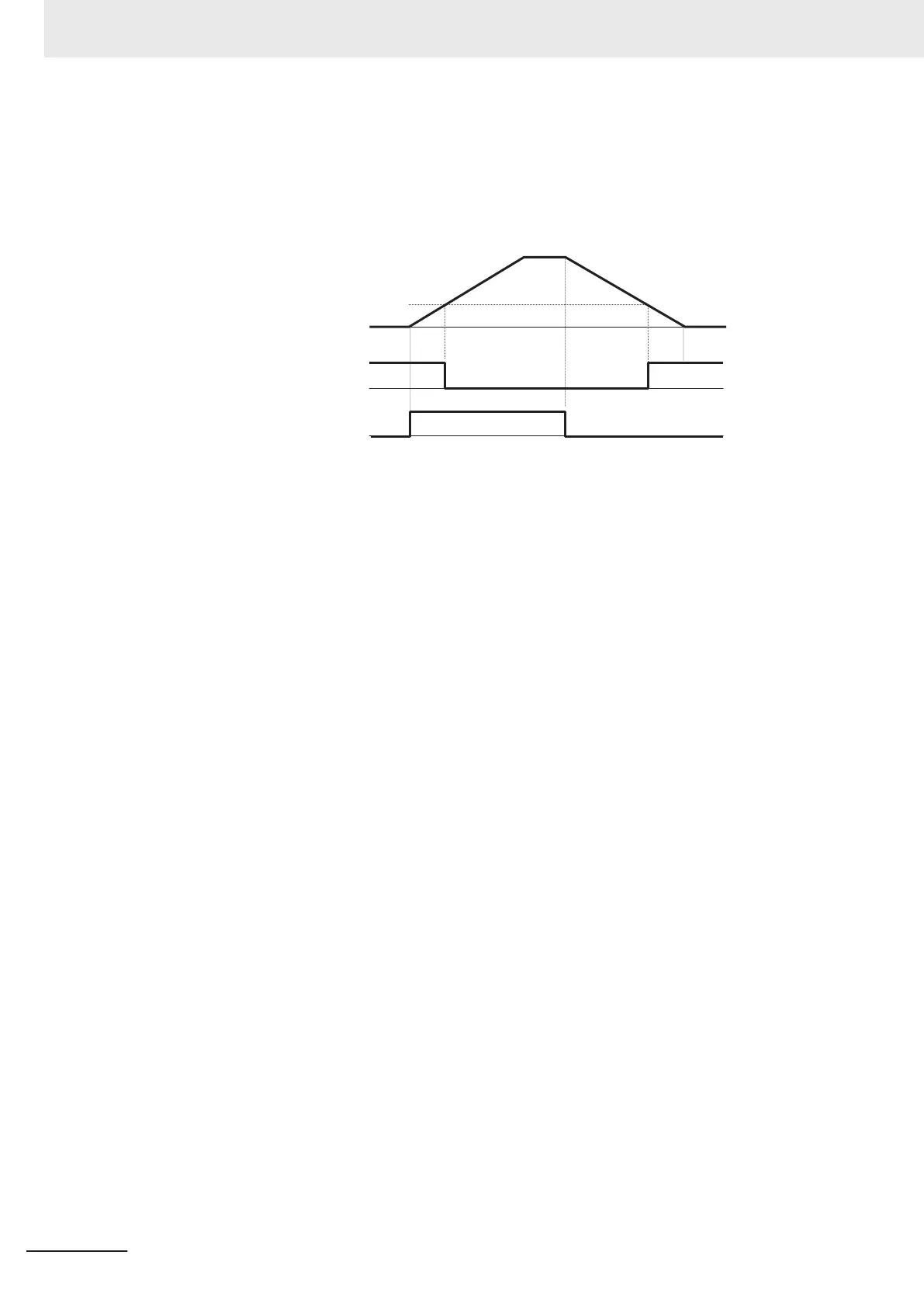

This signal is output when the output frequency of the inverter falls below the 0Hz Detection Output
Detection Level (ZS) (E199) also when the RUN command is OFF.
This signal turns ON if the speed command value (output frequency) or the speed detection val-
ue is less than the 0Hz Detection Output Detection Level (E199), and turns OFF if it is at E199 or
higher regardless of the alarm status or free-run after the power is turned ON.
E199
ON ON
ON
Outpu
t frequency
ZS outpu
t
R
UN command
5 Basic Settings
5-72
M1 Series Standard Type User's Manual (I669)
