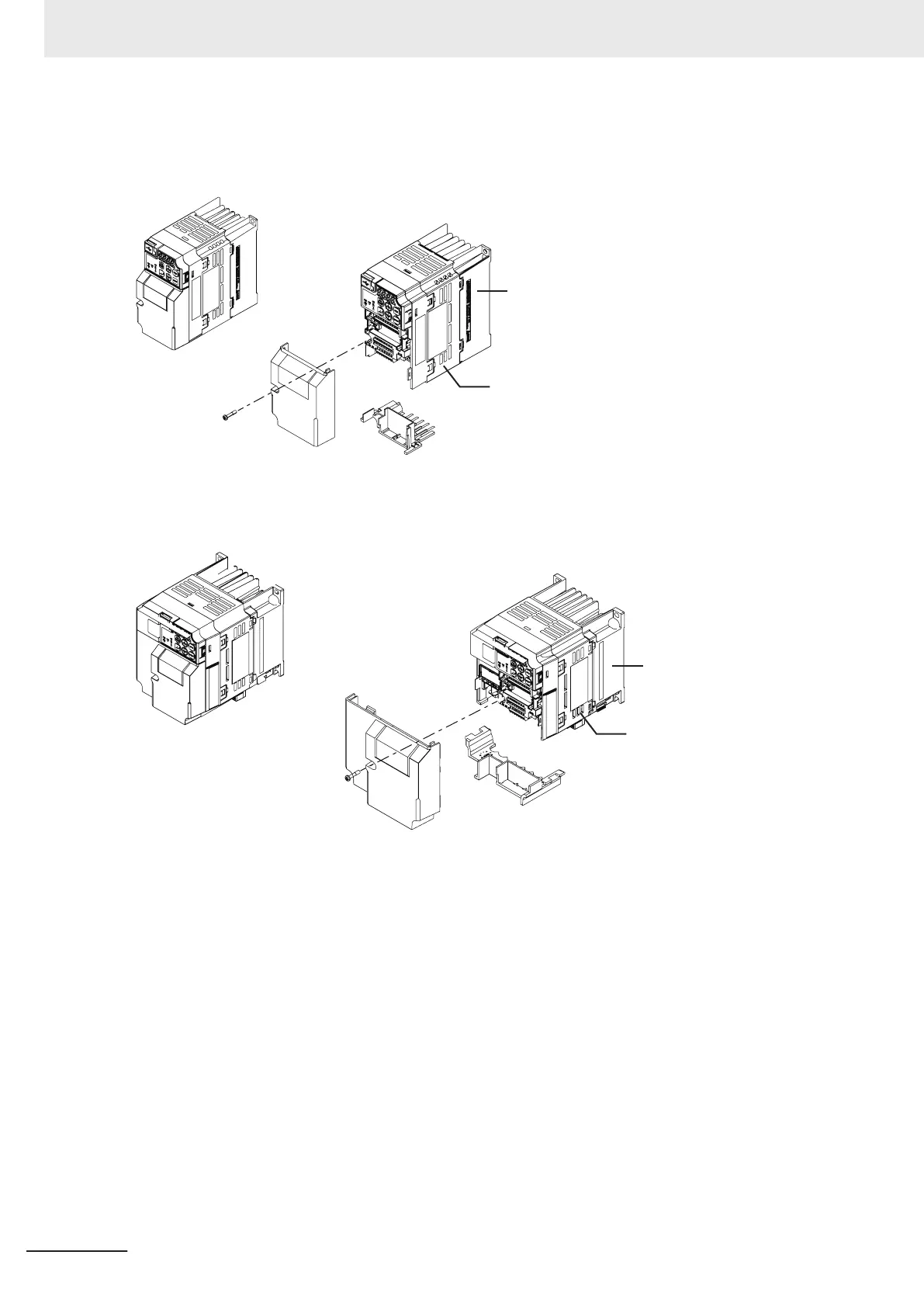

The figures below show the components of each Inverter model.
Single-phase 200 V, 0.1/0.2/0.4/0.75 kW
Three-phase 200 V, 0.1/0.2/0.4/0.75 kW
(4)
(3)
(6)
Single-phase 200 V, 1.5 kW
Three-phase 200 V, 1.5/2.2 kW
Three-phase 400 V, 0.4/0.75/1.5/2.2 kW
(5)
(6)
(3)
(4)
(1) Cooling Fan Cover (4) Inverter Case
(2) Cooling Fan (5) Surface cover (Terminal block cover)
(3) Cooling Fin (6) Surface cover (Backing plate)
Note The single-phase 200-V, 1.5-kW and three-phase 200-V, 1.5-kW models have a cooling fan.
The three-phase 400-V, 0.4/0.75/1.5 kW model, however, has no cooling fan.
