When a stop is made at the target position with J96 bit 6 = 1, the brake release signal “BRK” is not
turned ON even if the time set at Brake Control Brake-applied Timer (J72) elapses if the RUN com-
mand is ON.
When the brake is applied during position control, the motor cannot rotate even if there exists position
error. For this reason, the integral term accumulates which sometimes causes an overload trip to oc-
cur
. When ASR integral term cancel “P-SEL” allocated to a multifunction input terminal is turned ON,
the integral term of the speed controller is canceled and P operation is performed.
Parameter
No.
Function name Data
J96
Brake Control Operation
Selection
bit 6 = 0: Position control stopped, brake signal OFF (brake applied)
bit 6 = 1: Position control stopped, brake signal ON (brake released)
E01 to E05,
E98, E99
Input Terminal [DI1] Func-
tion Selection to Input T
er-
minal [DI7] Function Se-
lection
119: P-SEL (ASR integral term cancellation)
Output frequency
Output current
RUN command
“POS-SET”
Brake signal “BRK”
J69 Brake Control
Brake-release Frequency
J68 Brake Control
Brake-release Current
DC injection braking
J96 bit6 0: Brake signal ON during position control stop
1: Brake signal released during position control stop

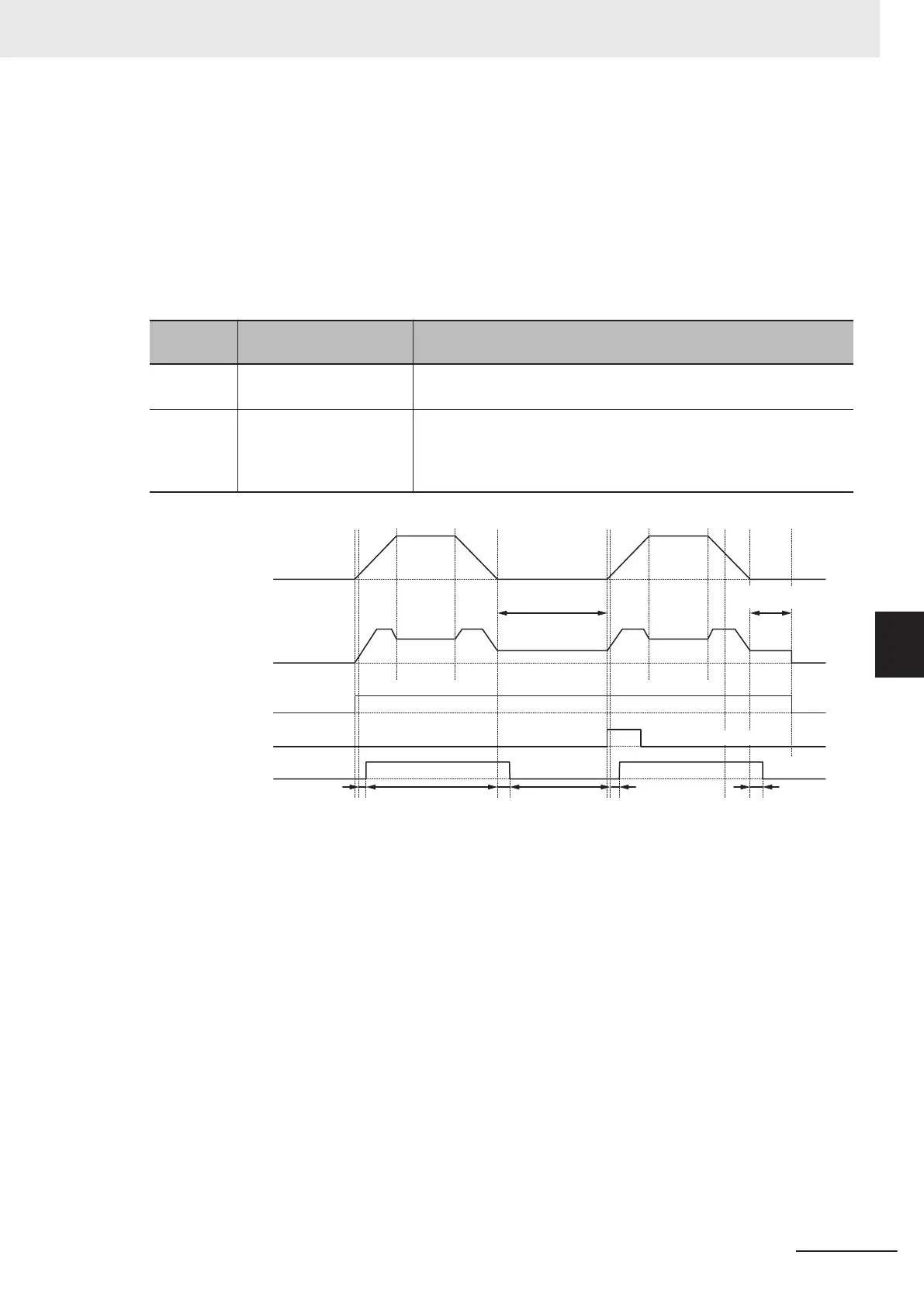

V/f control J96 bit 6 = 0 Operation time chart
OFF
OFF
OFF
OFFON
ON OFF
OFFON OFFON
DC injection
braking
J70: Brake Control
Brake-release Timer
J72: Brake Control
Brake-applied Timer
J70: Brake Control
Brake-release Timer
J72: Brake Control
Brake-applied Timer
6 Vector Control and Applied Functions
6-59
M1 Series Standard Type User's Manual (I669)
6-7 Position Control
6
6-7-15 Brake Control during Position Control
